Low power 2 input AND gate,74AUP1G08XC5G Replace 74AUP1G08GW
74AUP1G08XC5G.pdf優勢替代
FEATURES
? Wide supply voltage range from 0.8 V to 3.6 V
? CMOS low power dissipation
? High noise immunity
? Overvoltage tolerant inputs to 3.6 V
? Low noise overshoot and undershoot < 10 % of VCC
? IOFF circuitry provides partial
Power-down mode operation
? Latch-up performance exceeds
100 mA per JESD 78 Class II Level B
? Low static power consumption;
ICC = 0.9 μA (maximum)
? Complies with JEDEC standards:
? JESD8-12 (0.8 V to 1.3 V)
? JESD8-11 (0.9 V to 1.65 V)
? JESD8-7 (1.65 V to 1.95 V)
? JESD8-5 (2.3 V to 2.7 V)
? JESD8C (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F Class 3A exceeds 5000 V
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125 °C

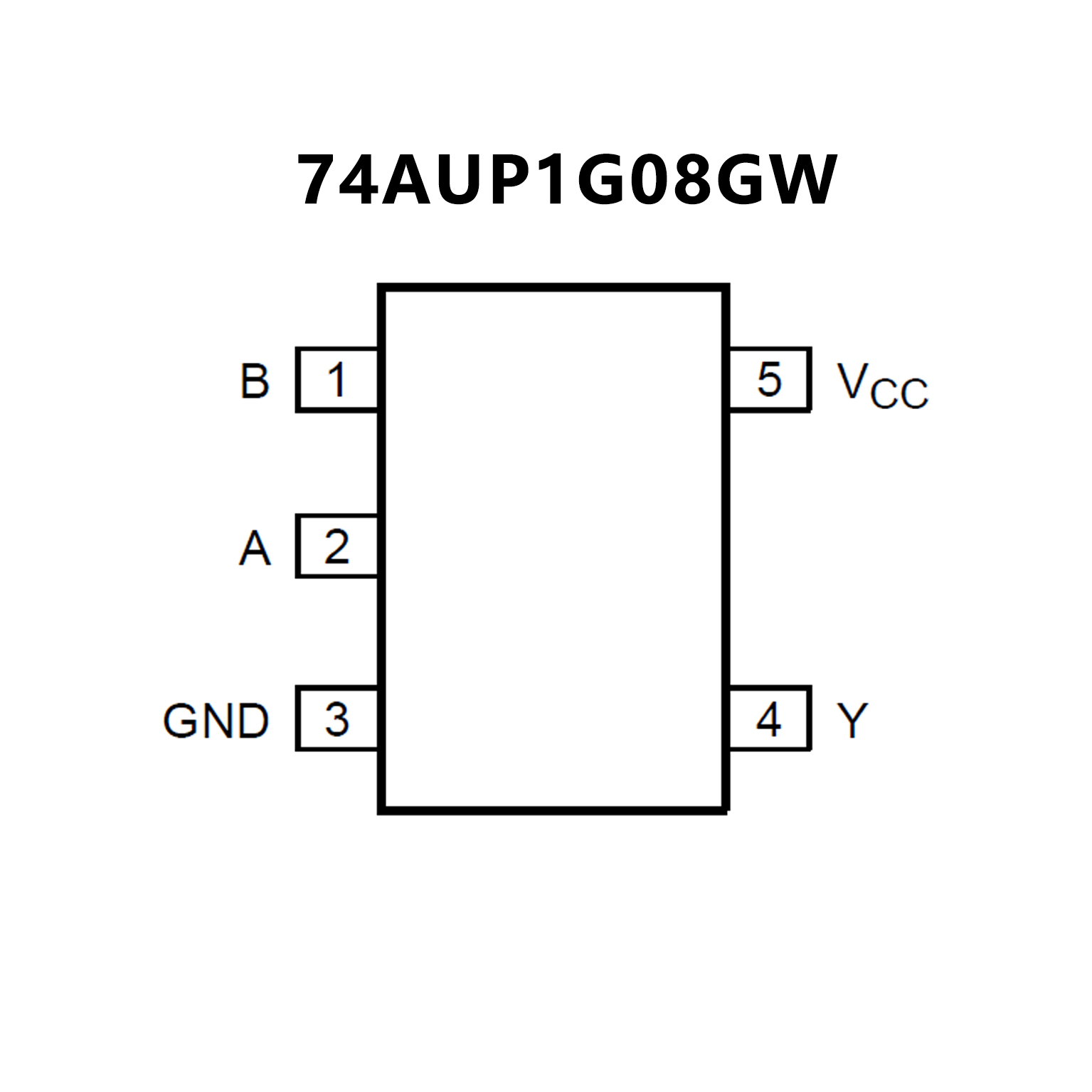

PIN CONFIGUTION
