1 Bit Unidirectional Voltage Level Translator, 74AUP1T34XC5G Replace SN74AUP1T34
74AUP1T34XC5G.pdf優勢替代
FEATURES
? Wide Operating VCC Range of 0.9 V to 3.6 V
? Balanced Propagation Delays: tPLH = tPHL
(1.8-V to 3.3-V Translation Typical)
? Low Static-Power Consumption: Maximum of 5-μA ICC
? ±6-mA Output Drive at 3 V
? Ioff Supports Partial Power-Down-Mode Operation
? VCC Isolation Feature – If VCCA Input Is at GND,
B Port Is in the High-Impedance state
? Input Hysteresis Allows Slow Input Transition
and Better Switching Noise Immunity at Input
? ESD Protection Exceeds JESD 22
? 5000-V Human-Body Model (A114-A)
? Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II

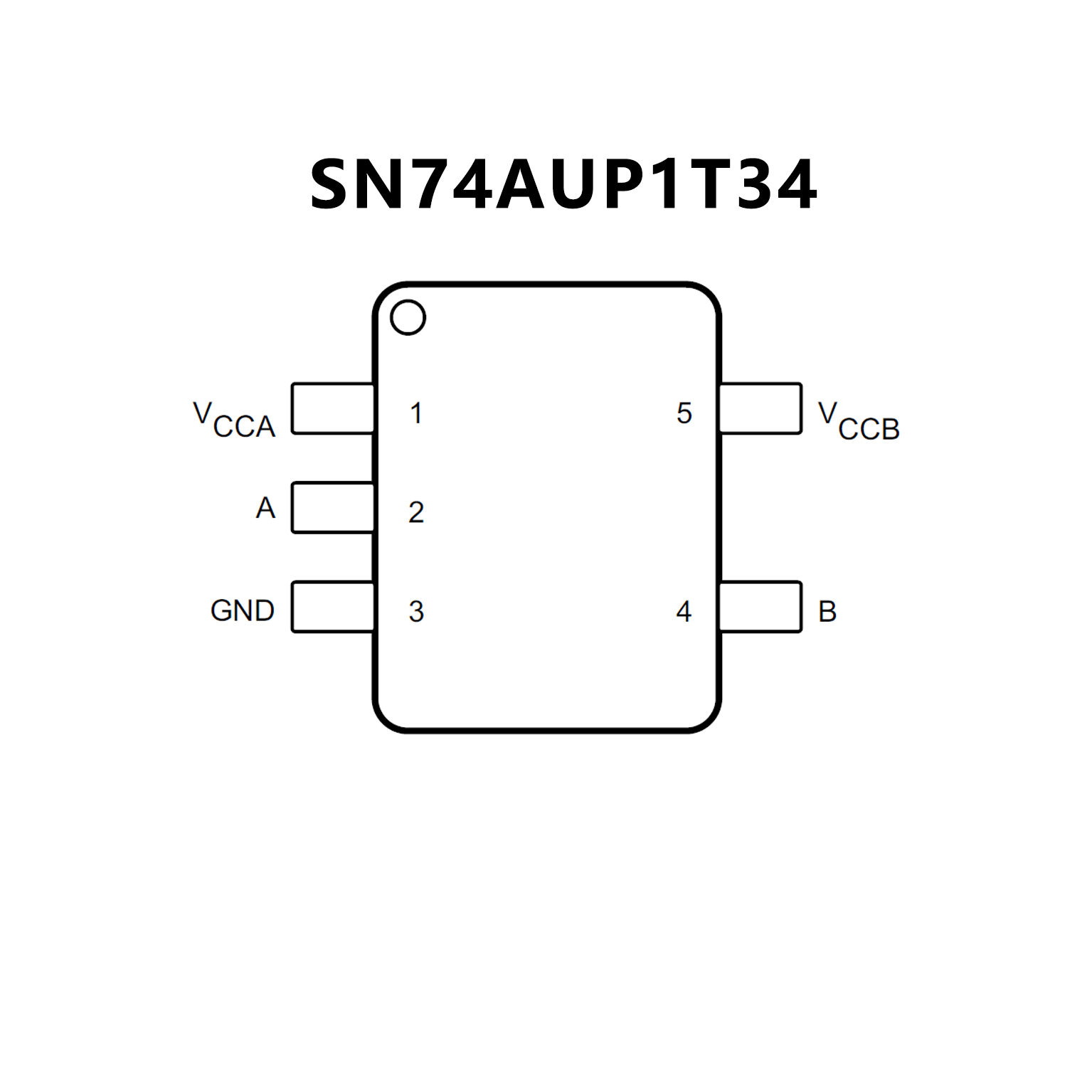

PIN CONFIGUTION
