8-Bit Dual-Supply Translating Transceiver with Configurable Voltage Translation and 3-State Outputs, 74AVC8T245Q P2P 74AVC8T245PW-Q100.

74AVC8T245Q

74AVC8T245Q.pdf

FEATURES

? AEC-Q100 Qualified for Automotive Applications

Device Temperature Grade 1

TA = -40℃ to +125℃

? VCCA Supply Voltage Range: 0.8V to 3.6V

? VCCB Supply Voltage Range: 0.8V to 3.6V

? Inputs Accept Voltages up to 3.6V

? +12mA/-12mA Output Current

? Data Rates:

380Mbps (≥ 1.8V to 3.3V Translation)

260Mbps (≥ 1.1V to 3.3V Translation)

260Mbps (≥ 1.1V to 2.5V Translation)

210Mbps (≥ 1.1V to 1.8V Translation)

150Mbps (≥ 1.1V to 1.5V Translation)

100Mbps (≥ 1.1V to 1.2V Translation)

? Outputs in High-Impedance State when VCCA or

VCCB = 0V

? -40℃ to +125℃ Operating Temperature Range

? Available in a Green TQFN-3.5×5.5-24AL Package

PIN CONFIGUTION

優(yōu)勢(shì)替代

74AVC8T245PW-Q100

74AVC8T245PW-Q100.pdf

No.14114

FEATURES

? Automotive product qualification in accordance

with AEC-Q100 (Grade 1)

? Specified from -40°C to +85°C and from -40°C to +125°C

? Wide supply voltage range:

V_CC(A): 0.8V to 3.6V; V_CC(B): 0.8V to 3.6V

? Complies with JEDEC standards:

? JESD8-12 (0.8 V to 1.3 V)

? JESD8-11 (0.9 V to 1.65 V)

? JESD8-7 (1.2 V to 1.95 V)

? JESD8-5 (1.8 V to 2.7 V)

? JESD8-B (2.7 V to 3.6 V)

? ESD protection:

? MIL-STD-883, method 3015 class 3B exceeds 8000V

? HBM JESD22-A114E class 3B exceeds 8000V

? MM JESD22-A115-A exceeds 200V (C= 200pF, R= 0Ω)

? Maximum data rates:

? 380 Mbit/s (≥ 1.8 V to 3.3 V translation)

? 260 Mbit/s (≥ 1.1 V to 3.3 V translation)

? 260 Mbit/s (≥ 1.1 V to 2.5 V translation)

? 210 Mbit/s (≥ 1.1 V to 1.8 V translation)

? 150 Mbit/s (≥ 1.1 V to 1.5 V translation)

? 100 Mbit/s (≥ 1.1 V to 1.2 V translation)

? Suspend mode

? Latch-up performance exceeds 100 mA per JESD 78 Class II

? Inputs accept voltages up to 3.6 V

? IOFF circuitry provides partial Power-down mode operation

? Multiple package options

? DHVQFN package with Side-Wettable Flanks enabling

Automatic Optical Inspection (AOI) of solder joints

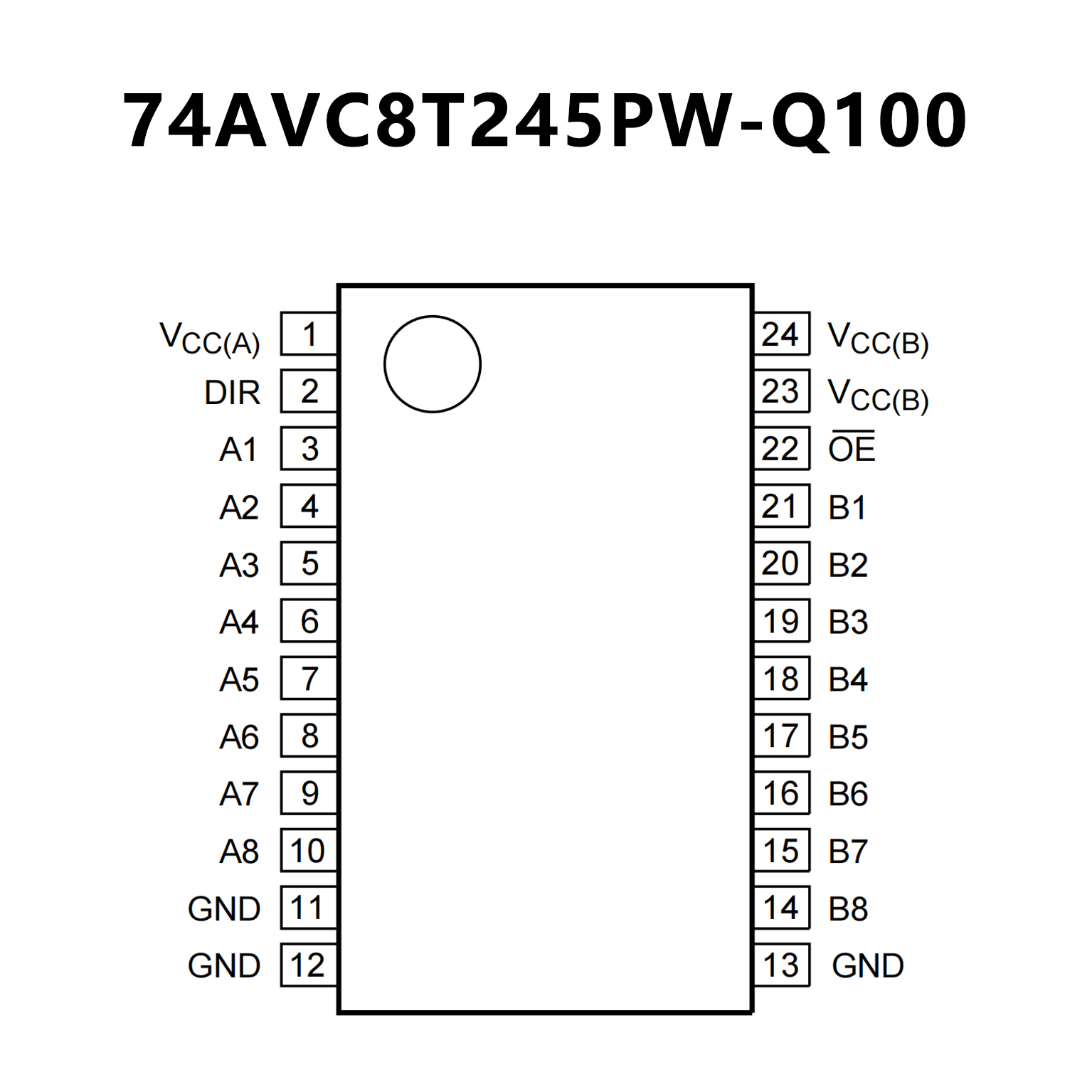

PIN CONFIGUTION
