Current Limited IC, VIN 2.4V~5.5V, ILIM 1.5A, Active High, SOT23-5, ACP12522 P2P FP6861C.
ACP12522
ACP12522.pdf
ACP12522.pdfFEATURES
? Input Voltage Range: 2.5V to 5.5V
? 2.1A Accurate Current Limiting Threshold
? Fast Transient Response
? Max 35μA Quiescent Current
? Low 90mΩ Typical RDS(ON)
? Reverse Current Blocking
? Thermal Shutdown and Over-Current Protection
? Fault Report with 12ms Typical Blanking Time
? -40 to 85°C Operation Temperature Range

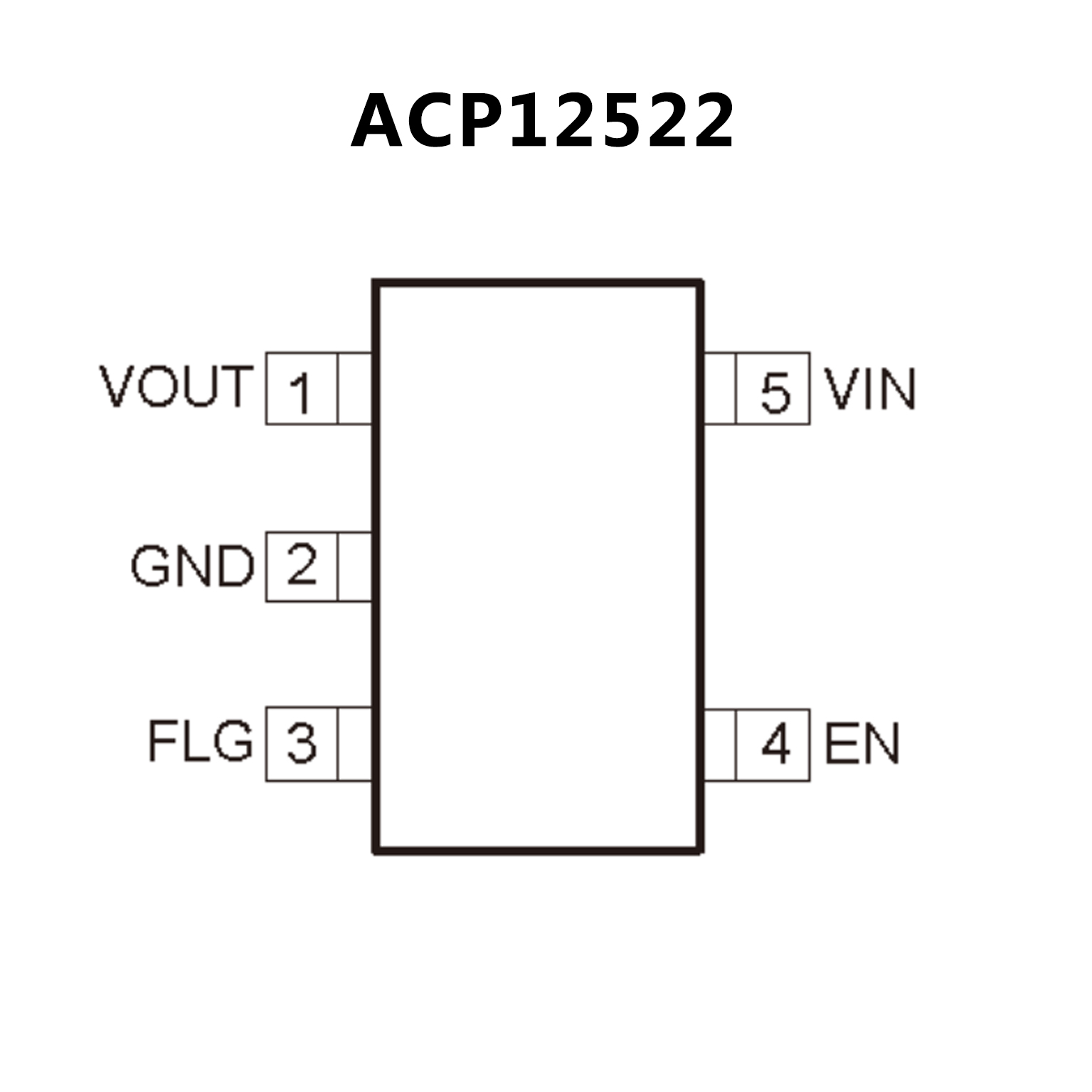

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Compliant to USB Specifications
? Built-In Low RDS(ON) N-Channel MOSFET
? Output can be Forced Higher than Input (Off-State)
? Wide Input Voltage Ranges: 2.7V to 5.5V
? Open-Drain Fault Flag Output
? Hot Plug-In Application (Soft-Start)
? 2.2V Typical Under-Voltage Lockout (UVLO)
? Current Limit Protection
? Thermal Shutdown Protection
PIN CONFIGUTION
