LCD Bias Driver, 2.5~5.5V, VOUT30V 1.2MHz, SOT23-5, ACP2701 Replace MT3540.
ACP2701
ACP2701.pdf
ACP2701.pdfFEATURES
? Wide Input Voltage Range : 2.6V to 16V
? Feedback Voltage:1.25V
? Switching Current Limit: 500mA
? Internal Power N-MOSFET Switch
? High1.5MHz Operating Frequency
? Internal Soft Start
? 29V Over Voltage Protection
? Small SOT23-5 Packages
? RoHS Compliant and Halogen Free

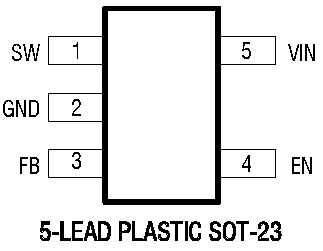

PIN CONFIGUTION
優勢替代
FEATURES
? Integrated 0.5Ω Power MOSFET
? 40μA Quiescent Current
? 2.5V to 5.5V Input Voltage
? 1.2MHz Fixed Switching Frequency
? Internal 1.5A Switch Current Limit
? Adjustable Output Voltage
? Internal Compensation
? Up to 28V Output Voltage
? Over 85% Efficiency

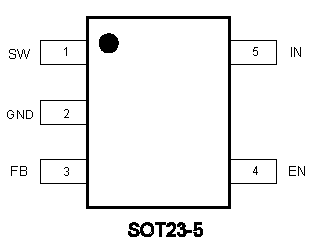

PIN CONFIGUTION
