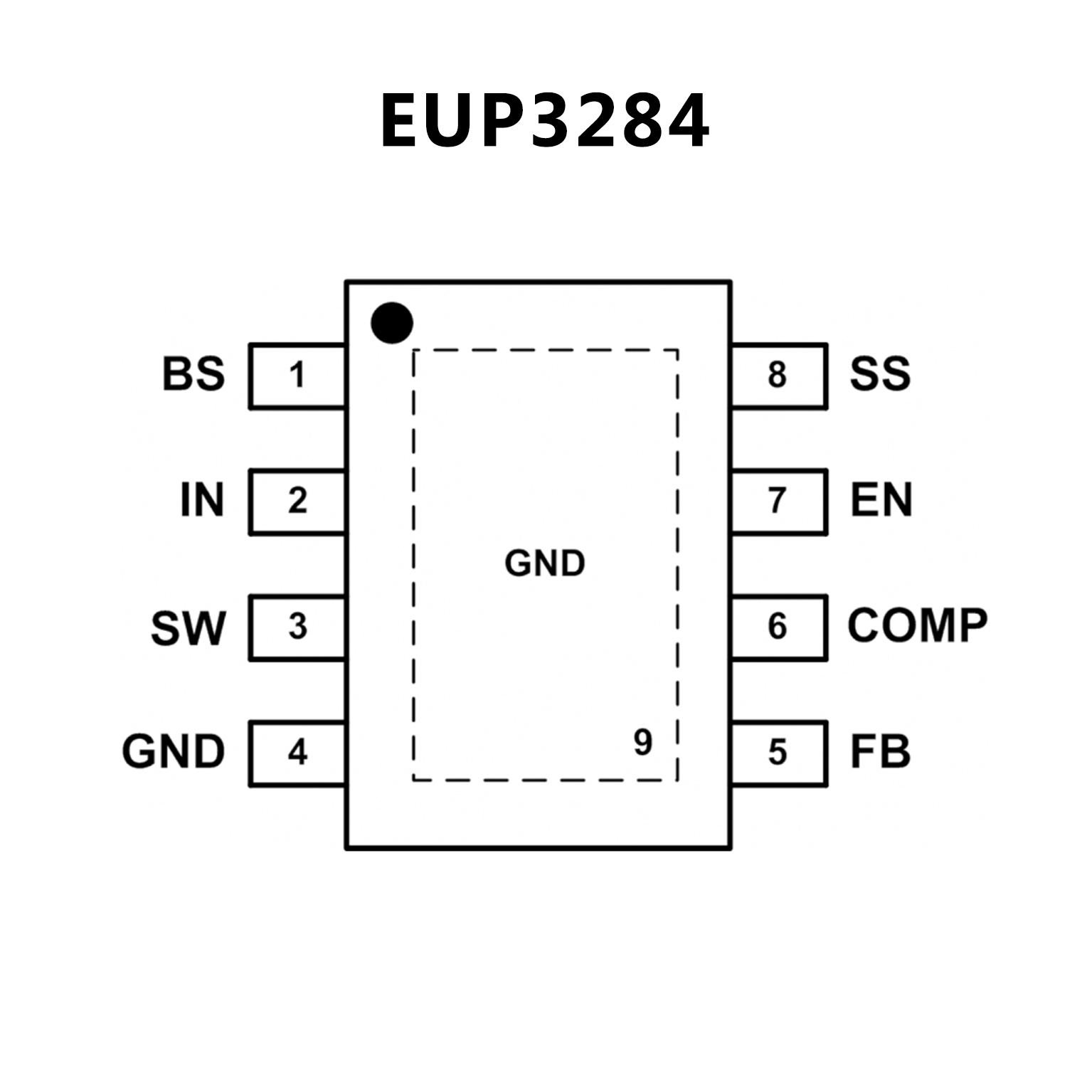

EUP3284.pdf? 3A Output Current
? Automatic Pulse Skipping Mode at Light Load
? 33V Input Surge Protection
? Integrated 160m?/110m? DMOS Switches
? 4.5V to 30V Input Operating Range
? Output Adjustable from 0.92V to 20V
? Up to 94% Efficiency
? 3μA Shutdown Current
? Fixed 340KHz Frequency
? Programmable Soft-Start
? Thermal Shutdown and Overcurrent Protection
? Input Supply Overvoltage and Undervoltage Lockout
? 220ns Minimum On Time
? Available in SOP-8 (EP) Package
? RoHS Compliant and 100% Lead(Pb)-Free Halogen-Free

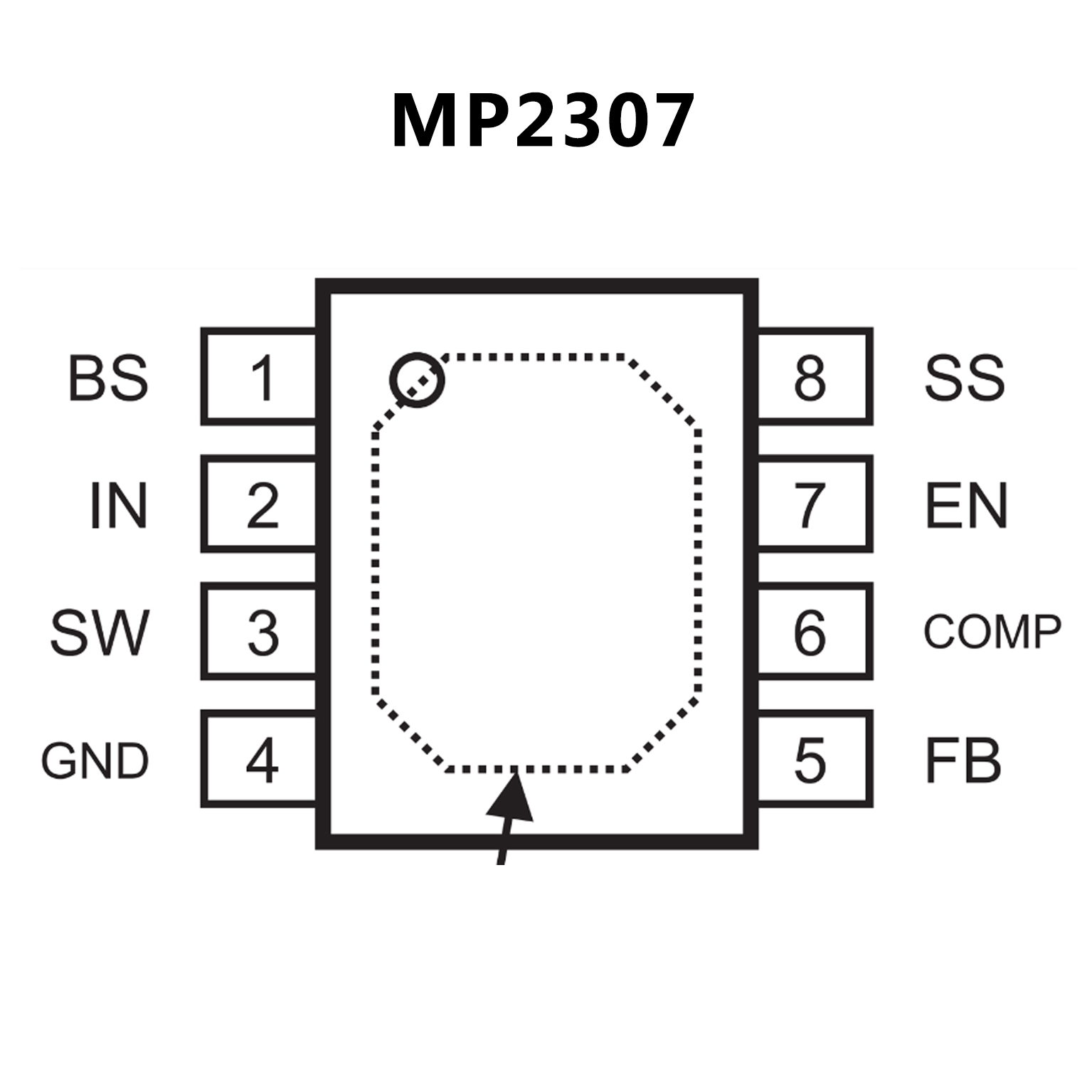

? 3A Continuous Output Current,4A Peak Output Current
? Wide 4.75V to 23V Operating Input Range
? Integrated 100m? Power MOSFET Switches
? Output Adjustable from 0.925V to 20V
? Up to 95% Efficiency
? Programmable Soft-Start
? Stable with Low ESR Ceramic Output Capacitors
? Fixed 340KHz Frequency
? Cycle-by-Cycle Over Current Protection
? Input Under Voltage Lockout
? Thermally Enhanced 8-Pin SOIC Package
