Power Module for Battery Pack, GS95A9CS-R Replace EFC4615.
GS95A9CS-R
GS95A9CS-R.pdf
GS95A9CS-R.pdfFEATURES
? Input Voltage up to 24V
? MOSFET Turn on Resistor RSS(ON)
=35mohm(Max)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=5A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

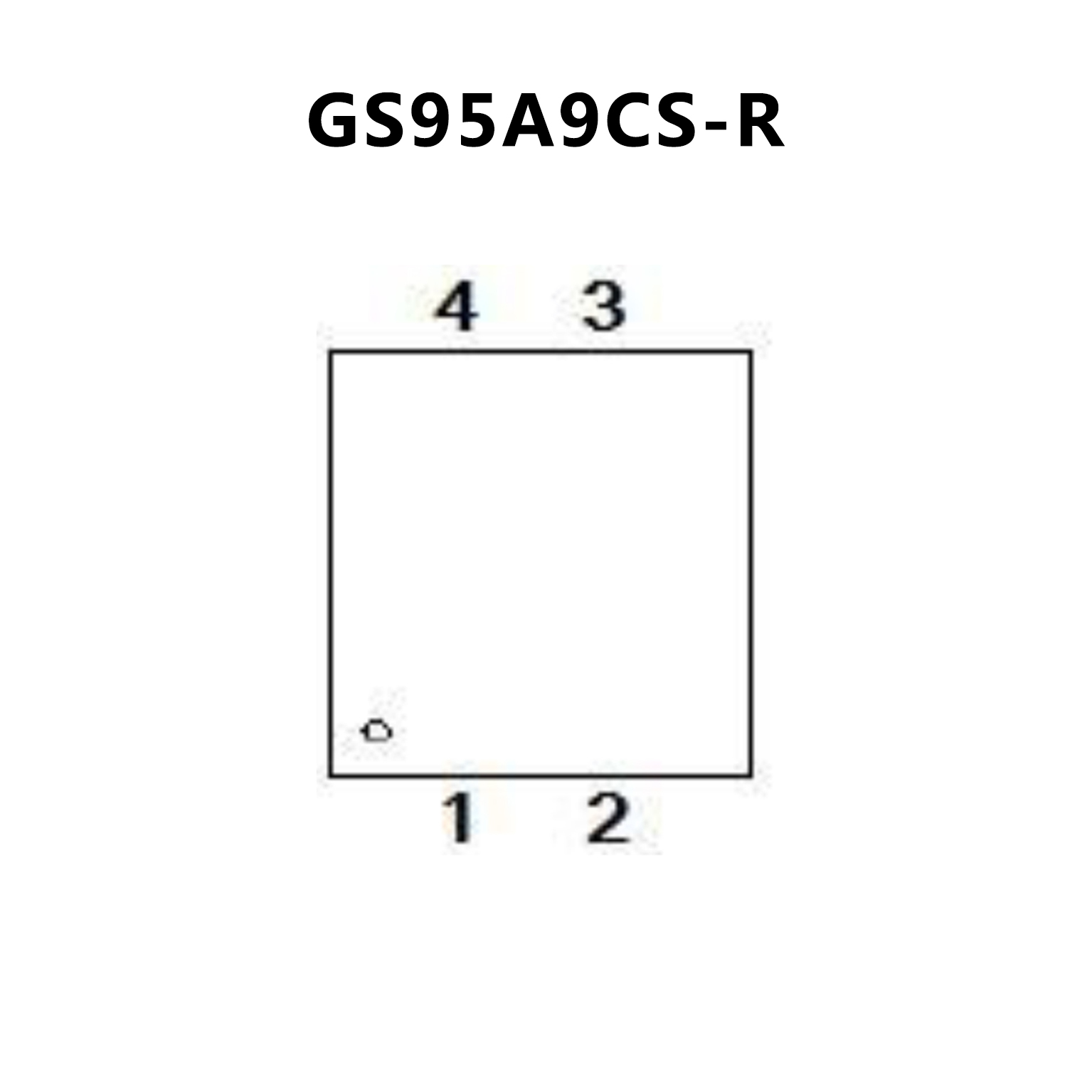

PIN CONFIGUTION
優勢替代
FEATURES
? 2.5V drive
? Best suited for LiB charging and discharging switch
? Common-drain type

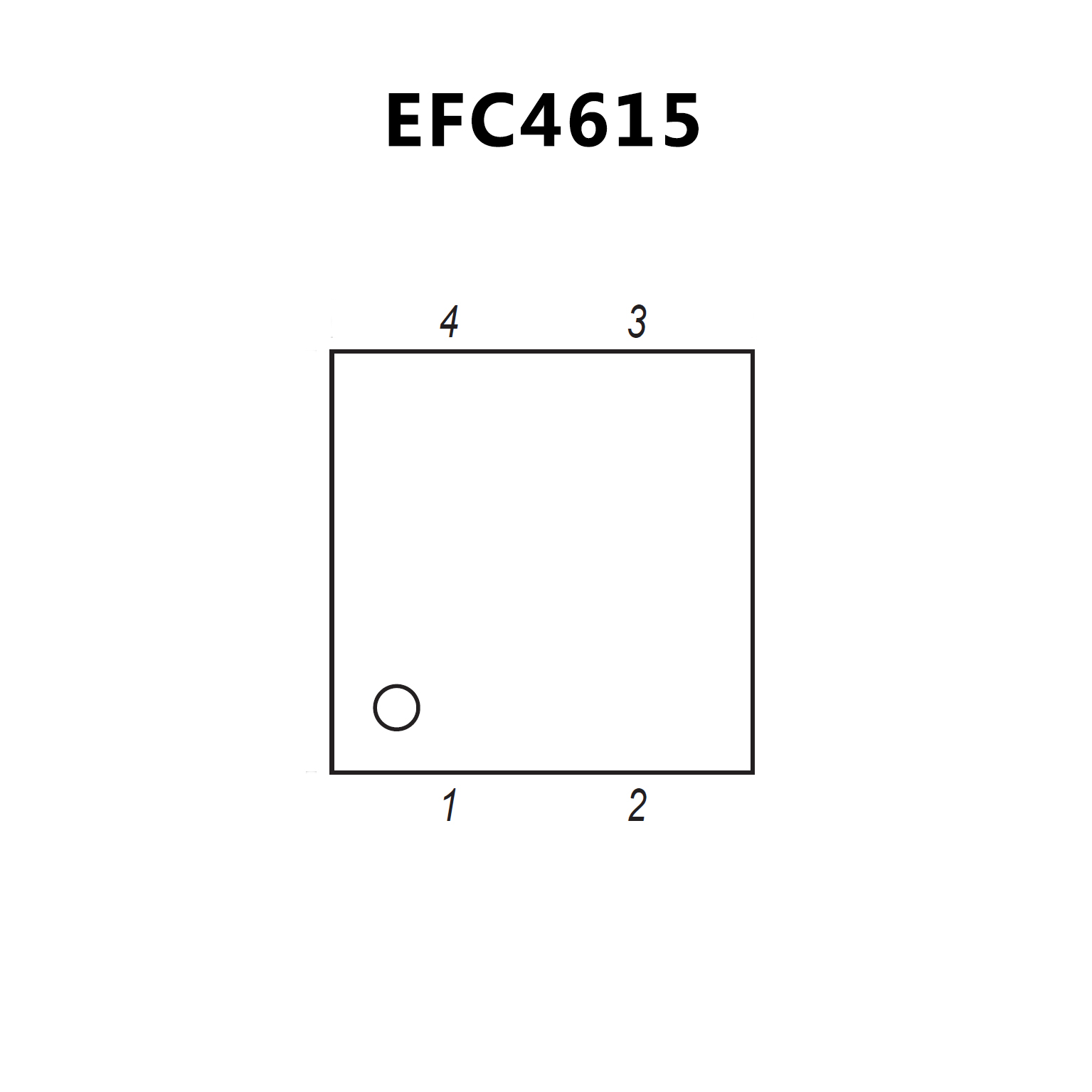

PIN CONFIGUTION
