20V Common-Drain Dual N-Channel AlphaMOS, GS95B1CS-R Replace AOC2870.
GS95B1CS-R
GS95B1CS-R.pdf
GS95B1CS-R.pdfFEATURES
? Input Voltage up to 20V
? MOSFET Turn on Resistor RSS(ON)
=11.9mohm(Max)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=11A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

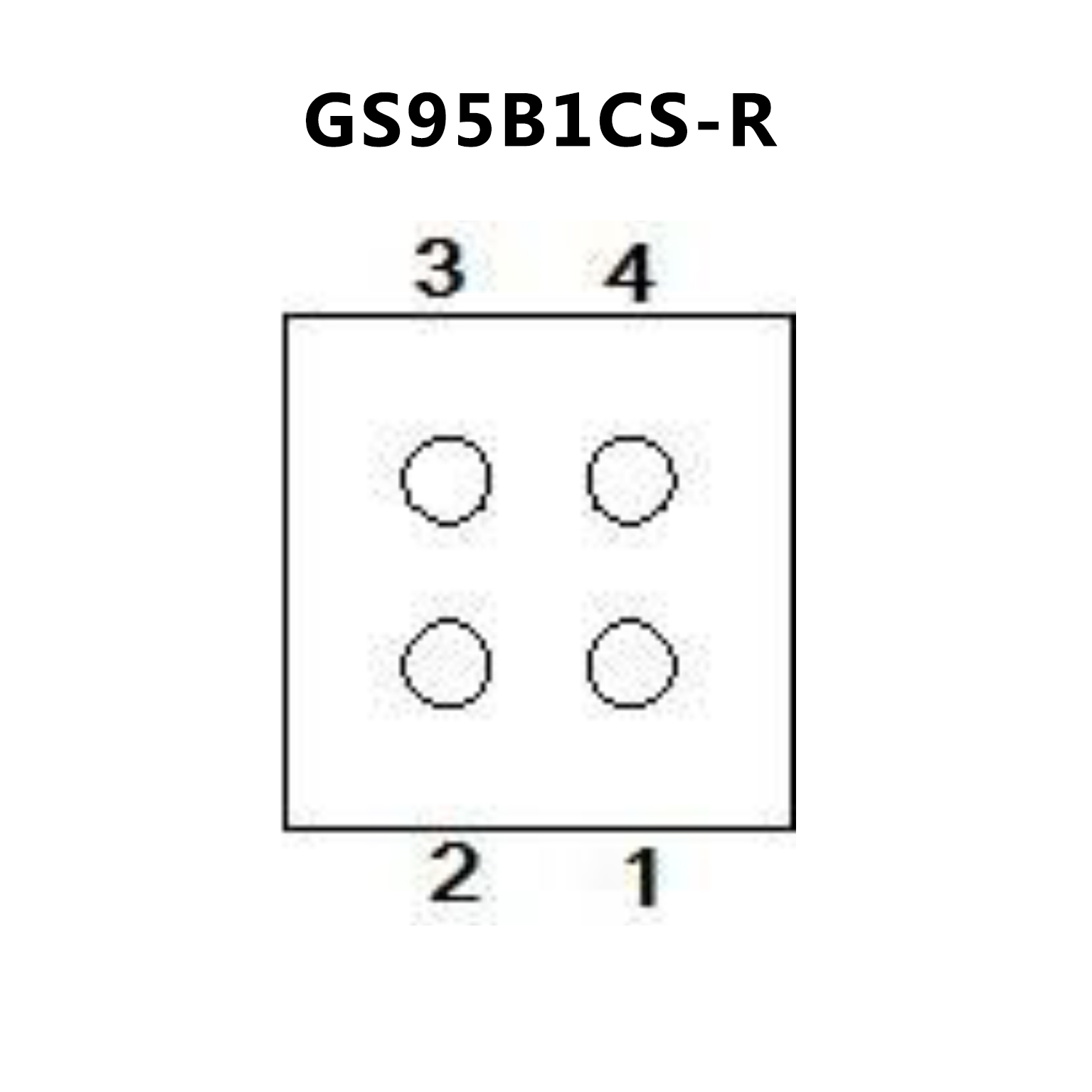

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Trench Power AlphaMOS (αMOS LV) technology
? Low RSS(ON)
? Fully protected AlphaDFN package
? With ESD protection to improve battery performance and safety
? Common drain configuration for design simplicity
? RoHS and Halogen-Free Compliant

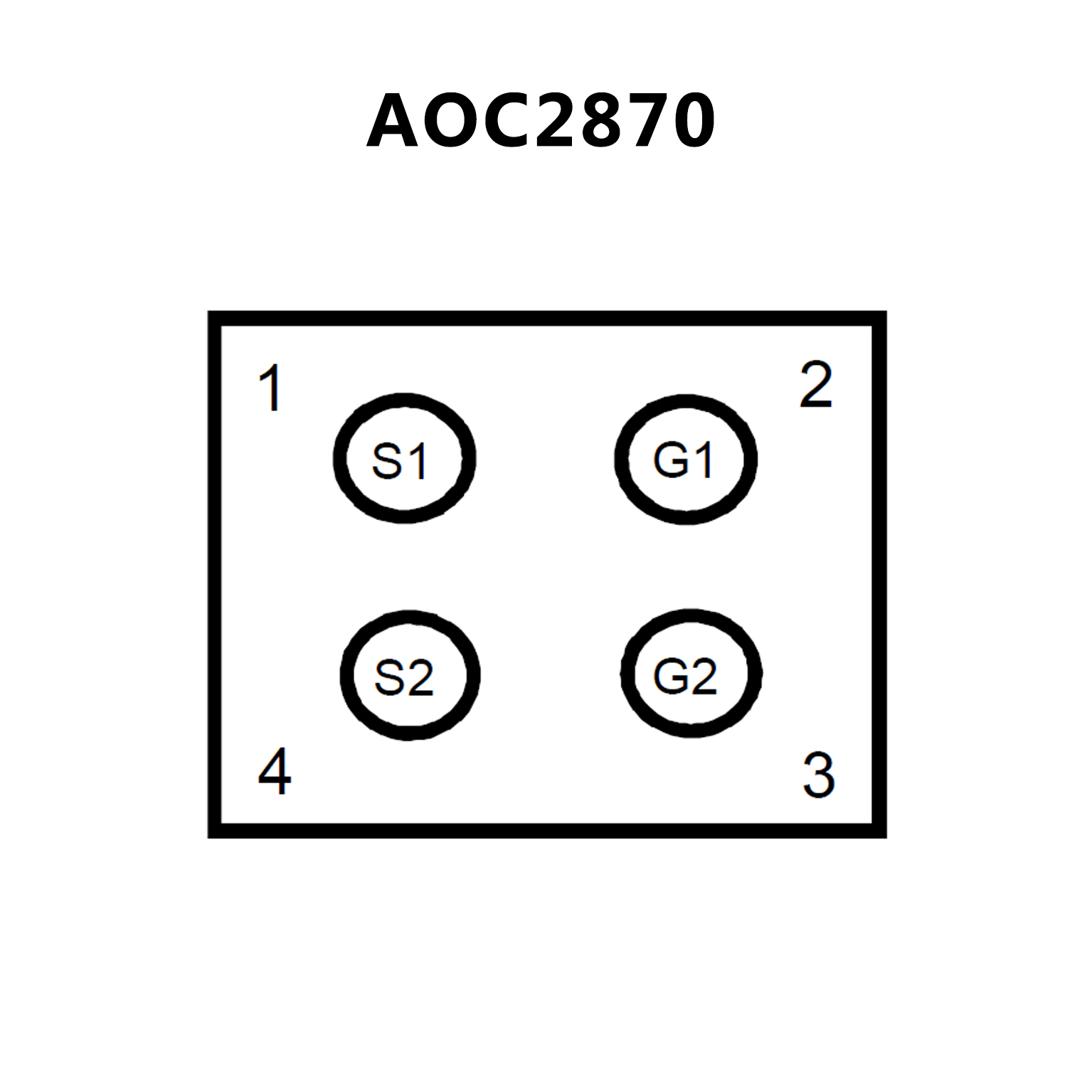

PIN CONFIGUTION
