Gate resistor installed Dual N-channel MOS FET, GS95B1CS-R Replace FC4B22180L.
GS95B1CS-R
GS95B1CS-R.pdf
GS95B1CS-R.pdfFEATURES
? Input Voltage up to 20V
? MOSFET Turn on Resistor RSS(ON)
=11.9mohm(Max)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=11A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

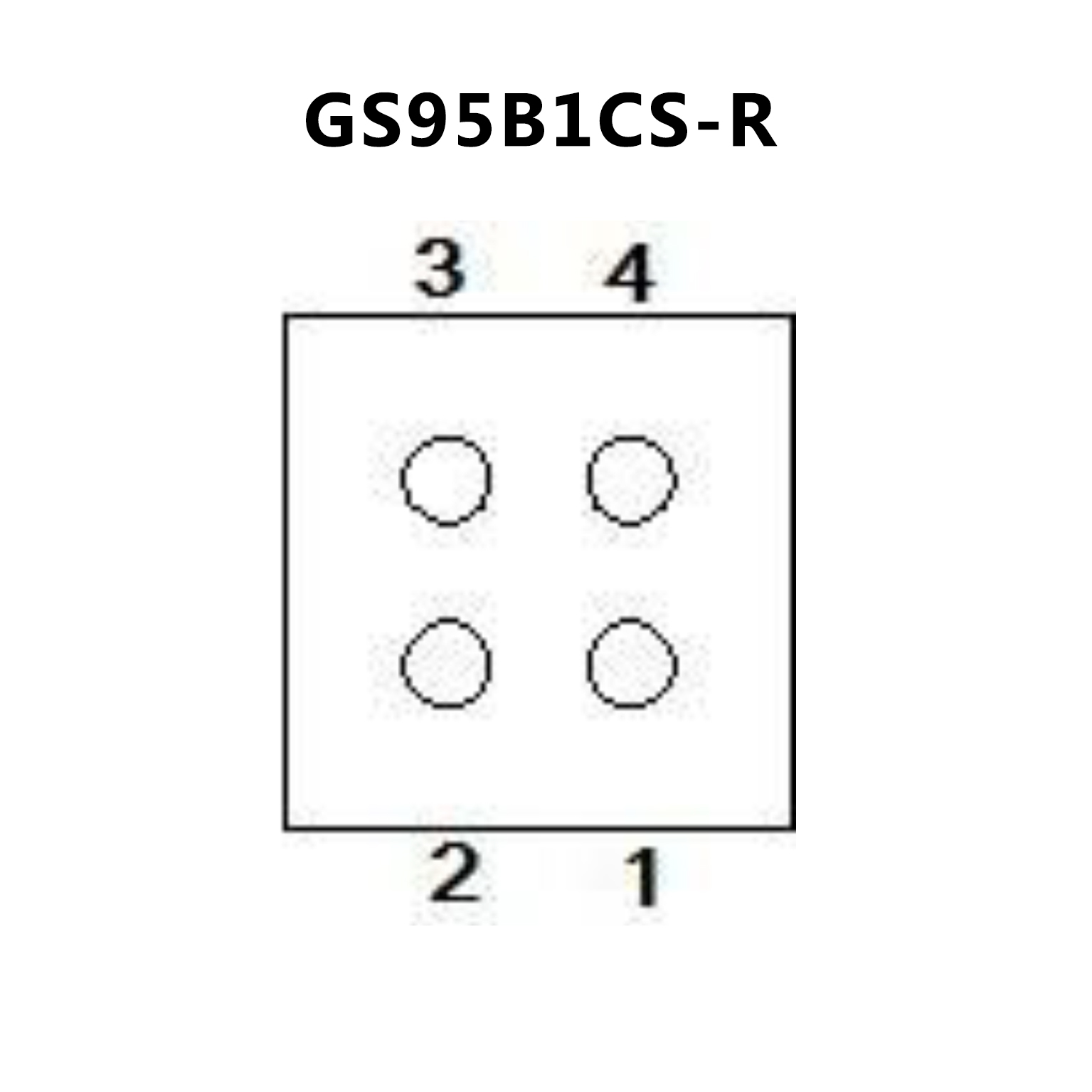

PIN CONFIGUTION
優勢替代
FEATURES
? Low source-source ON resistance:Rss(on) typ. = 9.4 mΩ（VGS = 4.5 V)
? CSP（Chip Size Package)
? RoHS compliant (EU RoHS / MSL:Level 1 compliant)

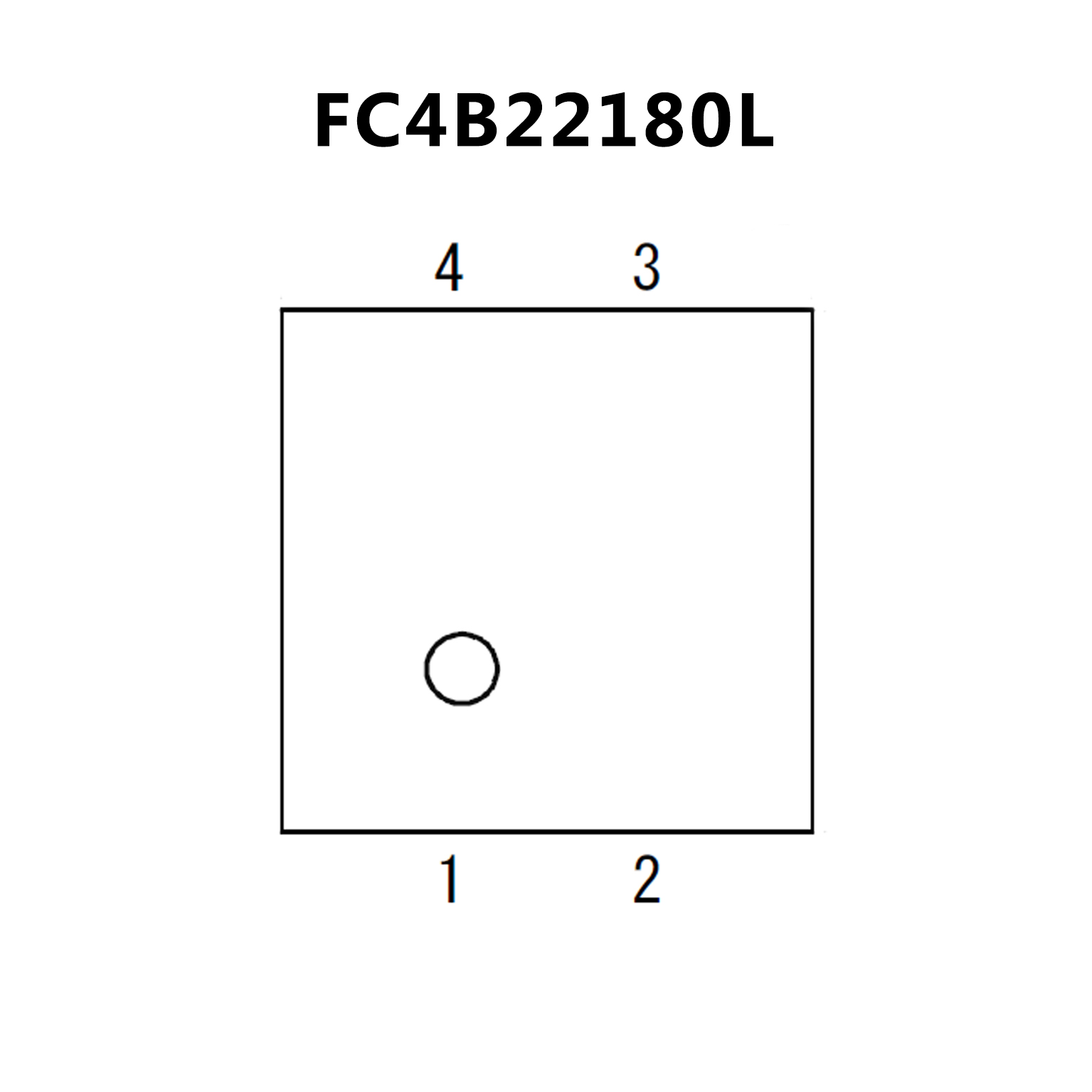

PIN CONFIGUTION
