Power Module for Battery Pack, GS95B5CS-R Replace FCAB21350.
GS95B5CS-R
GS95B5CS-R.pdf
GS95B5CS-R.pdfFEATURES
? Input Voltage up to 12V
? MOSFET Turn on Resistor RSS(ON)
=3.1mohm(Max)@Vgs=4.5V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=20A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

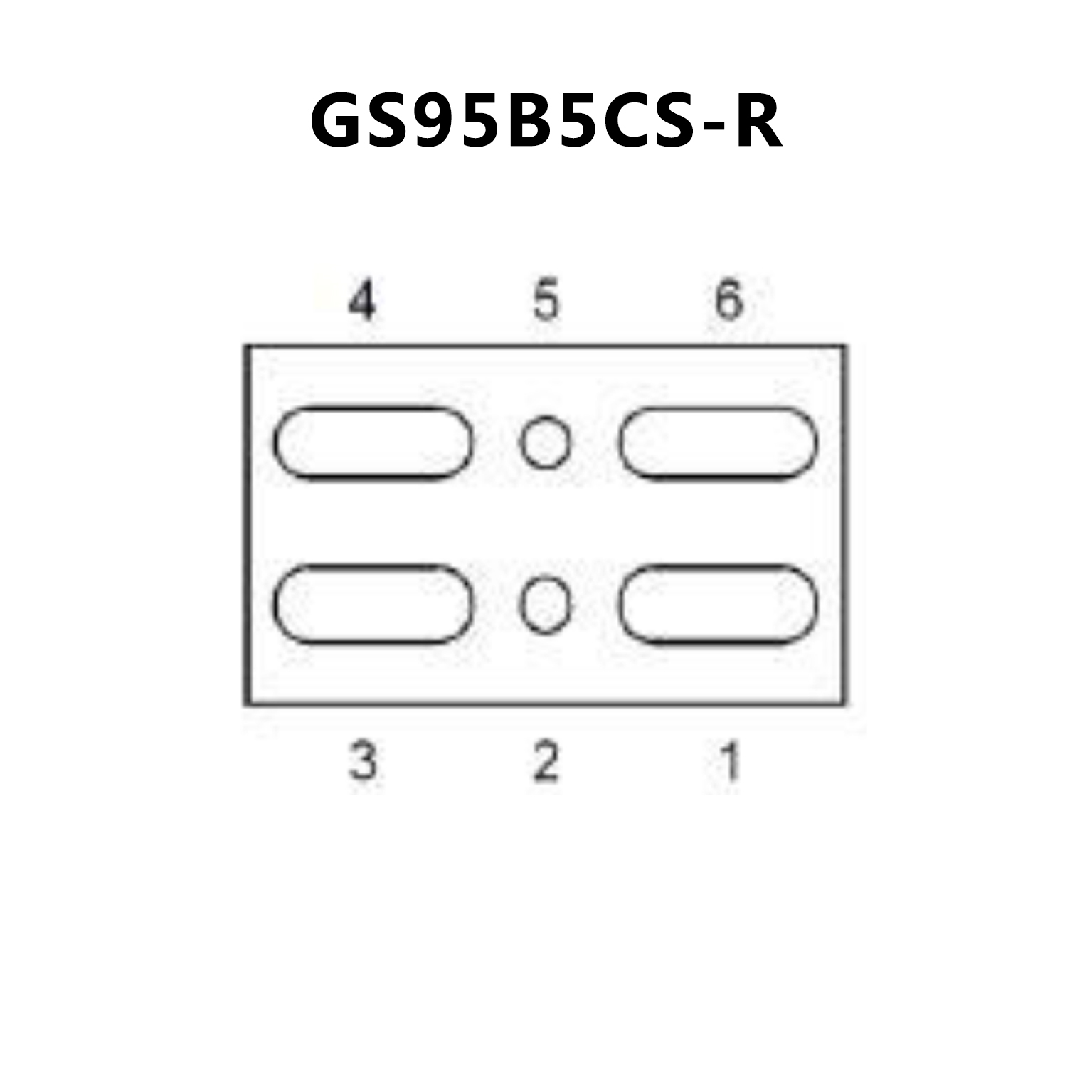

PIN CONFIGUTION
優勢替代
FEATURES
? Low source-source ON resistance:Rss(on) typ. = 2.1 mW（VGS = 4.5 V)
? CSP(Chip Size Package)
? RoHS compliant (EU RoHS / MSL:Level 1 compliant)
PIN CONFIGUTION
