Gate resistor installed Dual N-channel MOSFET, GS95B6CS-R Replace KFCAB22680L.
GS95B6CS-R
GS95B6CS-R.pdf
GS95B6CS-R.pdfFEATURES
? Input Voltage up to 23V
? MOSFET Turn on Resistor RSS(ON)
=2.70mohm(Avg)@Vgs=3.8V
? Drain to Drain MOSFET Module
? With ESD Protection
? Continuous Current=24A
? Green Product (RoHS, Lead-Free, Halogen-Free Compliant)

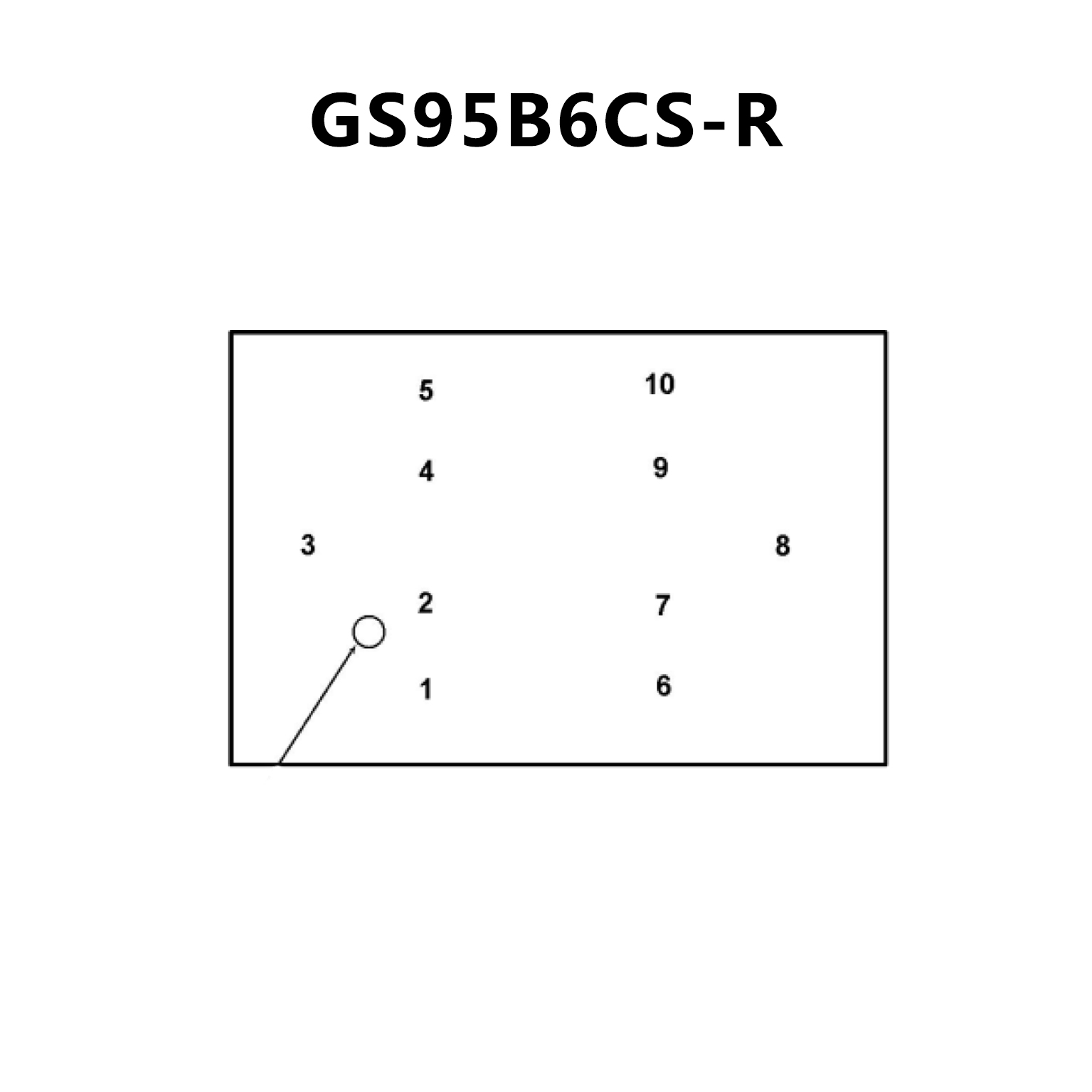

PIN CONFIGUTION
優勢替代
FEATURES
? Source-source On-state resistance: RSS (on) typ.
= 2.65 m? (VGS = 3.8 V)
? CSP (Chip Size Package)
? Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1)

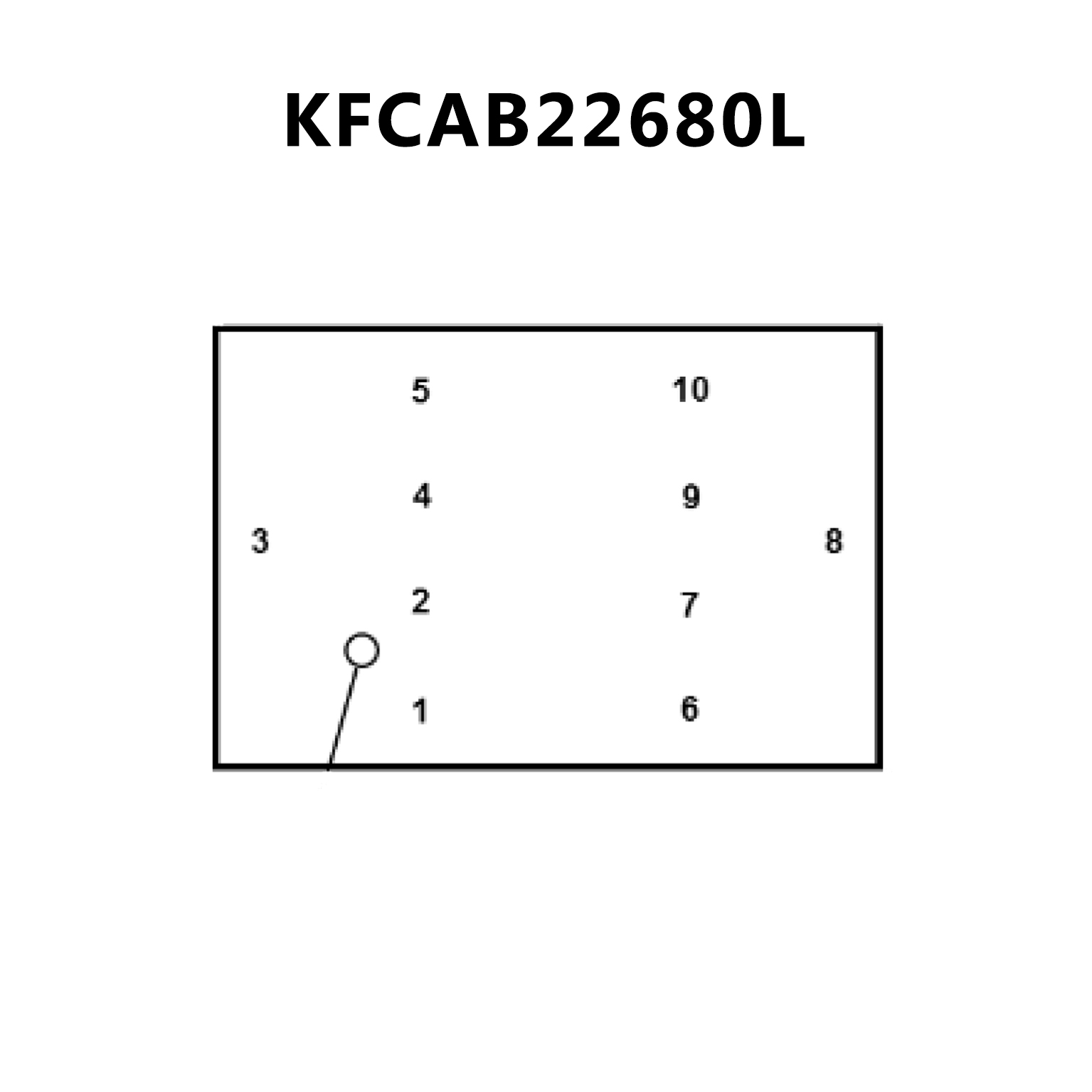

PIN CONFIGUTION
