High-Current, High-Performance DrMOS Power Module, NDC300RA Replace AOZ5016QI.
NDC300RA
NDC300RA.pdf
NDC300RA.pdfFEATURES
? Capable of Average Currents up to 55 A.
? Capable of Switching at Frequencies up to 1 MHz.
? Compatible with 3.3 V or 5 V PWM Input.
? Responds Properly to 3-level PWM Inputs.
? Option for Zero Cross Detection with 3-level PWM.
? Internal Bootstrap Diode.
? Undervoltage Lockout.
? Supports Intel? Power State 4.

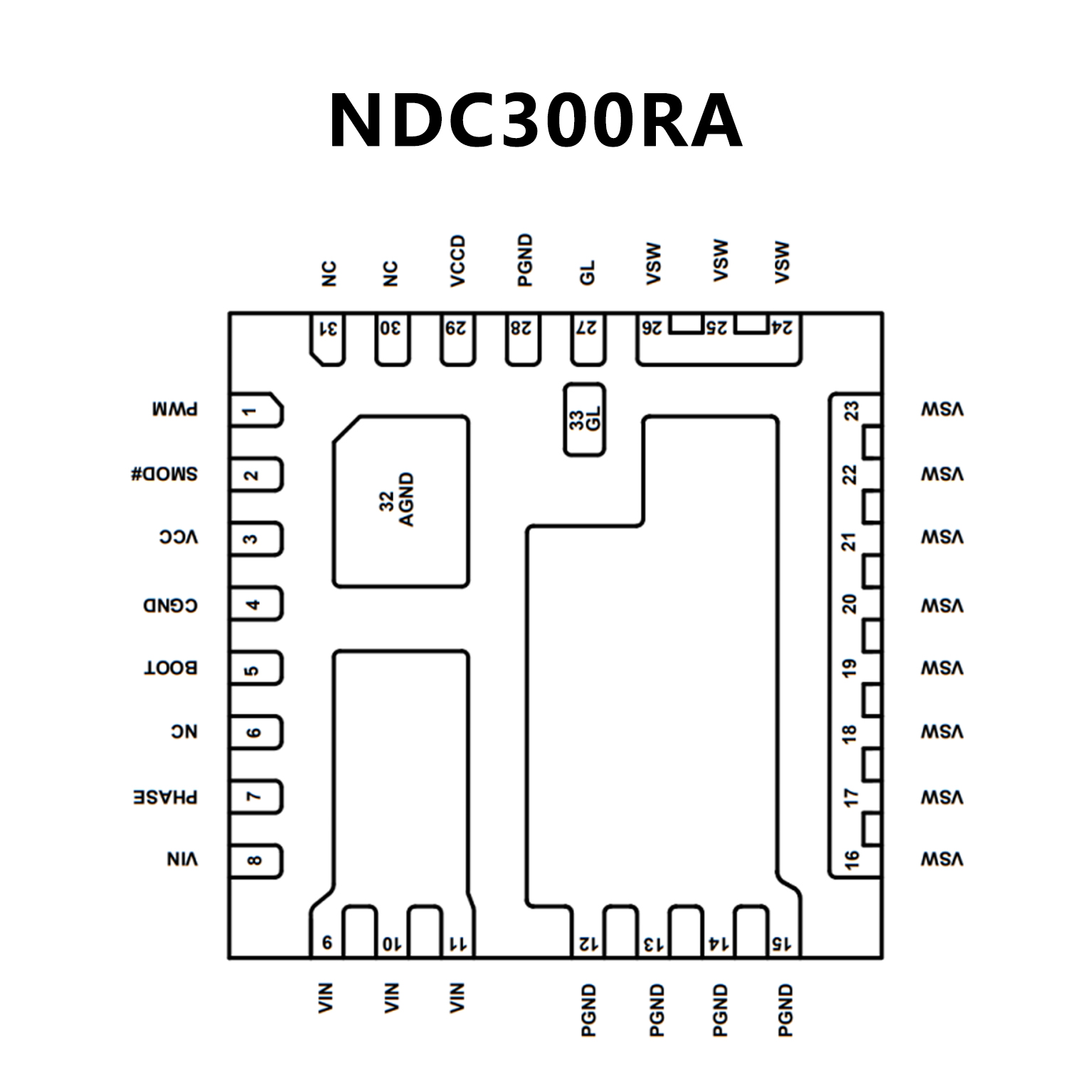

PIN CONFIGUTION
優勢替代
FEATURES
? 4.5V to 25V power supply range
? 4.5V to 5.5V driver supply range
? 55A continuous output current
Up to 80A with 10ms on pulse
Up to 120A with 10us on pulse
? Up to 2MHz switching operation
? 5V PWM and Tri-State input compatible
? Under-Voltage LockOut protection
? FCCM control for Diode Emulation / CCM operation
? Standard 5mm x 5mm QFN-31L package

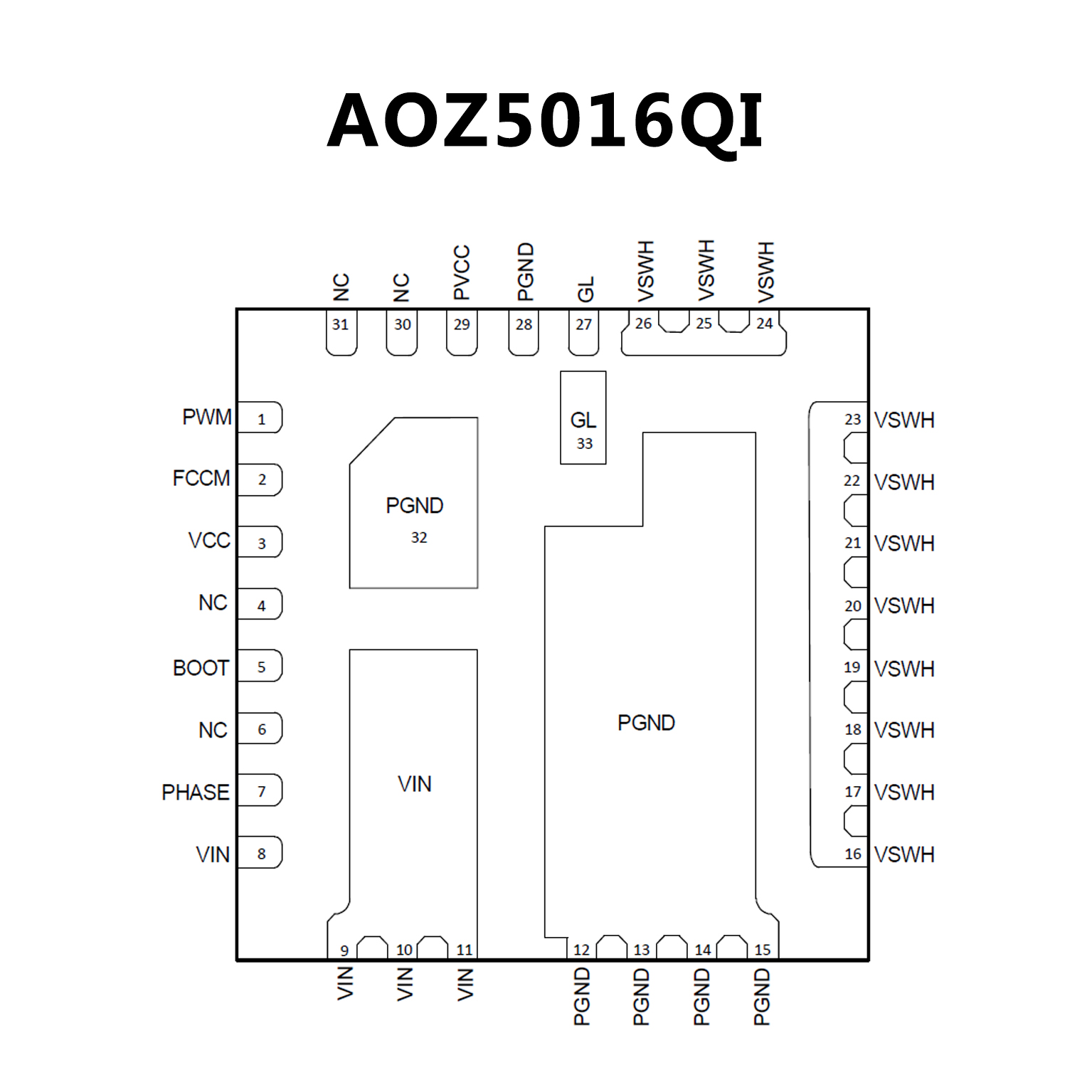

PIN CONFIGUTION
