SCT2432.pdf? Wide Input Range: 3.8V-40V
? Up to 3.5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Pulse Skipping Mode (PSM) with 25uA Quiescent Current
? 100ns Minimum On-time
? Programmable Soft-start Time
? Adjustable Frequency 300KHz to 2.2MHz
? External Clock Synchronization
? Frequency Spread Spectrum (FSS) Modulation for EMI Reduction
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection

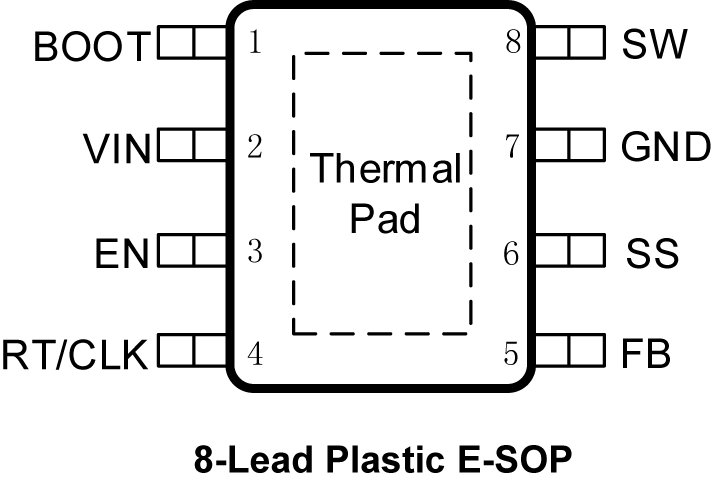

? Available in an ESOP-8 Package
? VIN 3.8V to 40V
? 3.5A Continuous Output Current
? 0.8V ± 1% Reference Voltage
? 22μA Low Quiescent Current (Pulse Frequency Modulation)
? Programmable Switching Frequency: 100kHz to 2.2MHz
? External Clock Synchronization: 100kHz to 2.2MHz
? Programmable Soft-Start Time
? Up to 85% Efficiency at 5mA Light Load
? Proprietary Gate Driver Design for Best EMI Reduction
? Frequency Spread Spectrum (FSS) to Reduce EMI
? Low-Dropout (LDO) Mode
? Precision Enable Threshold to Adjust UVLO
? Protection Circuitry
? Undervoltage Lockout (UVLO)
