SCT71005Q.pdf? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
? Wide Input Range: 1.7V-5.5V
? Maximum Output Current: 500mA
? Output Voltage:
1.2V,1.8V and 3.3V (Fixed Output)
0.7V~5V (Adjustable Output Version-SCT71005A01Q)
0.5V~5V (Adjustable Output Version-SCT71005A02Q)
? Output Voltage Accuracy:
TJ= 25℃ : ±1%
TJ= -40℃~ 125℃ : ±2%
? Low Quiescent Current: 8uA
? Ultra-Low Shutdown Current: 0.02uA
? Low Dropout Voltage ：
54mV at 200mA load current
143mV at 500mA load current
? Support Output Capacitors Range
2.2uF~220uF
Low-ESR: 0.001Ω~ 5 Ω
? 2.3ms Internal Soft-start Time(VREF=500mV)
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Precision Enable Threshold for Programmable Input Voltage Under-Voltage Lock Out Protection (UVLO) Threshold and Hysteresis
? Over-Temperature Protection
? Power-Good Feature is available
? Active Output Discharge

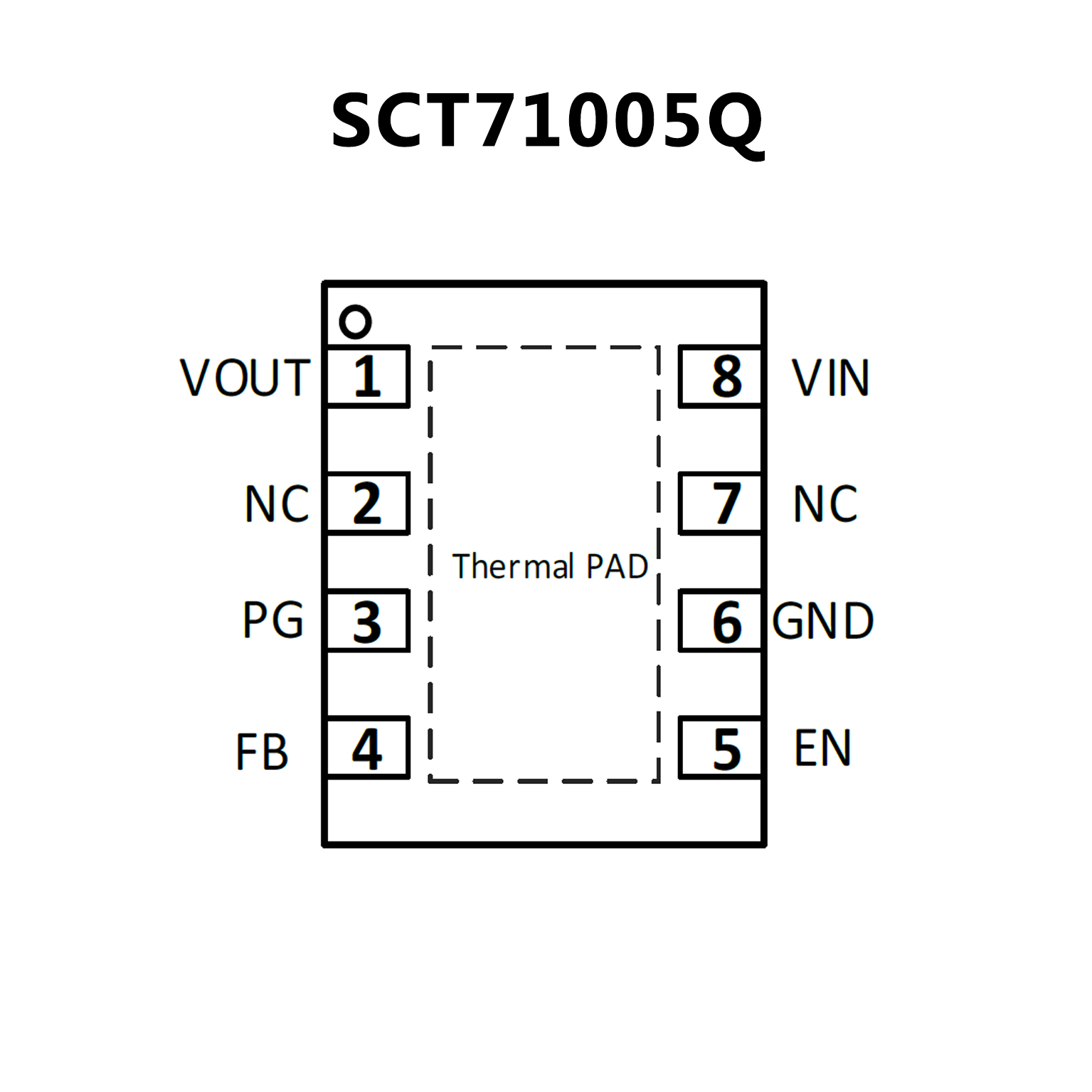

? Available Package: SOT23-5/ TDFN2x2-6/TDFN2x3-8

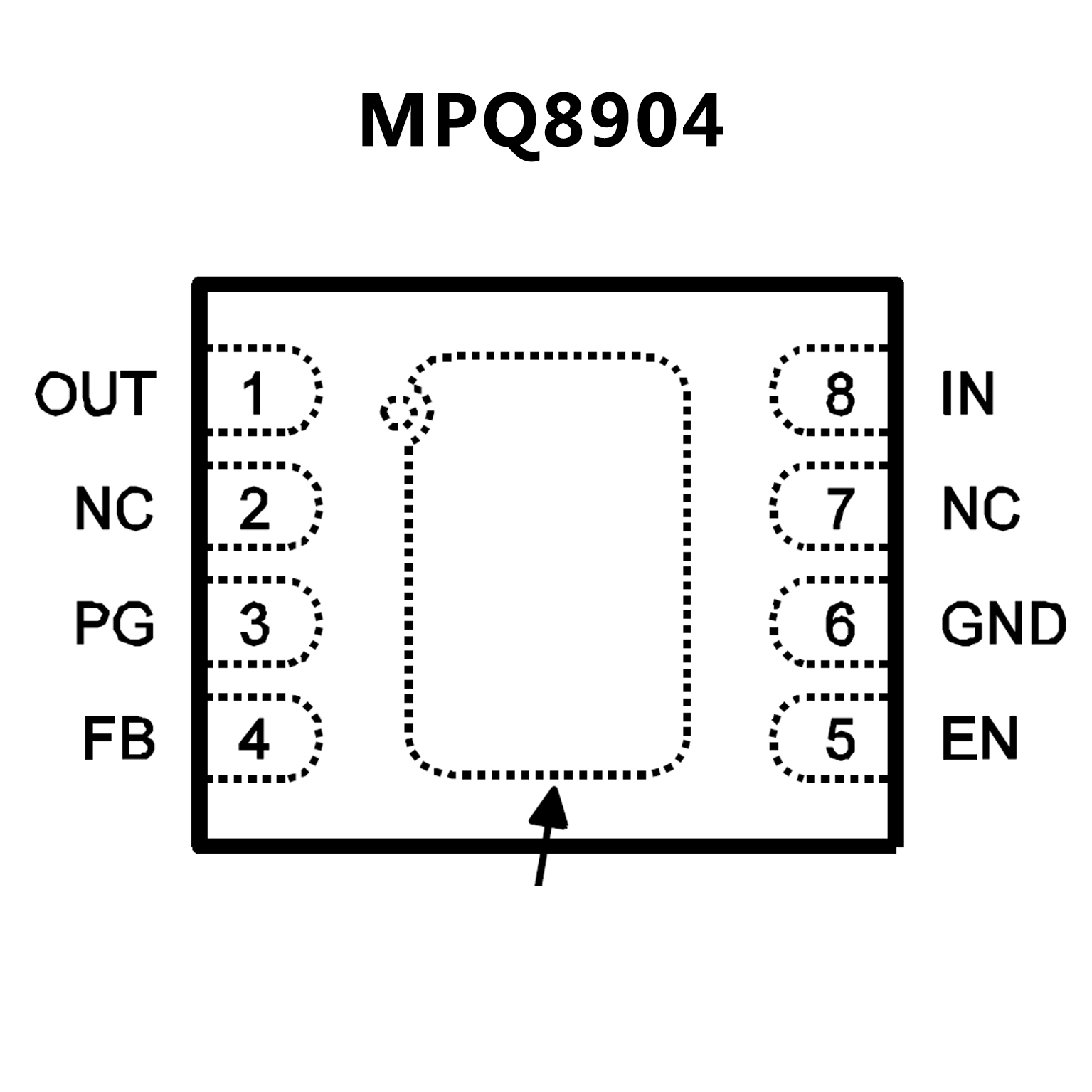

? Power-Good Open Collector Output
? Guaranteed Industrial/Automotive Temp. Range Limits
? Operates from a 2.5V-to-6.5V Input
? Low 300mV Dropout at 500mA Output
? Stable with Very Small Ceramic Capacitors
? 2.5% Feedback Reference
? Adjustable Output Voltage from 0.5V to 5V
? Better than 0.001%/mA Load Regulation
? Stable with Low-ESR Output Capacitor
? Low 140μA Ground Current
? Internal Thermal Protection
? Current Limit Protection
? 7μA Typical Quiescent Current at Shutdown
? Available in AEC-Q100 Qualified Grade 1
