Ultra Low Capacitance ESD Protection Array For High Speed I/O Port, SGM05FB4D2 P2P AZ542504F.
SGM05FB4D2.pdf優(yōu)勢替代
FEATURES
? ESD Protect for 4 high-speed I/O channels
with Bi-directional
? Provide ESD protection for each line to
IEC 61000-4-2 (ESD) ±15kV (air), ±15kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning) 5A (8/20μs)
? For operating voltage of 5V and below
? Ultra low capacitance : 0.40pF typical
? Fast turn-on and Low clamping voltage
? Array of ESD rated diodes with internal equivalent
TVS (Transient Voltage Suppression) diode
? Simplified layout for high-speed differential
signaling channels
? Solid-state silicon-avalanche and active circuit
triggering technology Green part

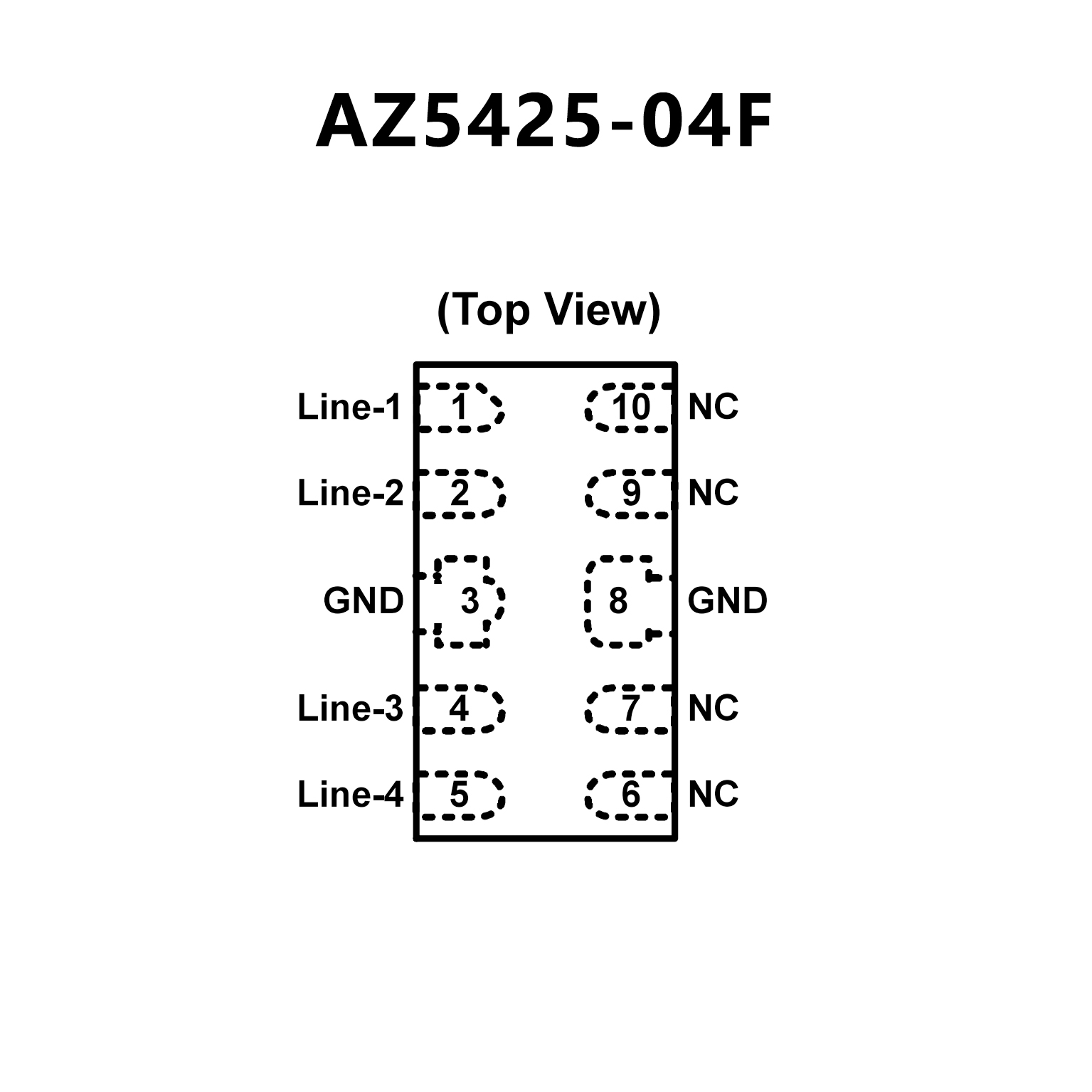

PIN CONFIGUTION
