Ultra-Low Capacitance 1-Channel ESD Protection, SGM15UB1E2 P2P D15V0X1B2LPQ.
SGM15UB1E2
SGM15UB1E2.pdf
SGM15UB1E2.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±10kV (Air)
IEC 61000-4-2: ±10kV (Contact)
? Rated Peak Pulse Current: 2A
? 0.35pF (TYP) Channel Input Capacitance
? Low Profile Package: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
? Working Voltage: 15V and Below

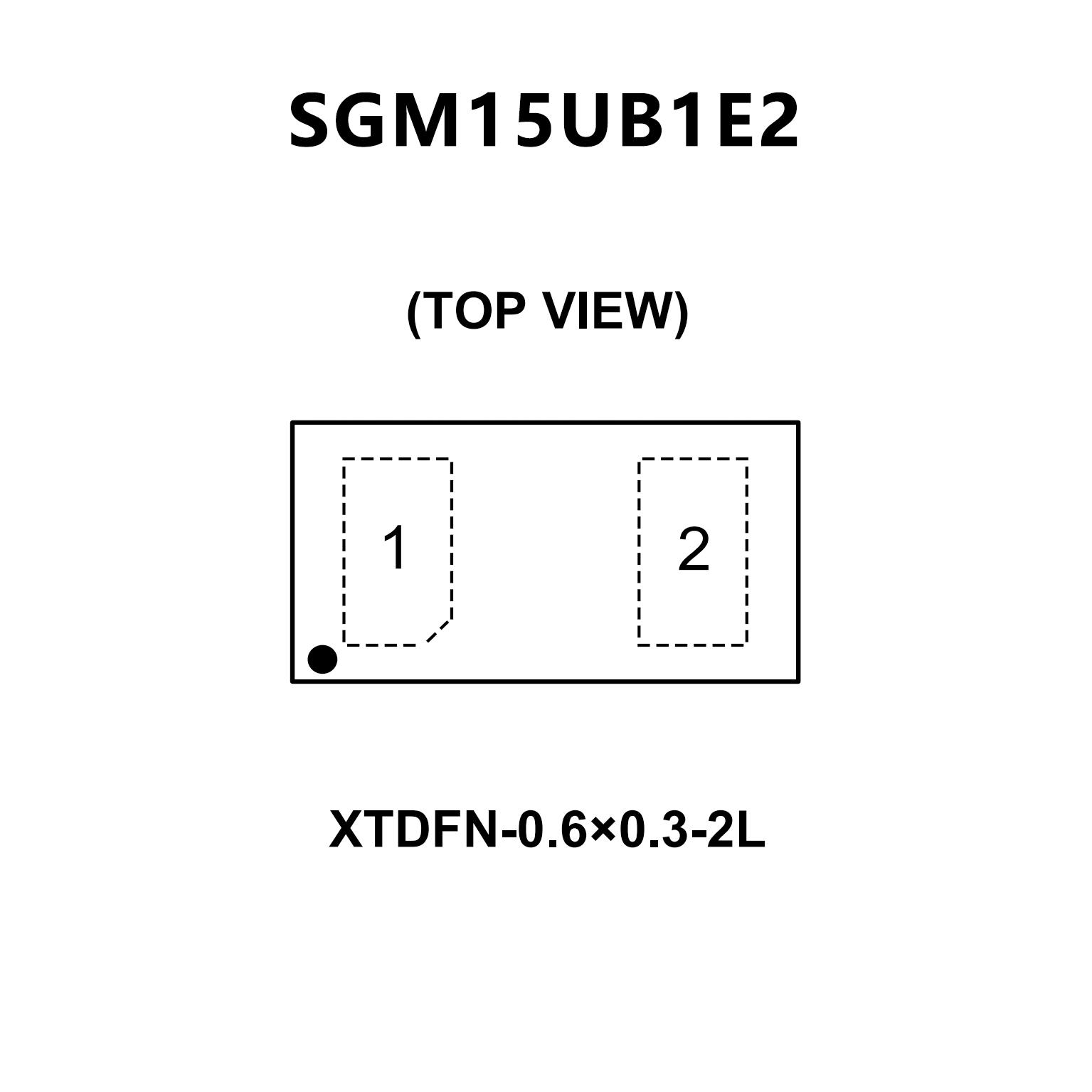

PIN CONFIGUTION
優勢替代
FEATURES
? Low Profile Package (0.53mm Max) and Ultra-Small PCB
Footprint Area (1.08mm x 0.68mm Max) Suitable for
Compact Portable Electronics
? Provides ESD Protection per IEC 61000-4-2 Standard:
Air ±24kV, Contact ±20kV
? One Channel of ESD Protection
? Low Channel Input Capacitance
PIN CONFIGUTION
