Ultra-Low Capacitance 1-Channel ESD Protection, SGM15UB1E2 P2P ESD103-B1-02EL.
SGM15UB1E2
SGM15UB1E2.pdf
SGM15UB1E2.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±10kV (Air)
IEC 61000-4-2: ±10kV (Contact)
? Rated Peak Pulse Current: 2A
? 0.35pF (TYP) Channel Input Capacitance
? Low Profile Package: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
? Working Voltage: 15V and Below

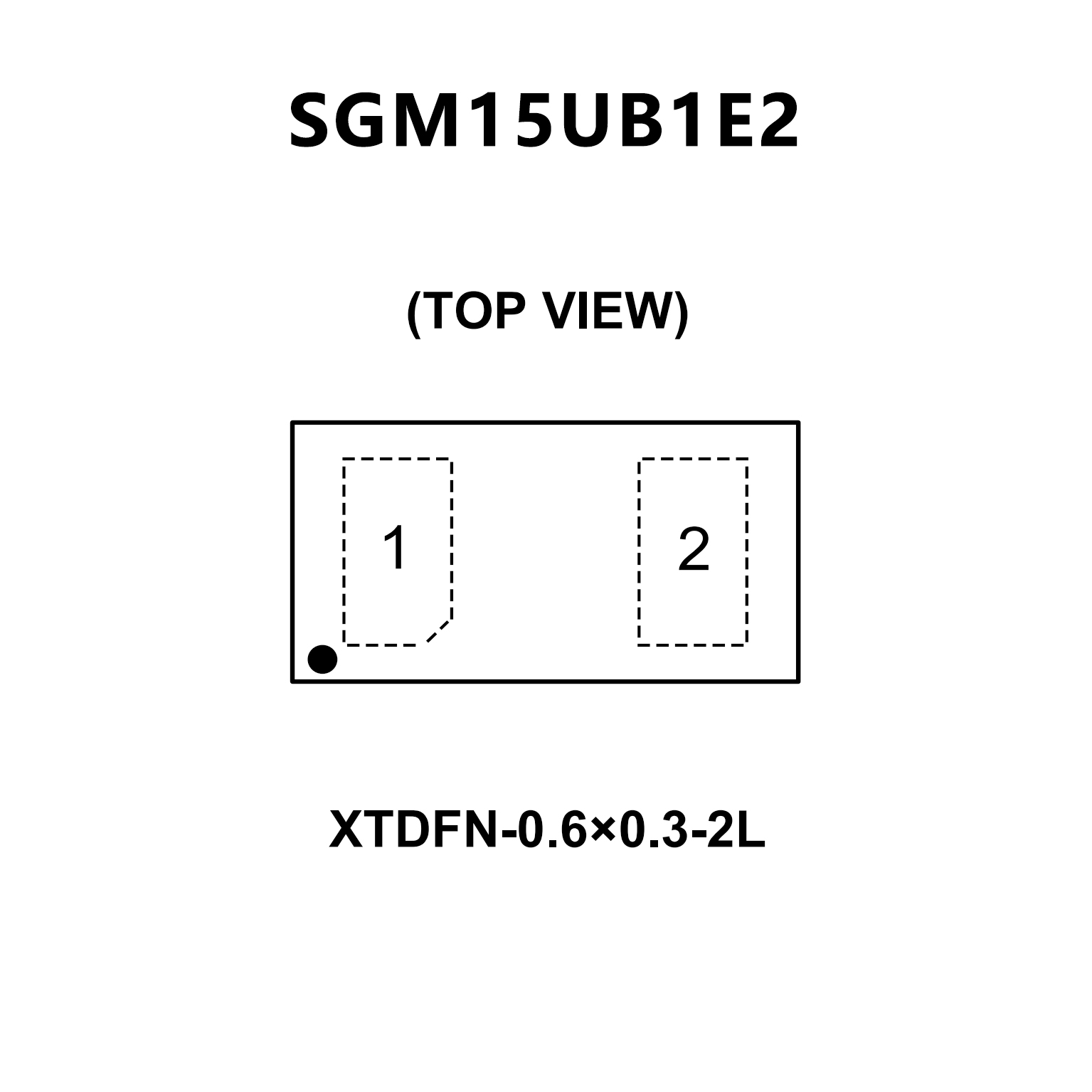

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? ESD/Transient protection of RF and ultra-high
speed signal lines according to:
– IEC61000-4-2: ±10 kV (contact)
? Extremely low capacitance CL = 0.09 pF (typical) at f
= 1 GHz
? Maximum working voltage: VRWM = ±15 V
? Very low reverse current: IR < 0.1 nA (typ.)
? Very low series inductance down to 0.2 nH typical
(TSSLP-2-4)
? Extremely small form factor down to 0.62 x 0.32 x 0.31 mm2
? Pb-free package (RoHS compliant)

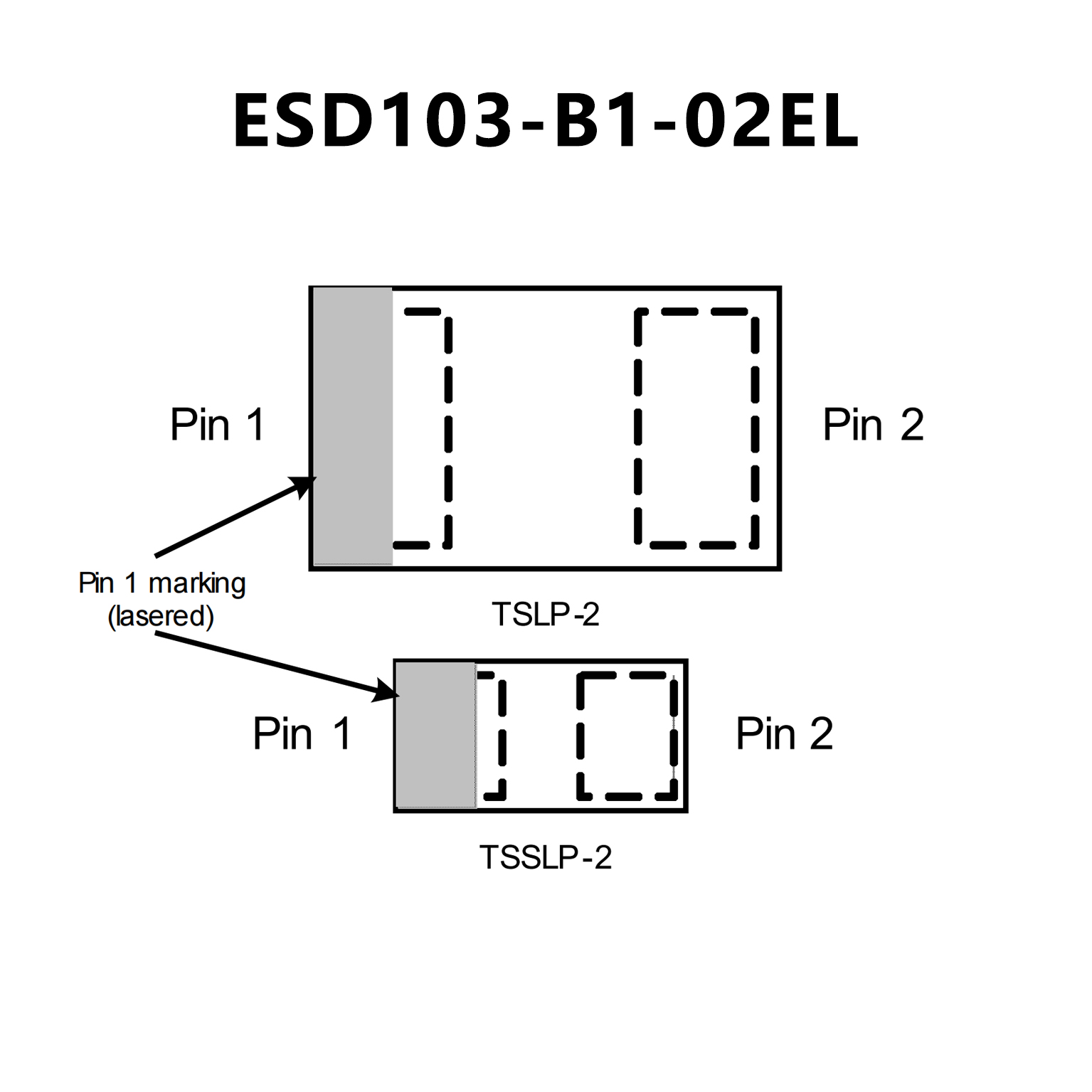

PIN CONFIGUTION
