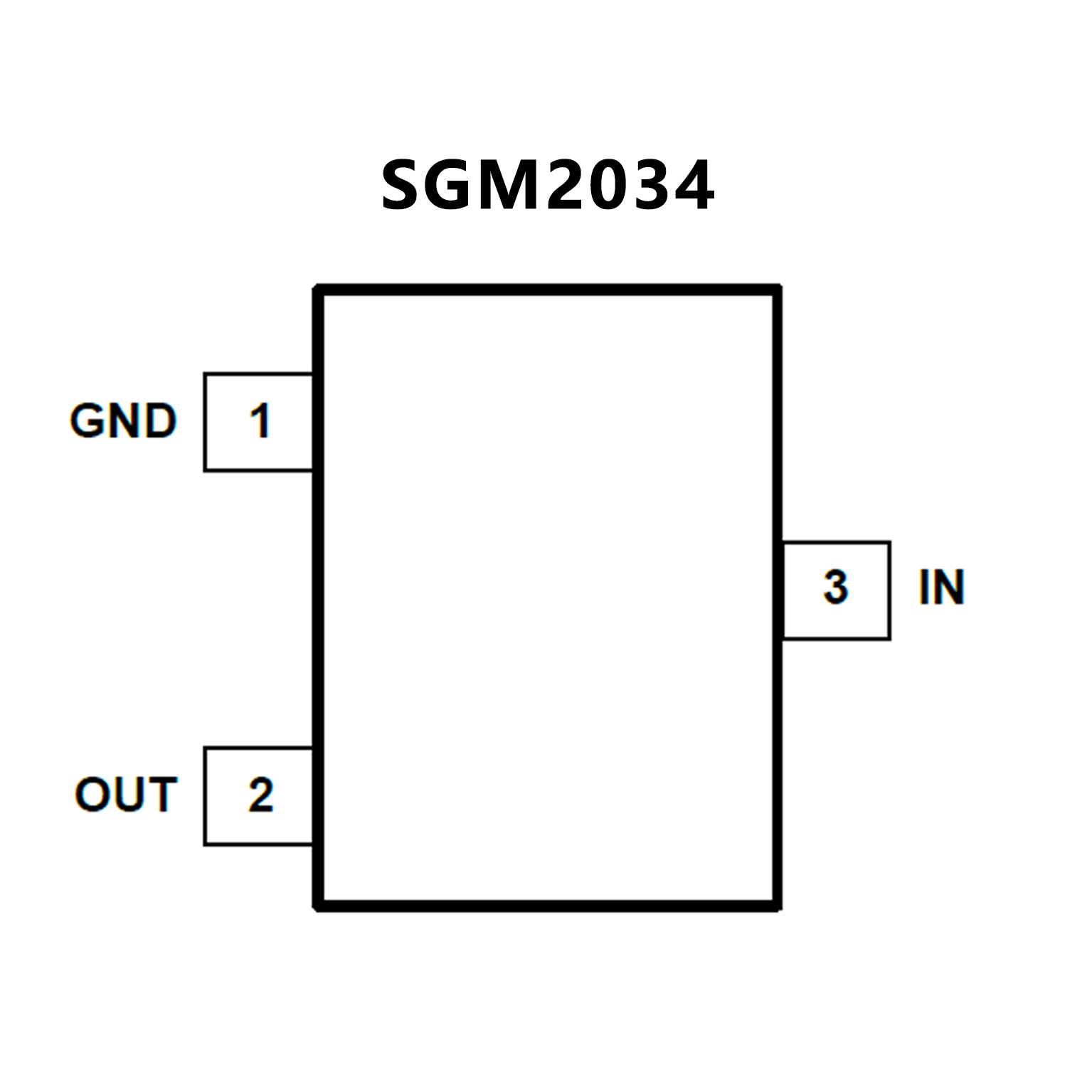

SGM2034.pdf? Output Voltage: 1.2V to 5.2V with 0.05V per Step
? Input Voltage: 1.7V to 7.5V
? High Output Voltage Accuracy: ±1.2%
? Low Dropout Voltage: 75mV (TYP) at 100mA
? Ultra Low Current Consumption: 1μA (TYP)
? 250mA Nominal Output Current
? Output Capacitor: Ceramic Capacitors of 0.1μF or
Higher can be Used
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Built-In Over-Temperature Protection
? Built-In Over-Current Protection Circuit
? -40℃ to +85℃ Operating Temperature Range
Available in Green SOT-23-3 and SOT-89-3 Packages

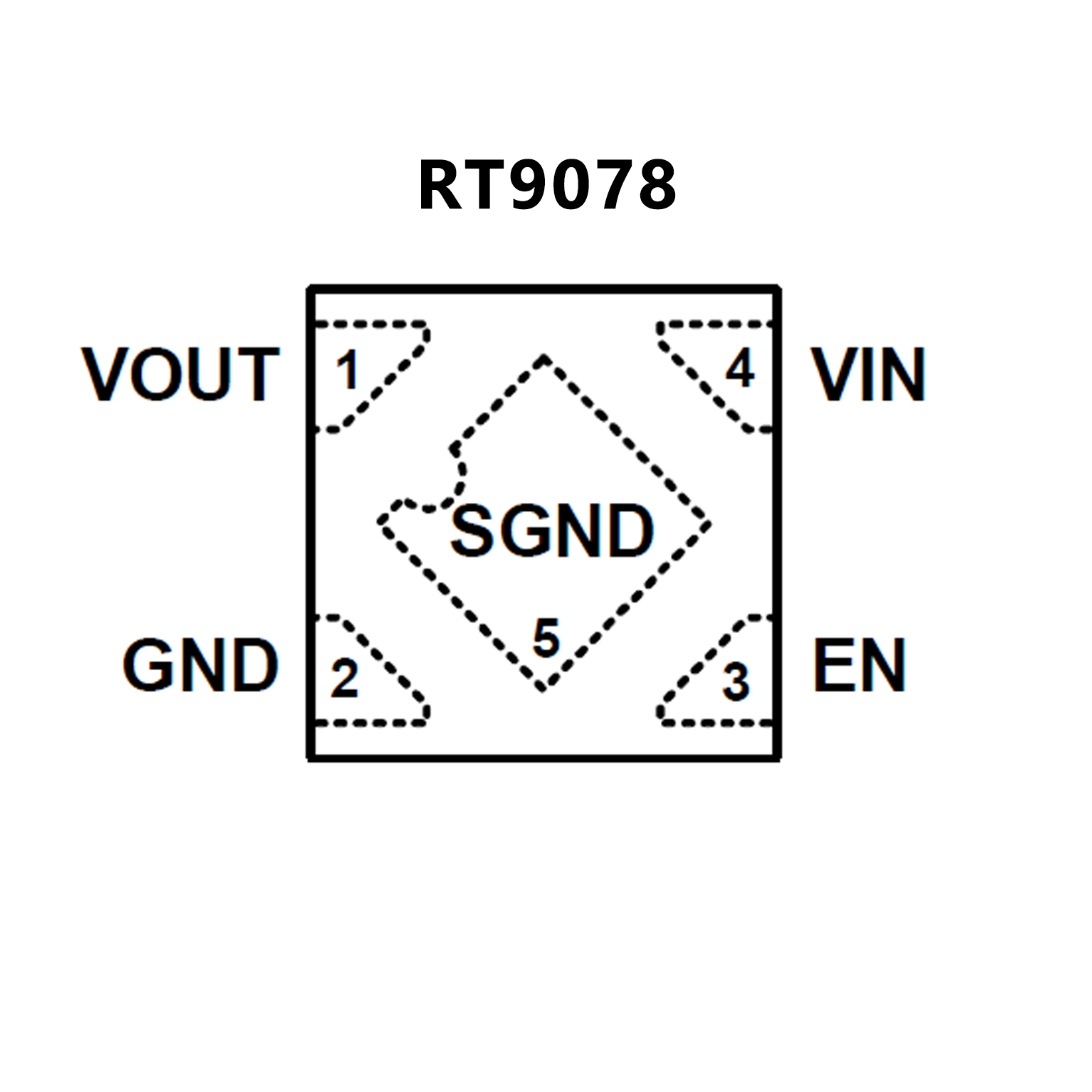

? Input Voltage Range : 1.2V to 5.5V
? 2μμμμμA Ground Current (IQ) at no Load
? PSRR = 75dB at 1kHz
? Adjustable Output Voltage Range :
0.8V to 5V (TSOT-23-5 Package with SNS Pin Only)
? 2% Output Accuracy
? Low (0.1μμμμμA) Shutdown Current
? Dropout Voltage : 0.15V at 300mA when VOUT ≥≥≥≥≥ 3V
? Support Fixed Output Voltage 0.8V, 1.0V, 1.05V, 1.1V,
1.2V, 1.25V, 1.3V, 1.5V, 1.8V, 1.85V, 2V, 2.5V, 2.8V,
2.85V, 3V, 3.1V, 3.3V, 3.45V
? Current Limit Protection
? Over Temperature Protection
? Output Active Discharge Function
? TSOT-23-5 and ZQFN-4L 1x1 (ZDFN-4L 1x1) Packages
