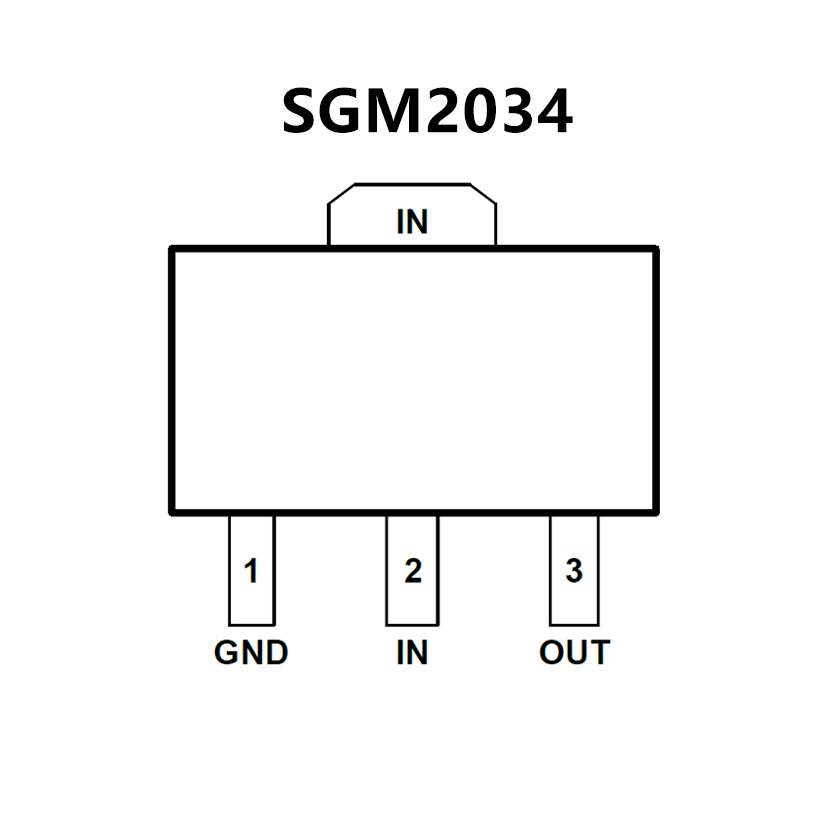

SGM2034.pdf? Output Voltage: 1.2V to 5.2V with 0.05V per Step
? Input Voltage: 1.7V to 7.5V
? High Output Voltage Accuracy: ±1.2%
? Low Dropout Voltage: 75mV (TYP) at 100mA
? Ultra Low Current Consumption: 1μA (TYP)
? 250mA Nominal Output Current
? Output Capacitor: Ceramic Capacitors of
0.1μF or Higher can be Used
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Built-In Over-Temperature Protection
? Built-In Over-Current Protection Circuit
? -40℃ to +85℃ Operating Temperature
? Range Available in Green SOT-23-3 and SOT-89-3 Packages

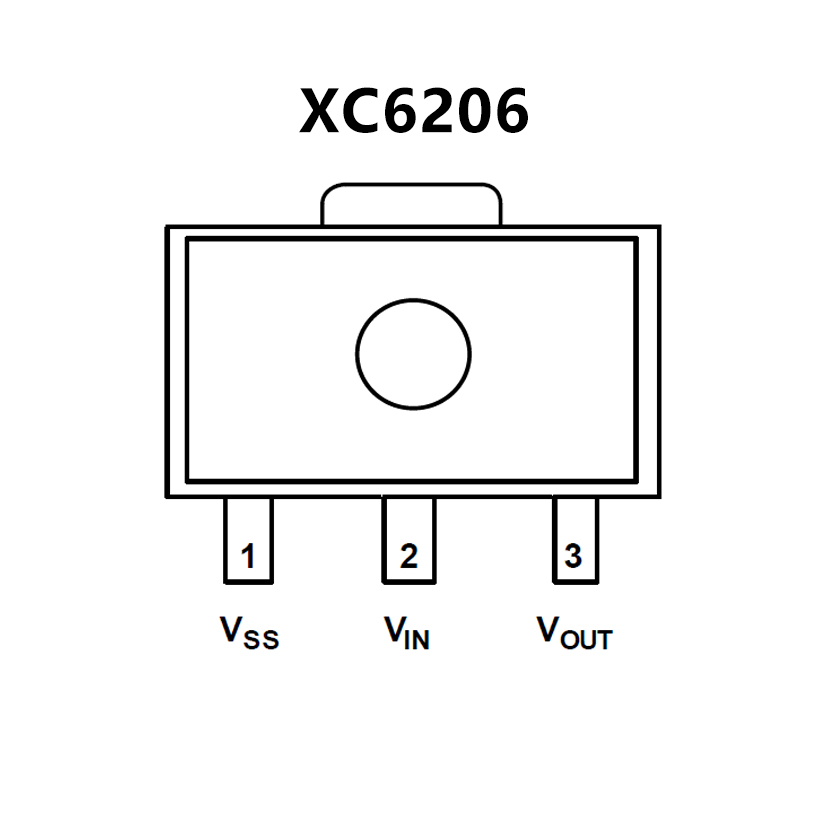

? Maximum Output Current Dropout Voltage
Maximum Operating Voltage Output Voltage Range
Highly Accurate
200mA (3.0V type)
250mV @ 100mA (3.0V type) : 6.0V
1.2V ~ 5.0V (0.1V increments) :±2%@VOUT≧1.5V
+30mV@VOUT<1.5V (+1% @VOUT>2.0V)
? Low Power Consumption Low ESR Capacitor Protection
? Operating Ambient Temperature Packages
1.0μA (TYP.) : Ceramic capacitor compatible
Current Limit Circuit Built-in
-40℃~ +85℃ : SOT-23
? Environmentally Friendly SOT-89
USP-6B : EU RoHS Compliant, Pb Free
