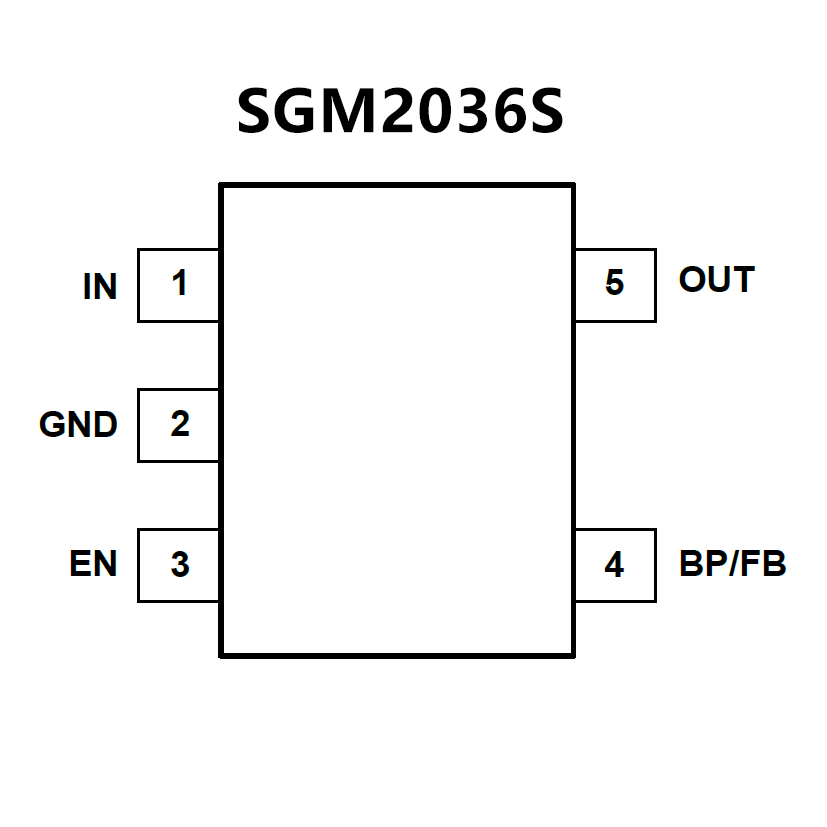

SGM2036S.pdf? Operating Input Voltage Range: 1.6V to 5.5V
? Fixed Output Voltages: 0.8V, 0.9V, 1.0V, 1.05V,
1.1V, 1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V,
2.2V, 2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V,
3.0V, 3.1V, 3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? 300mA Guaranteed Output Current
? Low Dropout Voltage: 154mV (TYP) at 300mA
? Low Noise: 40μVRMS (TYP)
? Low Supply Current: 25μA (TYP)
? Shutdown Supply Current: 0.04μA (TYP)
? Short Start-Up Time
? Short Auto-Discharge Function
? Thermal Shutdown Protection
? Short-Circuit Current Limit
? Fast Load and Line Transient Responses
? -40℃ to +125℃ Operating Temperature Range
? Available in Green XTDFN-1×1-4L,
SOT-23-5 and SC70-5 Packages

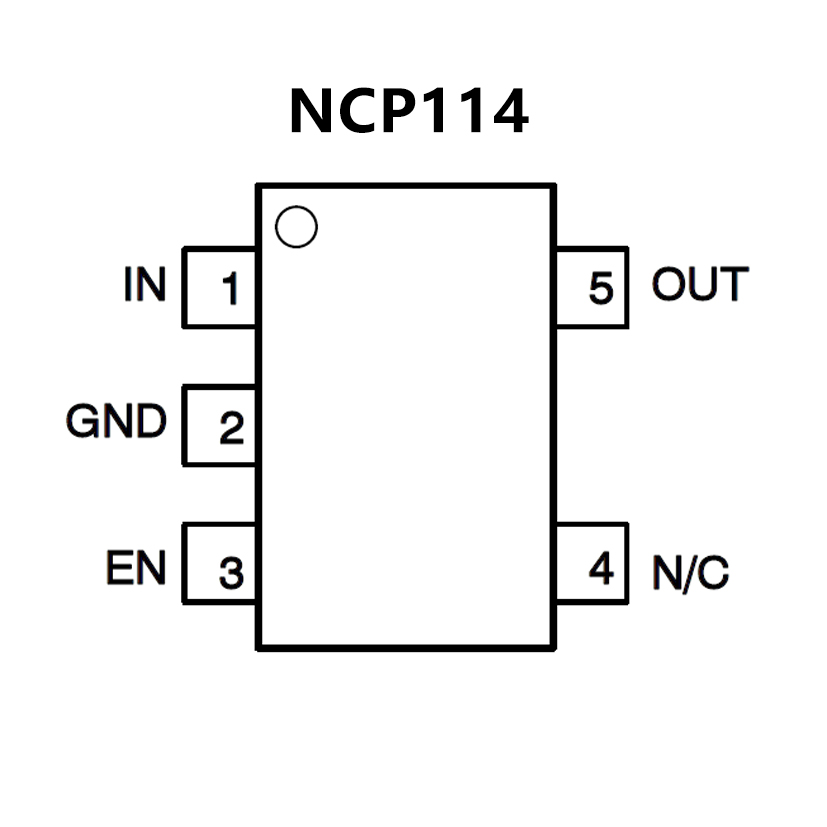

? Operating Input Voltage Range: 1.7 V to 5.5 V
? Available in Fixed Voltage Options: 0.75 V to 3.6
V Contact Factory for Other Voltage Options
? Very Low Quiescent Current of Typ. 50 A
? Standby Current Consumption: Typ. 0.1 A
? Low Dropout: 135 mV Typical at 300 mA
? ±1% Accuracy at Room Temperature
? High Power Supply Ripple Rejection: 75 dB at 1 kHz
? Thermal Shutdown and Current Limit Protections
? Stable with a 1 F Ceramic Output Capacitor
? Available in UDFN and TSOP Packages
? These are Pb?Free Devices
