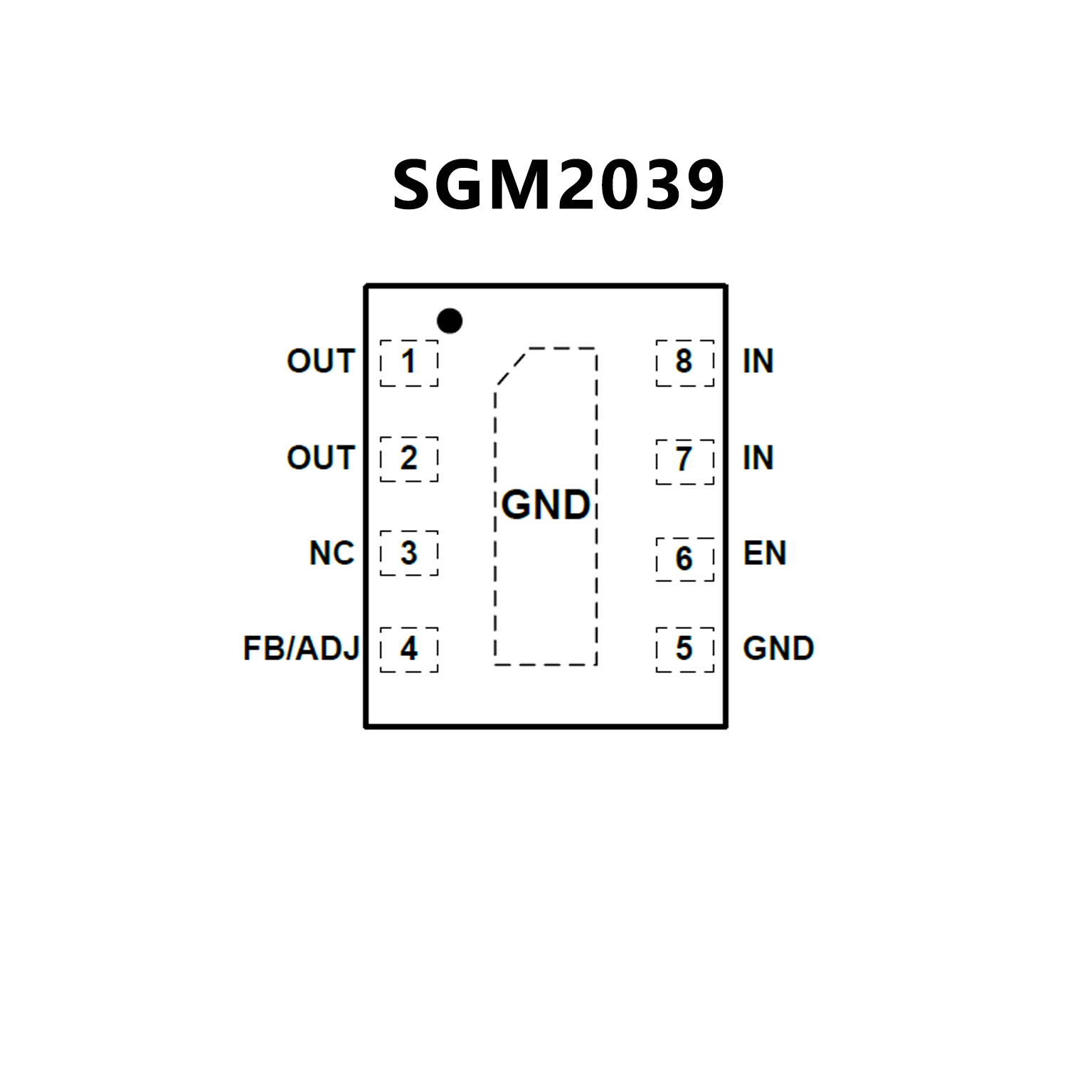

SGM2039.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Output Voltage Range: 0.8V to 4.2V
? Fixed or Adjustable Output Voltage Applications
? Quiescent Current: 55μA (TYP)
? Low Dropout: 103mV (TYP) at 1A, VOUT = 3.3V
? Stable with Small 1μF Ceramic Capacitors
? Over-Current Protection
? Built-in Soft-Start Circuit to Suppress InrushCurrent
? Thermal Shutdown Protection
? SGM2039A: with Output Automatic Discharge
? SGM2039B: without Output Automatic Discharge
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green XTDFN-1.6×1.2-8L Package
? Input Voltage Range : 0.8V to 5.5V
? Bias Voltage Range : 3V to 5.5V
? Available in Fixed and Adjustable (0.5V to 3V)
? Ultra Low Dropout Voltage : 60mV at 1A
? Accurate Output Voltage Accuracy (1%) Over Line,
Load @ 25°°°°°C
? Low Bias Input Current
? Typ 35μμμμμA in Operating Mode
? Typ 0.5μμμμμA in Shutdown Mode
? Output Active Discharge Function
? Enable Control
? Stable with a 10μμμμμF Output Ceramic Capacitor
? RoHS Compliant and Halogen/Pb Free
