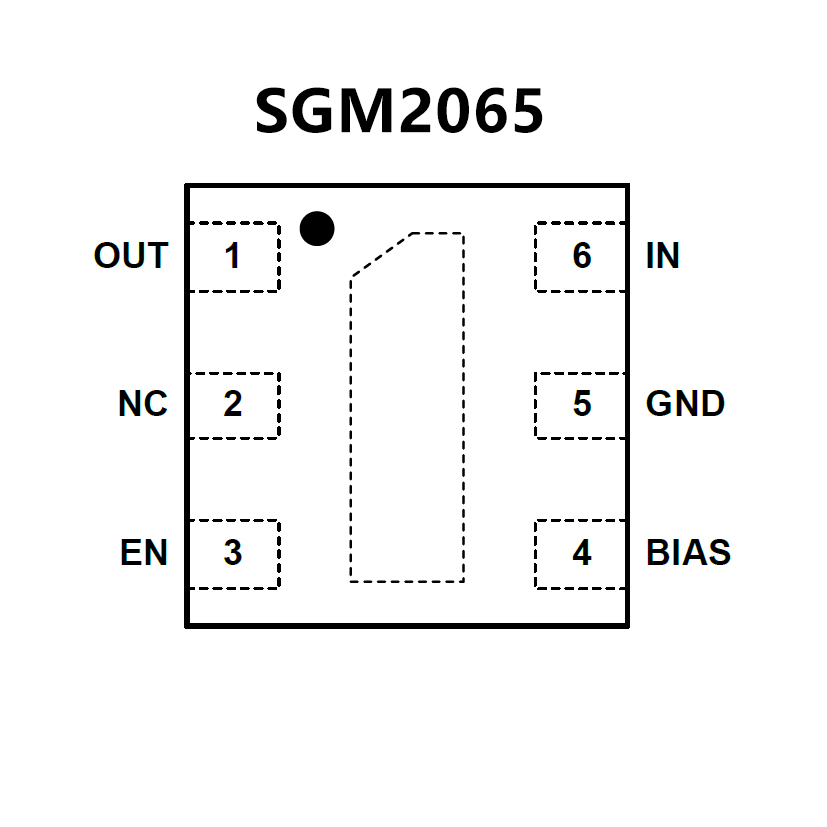

SGM2065.pdf? 1A Nominal Output Current
? Input Voltage Range: 0.8V to 5.5V
? Bias Voltage Range: 2.8V to 5.5V
? Adjustable Output Voltage Range: 0.8V to 3.5V
? Low Dropout Voltage: 240mV (TYP) at 1A
? Low Bias Input Current: 37μA (TYP)
? Very Low Bias Input Current in Shutdown: 0.01μA (TYP)
? Low Noise: 25μVRMS (TYP)
? Output Current Limit
? Thermal Shutdown Protection
? Fast Load Transient Response
? Logic Level Enable Input for ON/OFF Control
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green XTDFN-1.2×1.2-6L Package

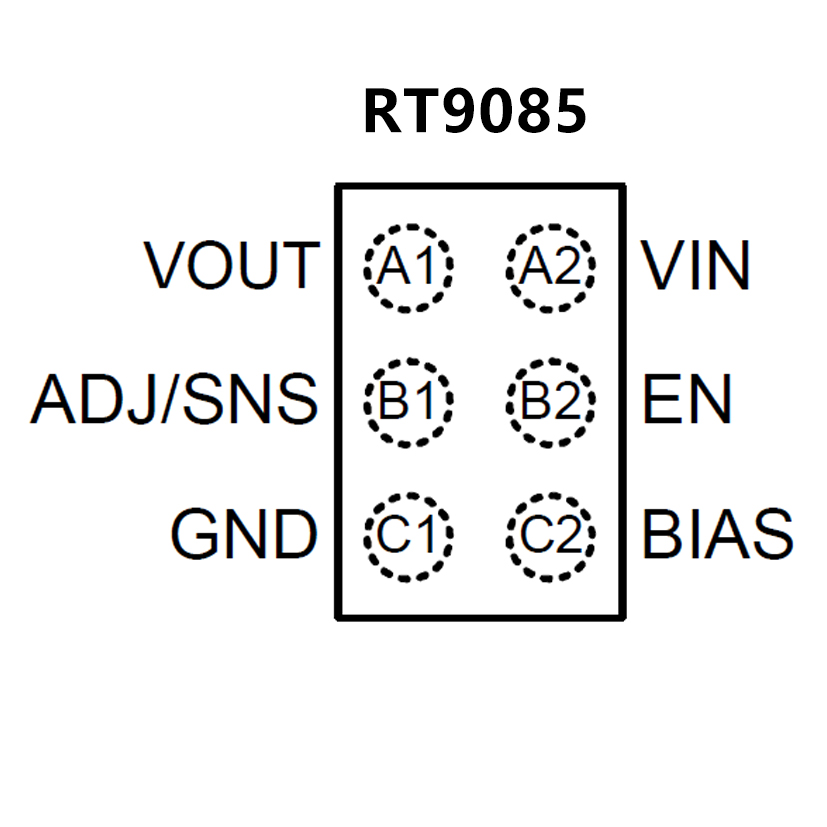

? Input Voltage Range : 0.8V to 5.5V
? Bias Voltage Range : 3V to 5.5V
? Available in Fixed and Adjustable (0.5V to 3V)
? Ultra Low Dropout Voltage : 60mV at 1A
? Accurate Output Voltage Accuracy (1%) Over Line,
Load @ 25°°°°°C
? Low Bias Input Current
? Typ 35μμμμμA in Operating Mode
? Typ 0.5μμμμμA in Shutdown Mode
? Output Active Discharge Function
? Enable Control
? Stable with a 10μμμμμF Output Ceramic Capacitor
? RoHS Compliant and Halogen/Pb Free
