SGM2079Q.pdf? AEC-Q100 Qualified for Automotive Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? Operating Input Voltage: 2.2V to 5.5V
? Adjustable Output Voltage: 0.8V to 5.0V
? Low Dropout Voltage: 140mV (TYP) at 1A
? Low Noise:
13μVRMS (TYP) at VOUT(NOM) = 1.1V (10Hz to 100kHz)
? Power Supply Rejection Ratio at VOUT(NOM) = 1.1V:
74dB (TYP) at 1kHz
66dB (TYP) at 10kHz
48dB (TYP) at 1MHz
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range

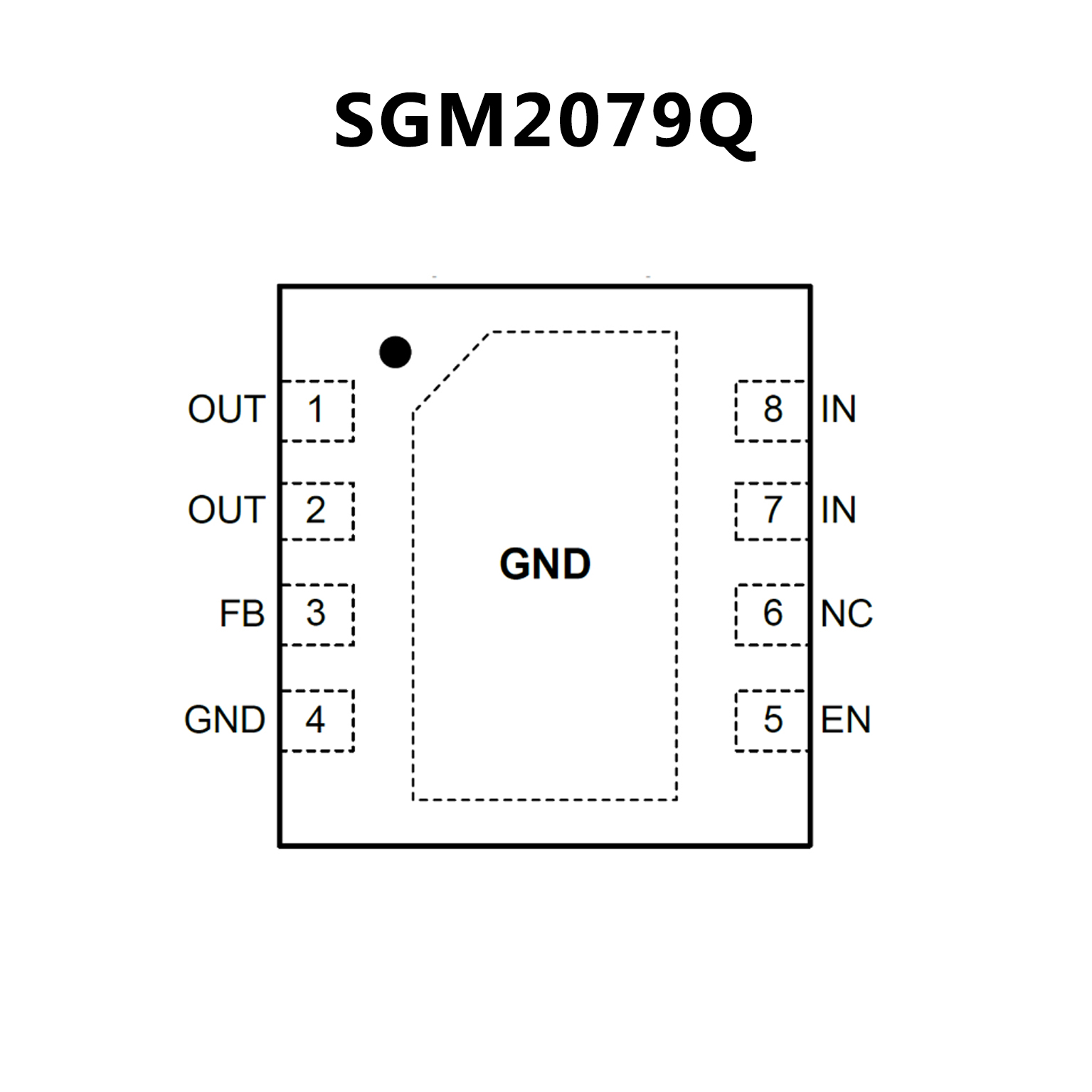

? Available in a Green TDFN-3×3-8JL Package
? Guaranteed I ndustrial/Automotive Temp Range Limits
? Up to 1A Output Current
? Low 140mV Dropout at 1A
? Low 130μA Ground Current
? Output Voltage Available from 0.8V to 5V
? Low Noise: 13μVRMS typical (10Hz to 100kHz)
? 63dB PSRR @1kHz
? Stable with Ceramic Capacitor
? Excellent Load/Line Transient Response
? Current Limiting and Thermal Protection

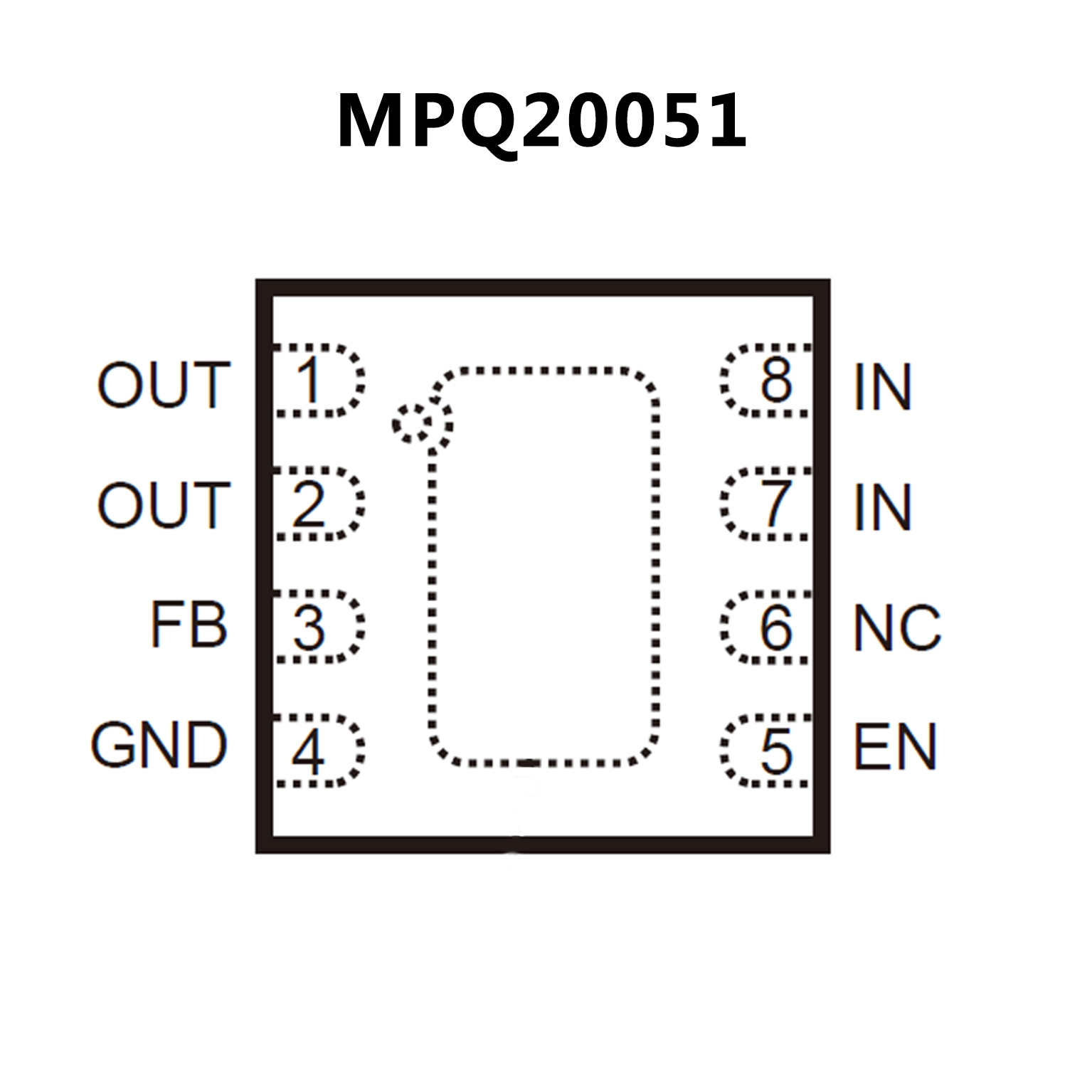

? Available in 3mm x 3mm 8-pin QFN Package
? Available in AEC-Q100 Qualified Grade 1
