SGM2566A.pdf? Input Voltage Range: 0.8V to 5.3V
? Ultra-Low On-Resistance:
RDSON = 17m? at VIN = 3.3V (VBIAS = 5V)
? 6A Maximum Continuous Switch Current
? Low Quiescent Current:
16μA (VBIAS = 5V) 10μA (VBIAS = 2.5V)
? Reverse Current Blocking Support
? Built-In Thermal Shutdown
? Short-Circuit Protection
? Soft-Start Function and Configurable Rise Time
? Enable Input or Alert Output (EN/nFAULT Pin)
? Low Control Input Threshold Enables
Use of 1.2V, 1.8V, 2.5V and 3.3V Logic
? SGM2566A: Quick Output Discharge
? -40℃ to +105℃ Operating Temperature Range
? Available in a Green TDFN-2×2-8L Package
? Integrated dual-channel load switch
? Input voltage range: 0.6 V to VBIAS
? VBIAS voltage range: 2.5 V to 5.7 V
? On-resistance
RON = 14 m? (typical)
at VIN = 0.6 V to 5 V, VBIAS = 5 V
RON = 18 m? (typical)
at VIN = 0.6 V to 2.5 V, VBIAS = 2.5 V
? 6-A maximum continuous switch current per channel
? Quiescent current for TPS22976, TPS22976N
37 μA (typical, both channels)
at VIN = VBIAS = 5 V
35 μA (typical, single channel)
at VIN = VBIAS = 5 V
? Quiescent current for TPS22976A
85 μA (typical, both channels)
at VIN = VBIAS = 5 V
83 μA (typical, single channel)
at VIN = VBIAS = 5 V
? Control input threshold enables use of
1.2-, 1.8-, 2.5-, and 3.3-V logic
? Configurable rise time
? Fast turn ON time (TPS22976A)
tON = 17μs at VIN = 1.05V
? Thermal shutdown
? Quick Output Discharge (QOD) (optional)

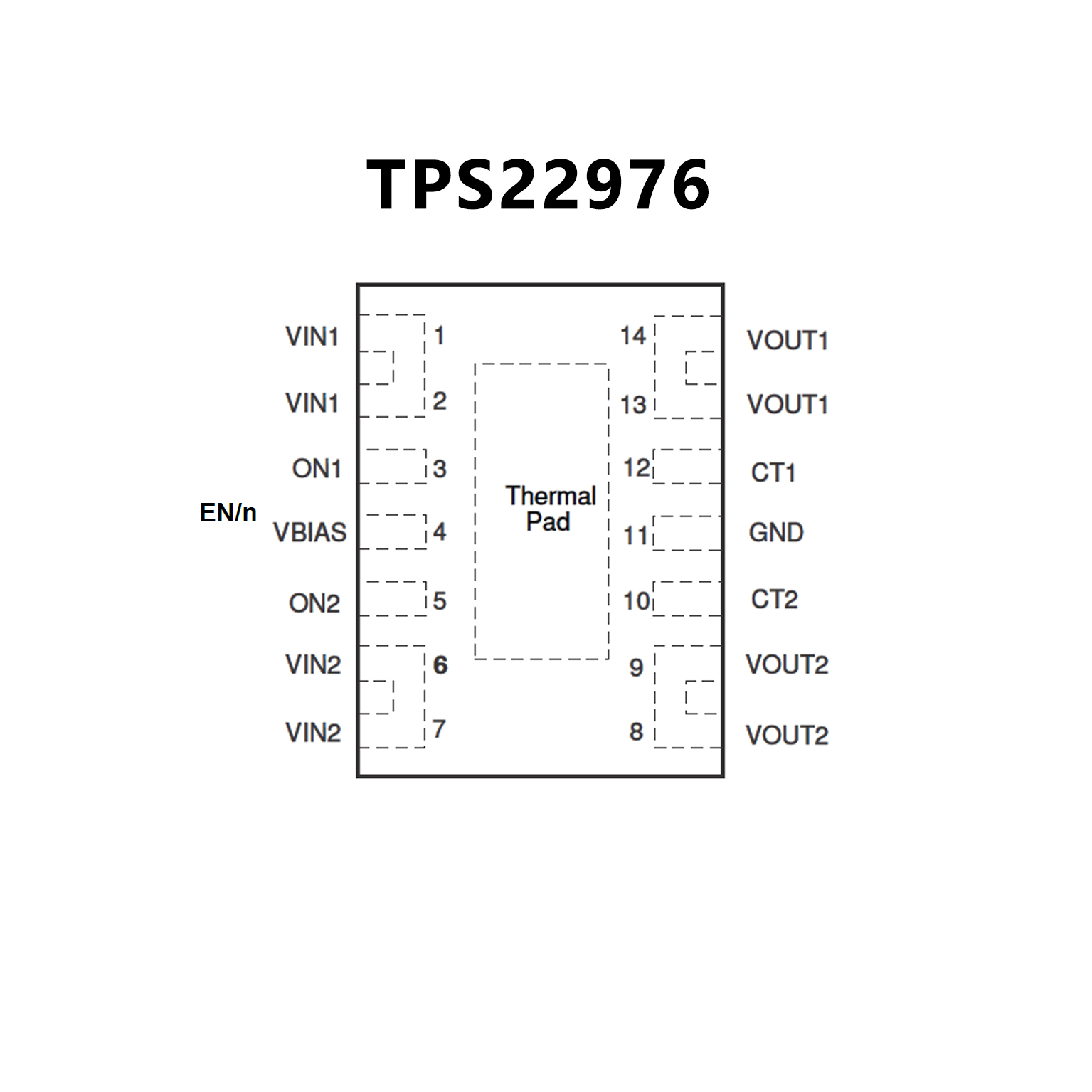

? SON 14-pin package with thermal pad
? ESD performance tested per JESD 22
2-kV HBM and 1-kV CDM
