USB Power-Distribution Switches, SGM2594B Replace APL3553.
SGM2594B.pdf優勢替代
FEATURES
? 62mW Power Switch On Resistance
? Wide Supply Voltage Range: 2.7V to 5.5V
? Fix Current Limit Protection
? Fast Over current Response: 2us (typ.)
? Over-Temperature Protection
? Fault Indication Output
? Enable Input
? Built-in Soft-Start
? Reverse Input-Output Voltage Protection: 25mV
(typ.)
? UL Approved-File No. E328191
? UL IEC/EN60950-1 CB Scheme Certified, No. DK-
59231-A2-UL
? TUV IEC/EN60950-1 Certified, No. 44 780 17
406748-010

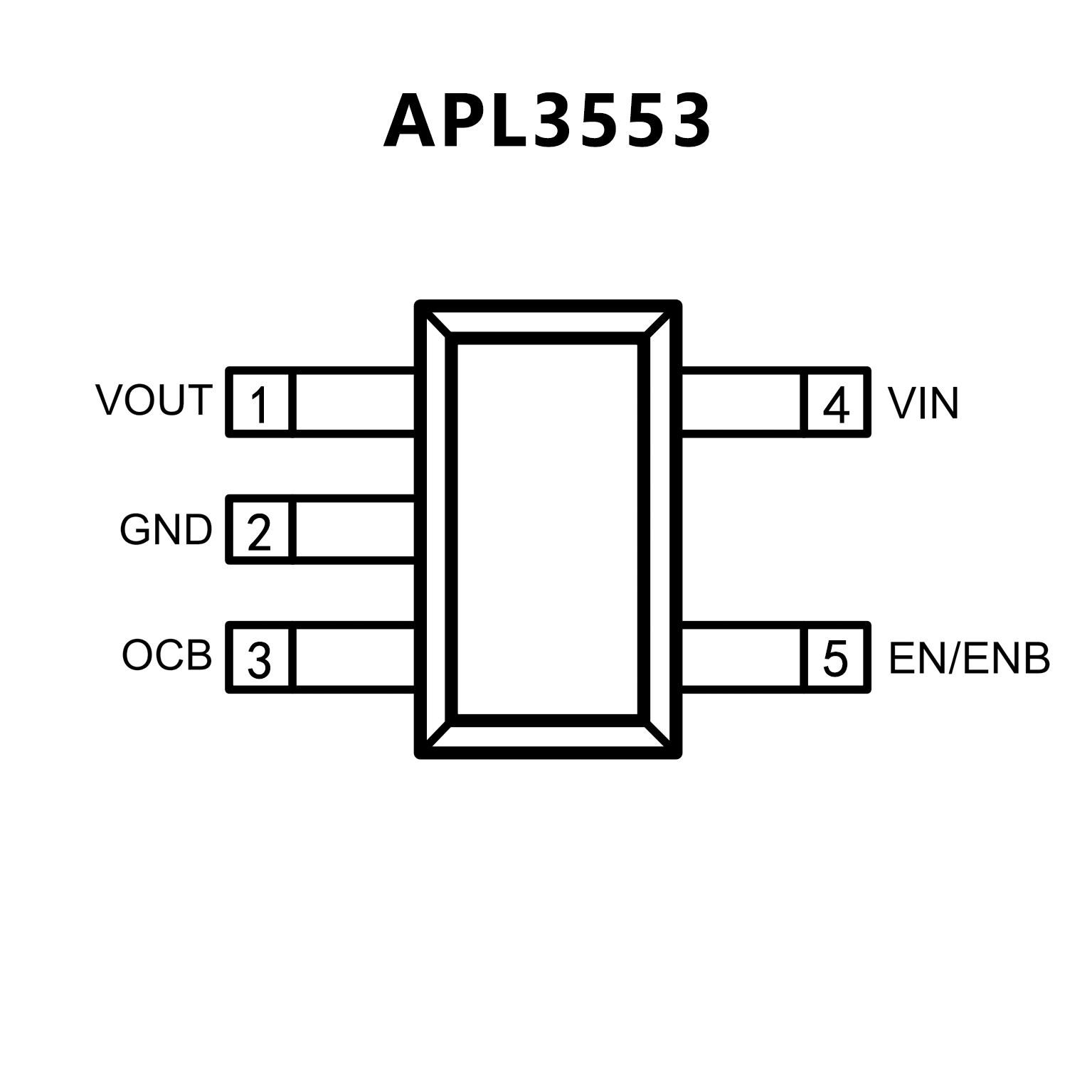

PIN CONFIGUTION
