Power Distribution Switch, SGM2594B Replace G524C3T11U.
SGM2594B.pdf優勢替代
FEATURES
? 70mΩ High-Side MOSFET
(G524A,G524B,G524C,G524D)
? Available with 4 Versions of Current Limits with
Foldback
? Operating Range:2.7V to 5.5V
? 1mS Typical Rise Time
? Fast Overcurrent Response -1.5μs (TYPICAL)
? Under voltage Lockout
? 130μA Quiescent Supply Current
? 1μA Maximum Shutdown Supply Current
? Logic Level Enable Pin, Available with
Active-High or Active-Low Version
? No Reverse Current when Power Off
? Deglitched Open-Drain Over-Current Flag Output ( OC )
? Available with or without Output Shutdown Pull-low Resister
? Output Reverse-Voltage Protection
? SOT-23-5, TSOT-23-6, MSOP-8 and MSOP-8 (FD) Packages
? UL Certification_#E232223
? CB Test Certification by IEC 60950-1:2005 (2nd Edition);
Am 1:2009

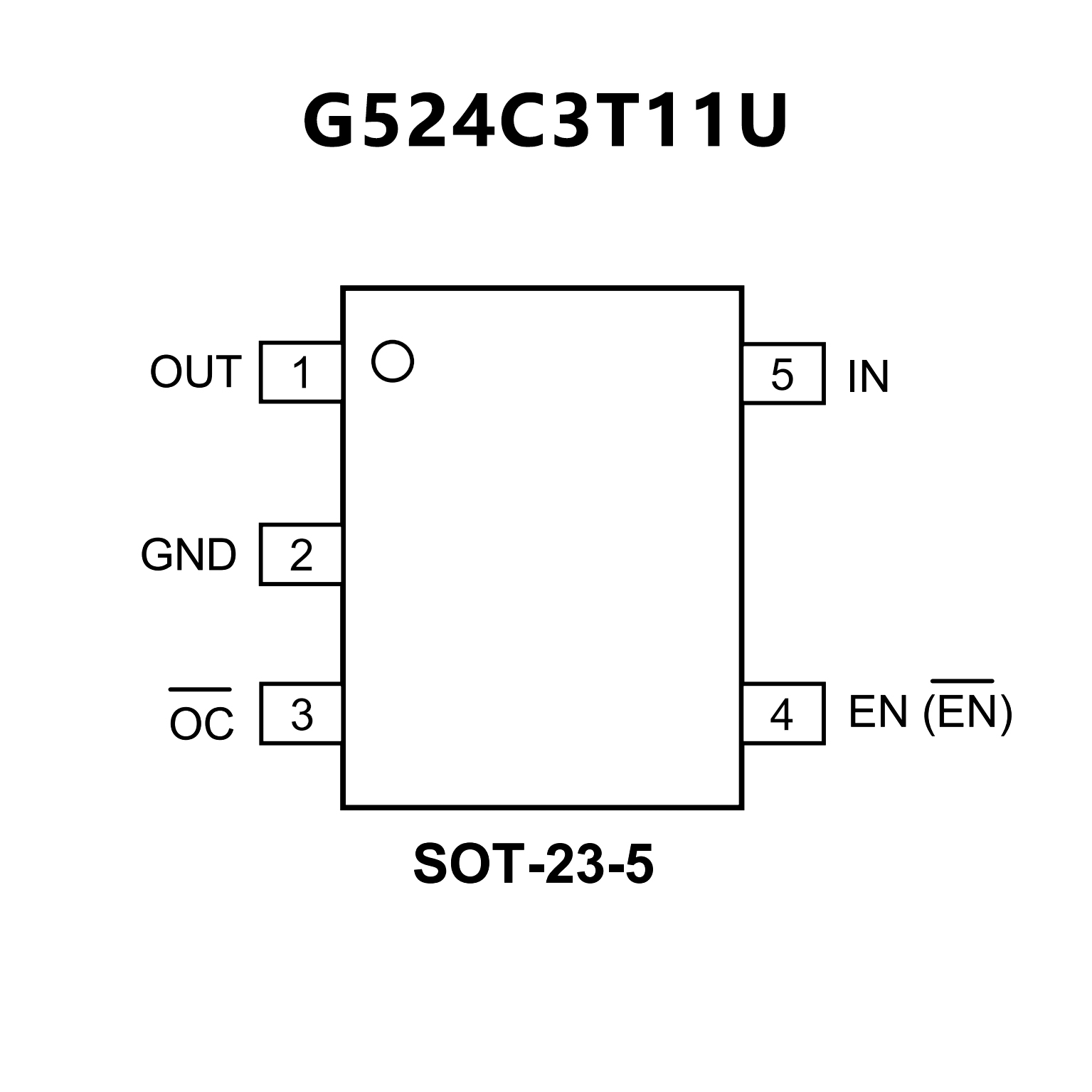

PIN CONFIGUTION
