Low-Drift, Low-Power, Small-Footprint Series Voltage Reference, SGM4024Q Replace REF4132-Q1.
SGM4024Q
SGM4024Q.pdf
SGM4024Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Input Voltage Range: 2.7V to 5.5V
? Fixed Output Voltage: 1.25V, 1.8V, 2.5V, 3V, 3.3V,
4.096V, 5V
? High Initial Accuracy: ±0.05% (MAX)
? Low Temperature Drift: 10ppm/℃ (MAX)
? Low Quiescent Current: 72μA (TYP)
? High Output Current: ±10mA
? Stable Output CL Range: 0.1μF to 10μF
? Low Noise: 6μVP-P/V at 0.1Hz to 10Hz
? Long-Term Stability: 50ppm at 1000h
? Available in a Green SOT-23-5 Package

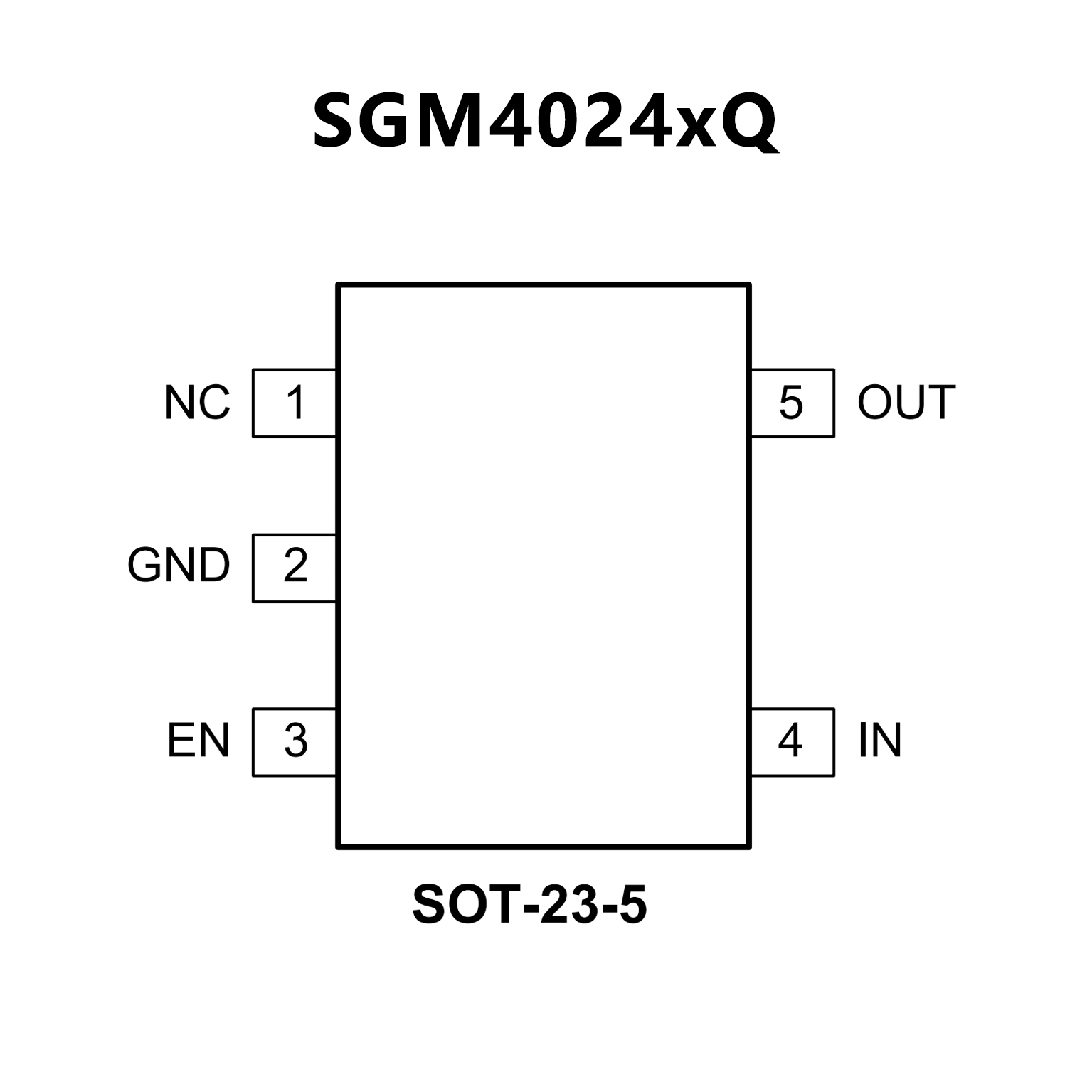

PIN CONFIGUTION
優勢替代
FEATURES
? Qualified for automotive applications
? AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40oC to +125oC
ambient operating temperature range
– Device HBM ESD classification level 2
? Voltage options: 2.5V, 3V, 3.3V, 4.096V, 5V
? Initial accuracy: ±0.05% (maximum)
? Temperature coefficient : A grade: 12 ppm/°C
(maximum) B grade: 30 ppm/°C (maximum)
? Operating temperature range: ?40°C to +125°C
? Output current: ±10 mA
? Low quiescent current: 100 μA (maximum)
? Output 1/f noise (0.1 Hz to 10 Hz): 15 μVPP/V
? Excellent long-term stability 30 ppm/1000 hrs
? Small footprint 5-pin SOT-23 package
PIN CONFIGUTION
