SGM41283.pdf? 2.7V to 5.5V Input Voltage
? 72V/0.6Ω NFET with 1.1A Limit
? Up to 70V Output Voltage
? 50ns APD Current Monitoring Response Speed
? 850kHz Fixed Switching Frequency
? Internal Compensation and Soft-Start
? High-side APD Current Monitor
? High-side Current Monitor Ratio:10:1 and 2:1
? Thermal-Shutdown Protection
? Programmable APD Over-Current Limit and Protection
? -40℃ to +85℃ Operating Temperature Range

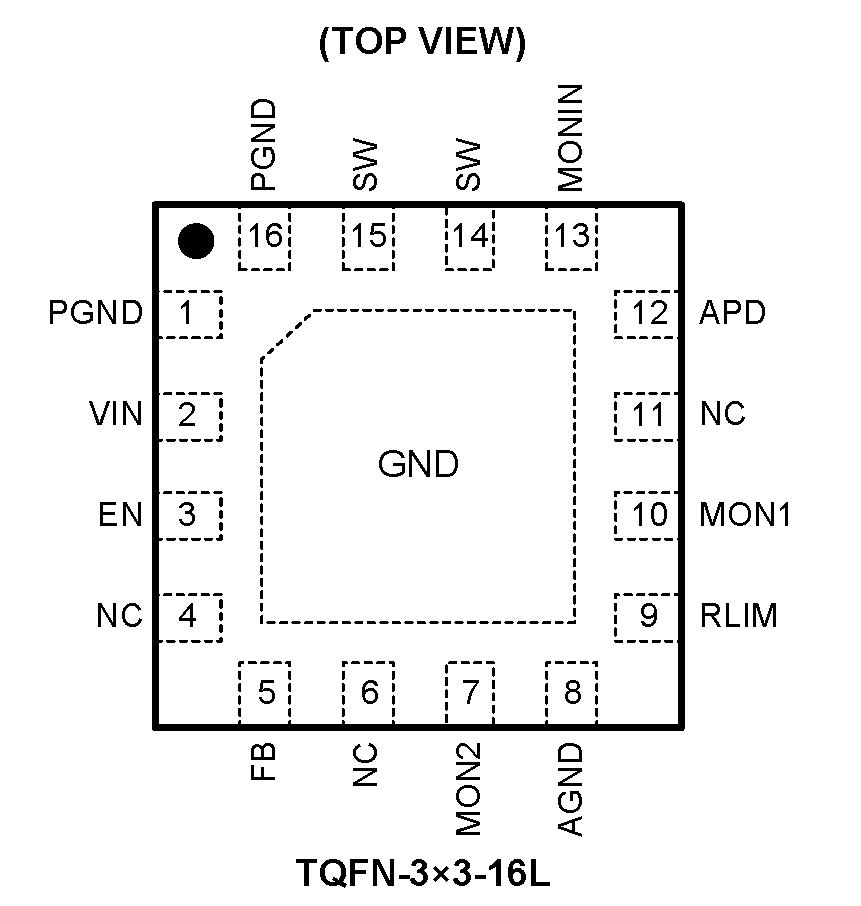

? Available in Green TQFN-3×3-16L Package
? High APD Voltage: Up to 70V
? Integrated Schottky Diode
? 75V, 370mA Internal Switch
? High Side Fixed Voltage Drop APD Current Monitor
? Adjustable Frequency: 250kHz to 2MHz
? Frequency Synchronization
? Wide VIN Range: 2.7V to 20V
? Constant-Voltage and Constant-Current Regulation
? Programmable Current Limit Protection
? Surface Mount Components
? Low Shutdown Current <1μA
? CTRL Pin Allows Output Adjustment
