Low Voltage Adjustable Precision Shunt Regulator, SGM431VQ Replace TLV431-Q1
SGM431VQ.pdf優勢替代
FEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified With the Following Results:
? Low-Voltage Operation, VREF = 1.24 V
? Adjustable Output Voltage, VO = VREF to 6 V
? Reference Voltage Tolerances at 25°C
0.5% for TLV431B 1% for TLV431A
? Typical Temperature Drift
11 mV (–40°C to 125°C)
? Low Operational Cathode Current, 80 μA Typ
? 0.25-Ω Typical Output Impedance
? See TLVH431 and TLVH432 for:
Wider VKA (1.24 V to 18 V) and IK (80 mA)
Multiple Pinouts for SOT-23-3 and SOT-89 Packages

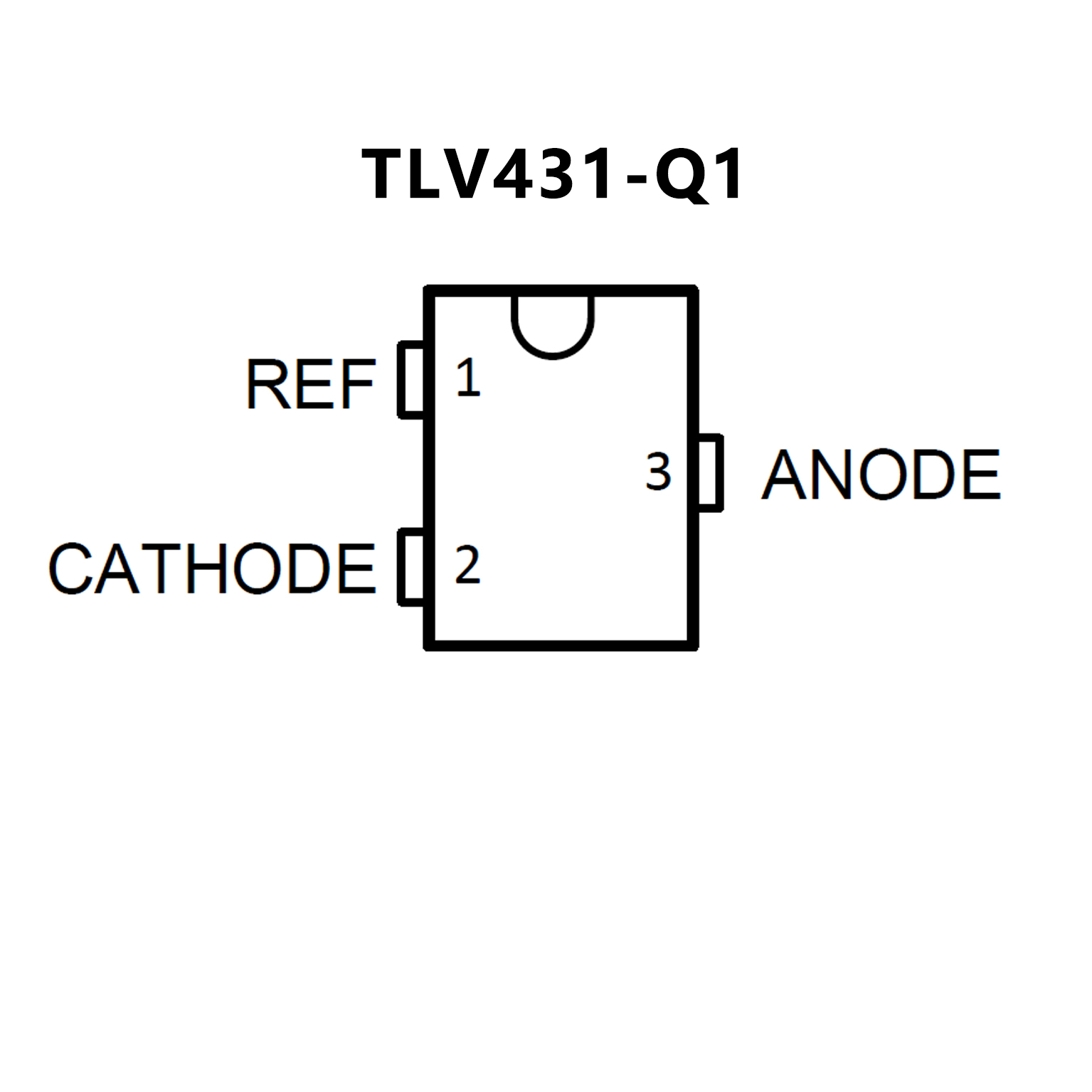

PIN CONFIGUTION
