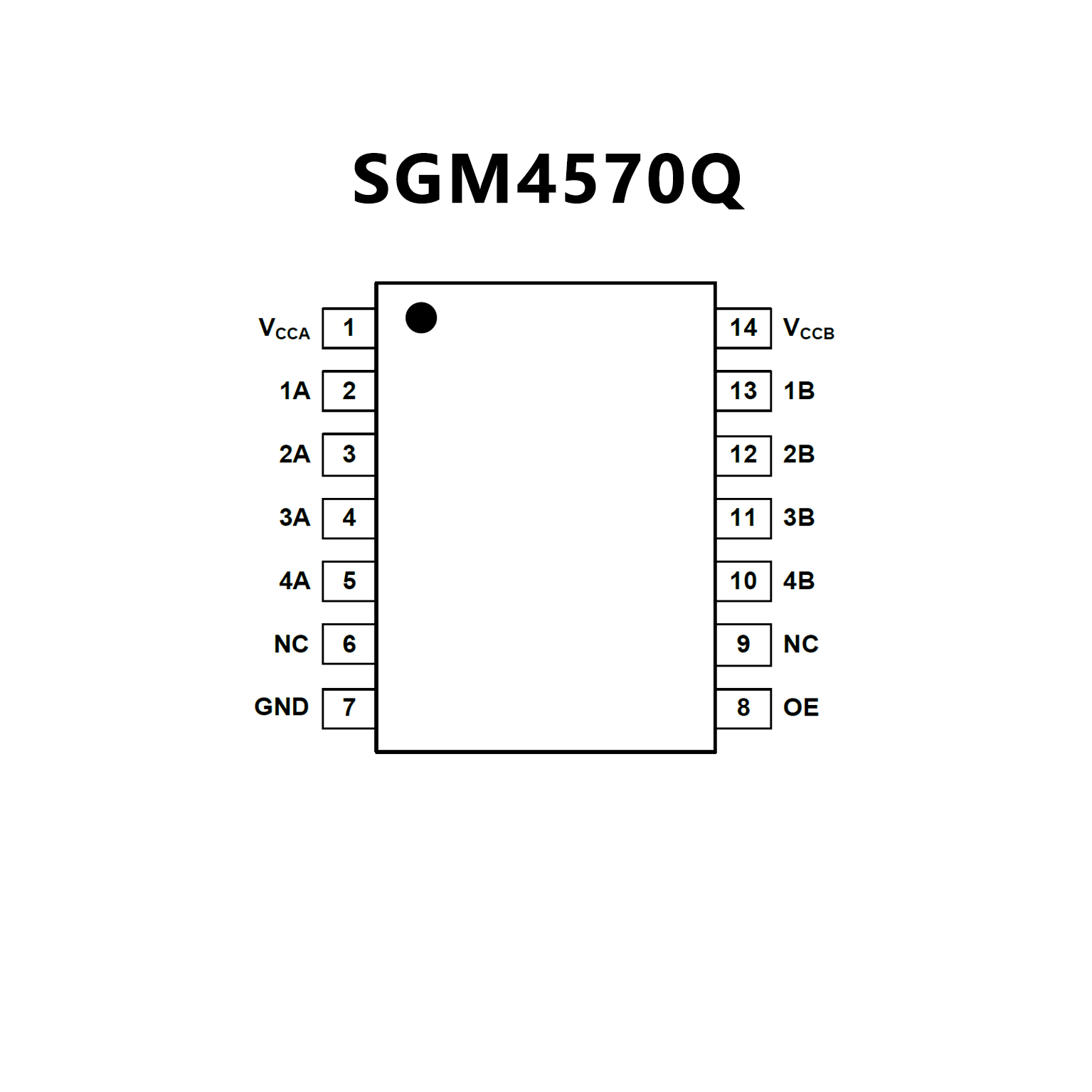

SGM4570QTS14G.pdf? AEC-Q100 Qualified for Automotive
Applications Device Temperature Grade 1
TA = -40℃ to +125℃
? VCCA Supply Voltage Range: 1.65V to 3.6V
? VCCB Supply Voltage Range: 2.3V to 5.5V
? Inputs Accept Voltages up to 5.5V
? Push-Pull Data Rates: 24Mbps (MAX)
? Support Partial Power-Down Mode
? Available in a Green TSSOP-14 Package

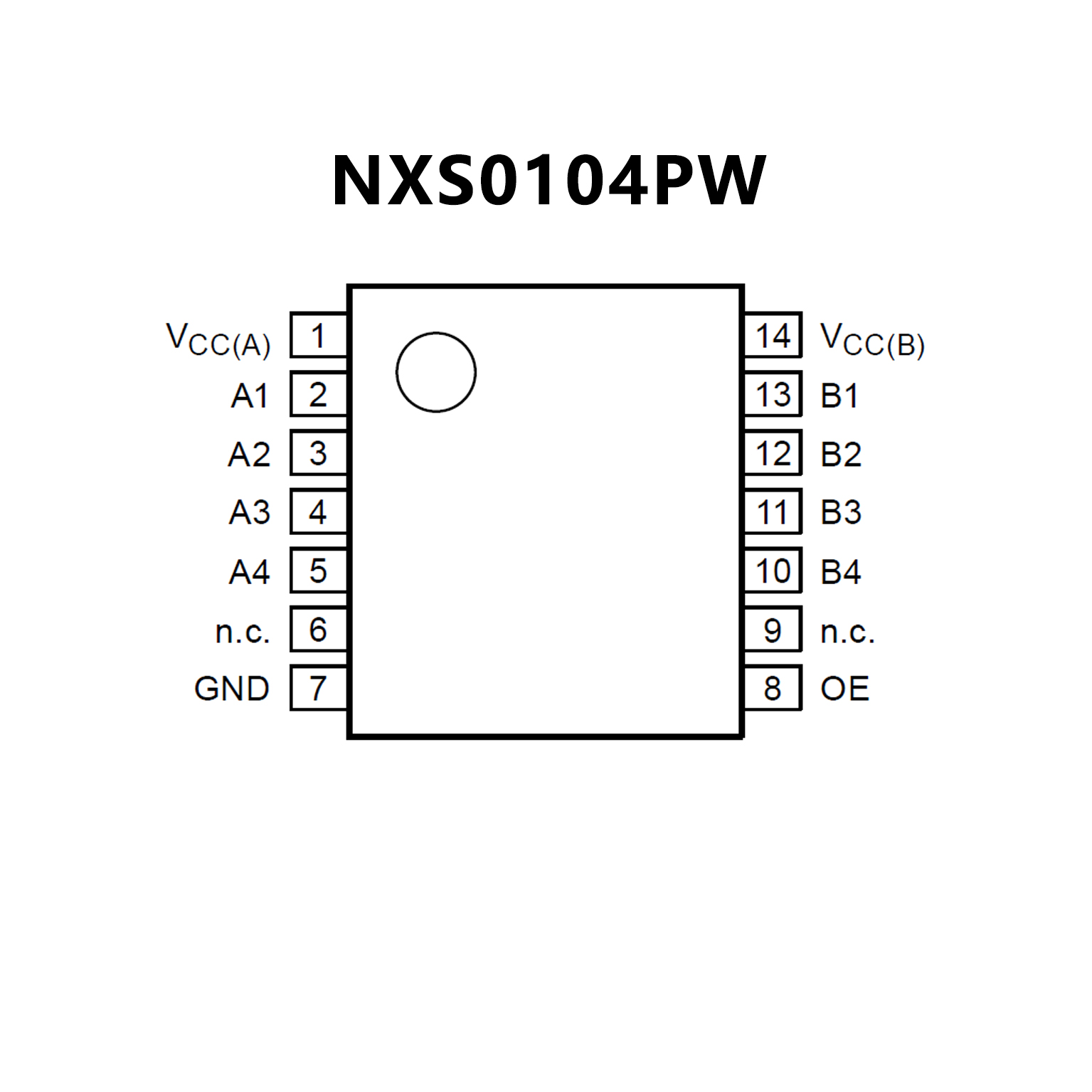

? Automotive product qualification
in accordance with AEC-Q100 (Grade 1)
? Specified from -40 °C to +85 °C
and from -40 °C to +125 °C
? Wide supply voltage range:
? VCC(A): 1.65 V to 3.6 V and VCC(B): 2.3 V to 5.5 V
? Maximum data rates:
? Push-pull: 24 Mbps
? IOFF circuitry provides partial
Power-down mode operation
? Inputs accept voltages up to 5.5 V
? ESD protection:
? HBM: ANSI/ESDA/Jedec JS-001
Class 2 exceeds 2.5 kV for A port
? HBM: ANSI/ESDA/Jedec JS-001
Class 3B exceeds 15 kV for B port
? MIL-STD-883, method 3015 Class
2 exceeds 2.5 kV for A port
? MIL-STD-883, method 3015
Class 3B exceeds 15 kV for B port
? IEC61000-4-2 contact discharge
exceeds 8000 V for B port
? Latch-up performance exceeds
100 mA per JESD 78B Class II
? Multiple package options
? DHVQFN package with Side-Wettable
Flanks enabling Automatic Optical
Inspection (AOI) of solder joints
