4V to 36V Input, 1A Synchronous Buck Converter in SOT Package, SGM61310 Replace LV2843.
SGM61310
SGM61310.pdf
SGM61310.pdfFEATURES
? Documentation Available to Aid Functional
Safety System Design
? Wide 4V to 36V Input Voltage Range
? Up to 1A Continuous Output Current
? Minimum Switching On-Time: 60ns
? 700kHz Fixed Switching Frequency
? 98% Maximum Duty Cycle
? Monotonic Startup with Pre-Biased Output
? Internal Short-Circuit Protection with Hiccup Mode
? Precision Enable
? Integrated Synchronous Rectification
? Internal Compensation for Ease of Use
? Pin-to-Pin Compatible with SGM61410 and SGM61306
? SGM61310A: PSM at Light Load Condition
? SGM61310B: FPWM at Light Load Condition
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-6 Package

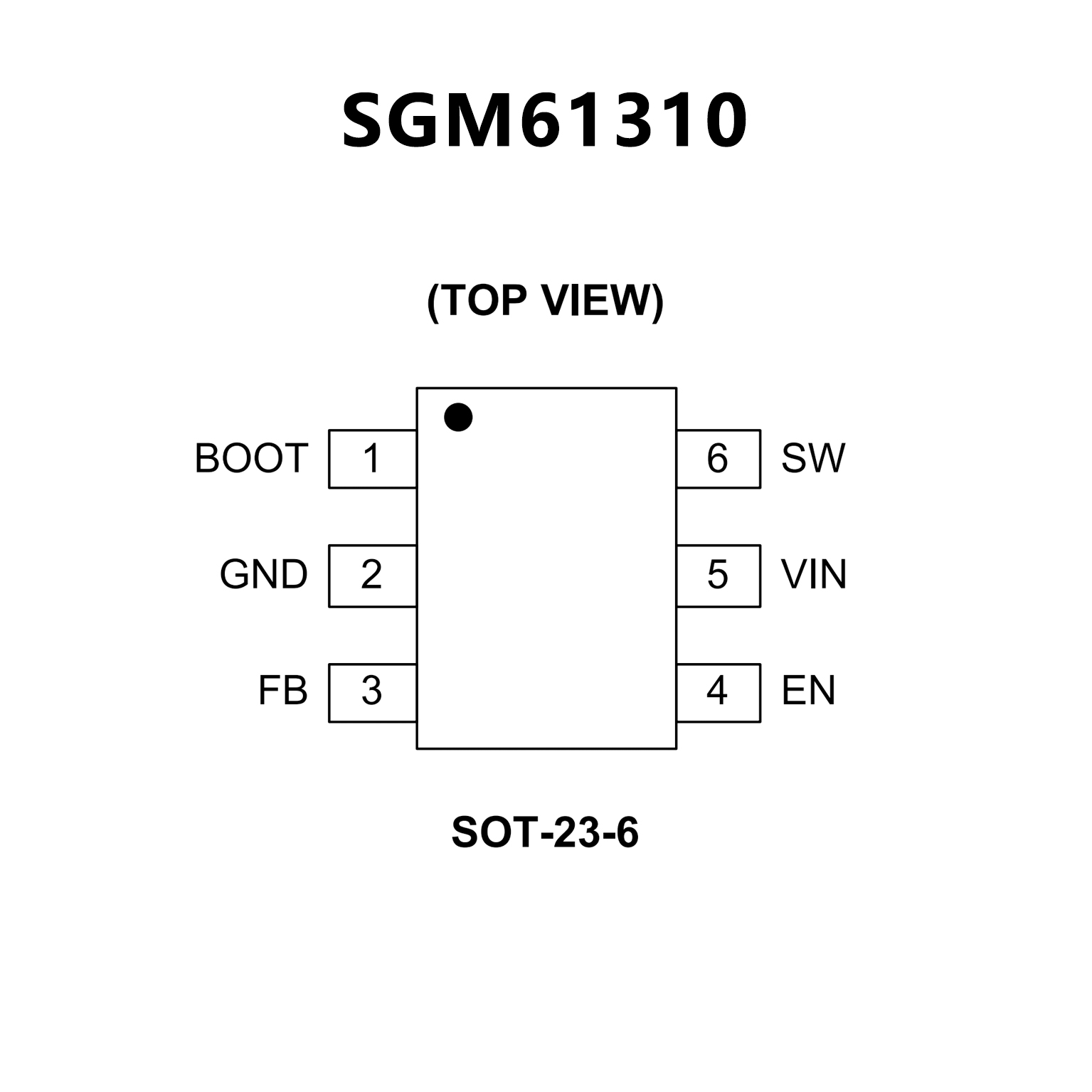

PIN CONFIGUTION
