SGM61410.pdf? 1μA Shutdown Current (12μA Quiescent Current)
? Wide 4.5V to 45V Operating Input Voltage Range
? Synchronously Rectified 1A??? Current Output.
? SGM61410: 1.2MHz Switching Frequency
? Compensation Inside
? Internal Soft-Start
? Output Adjustable from 0.8V to 20V
? Cycle-by-cycle current limit and Short-circuit protection
? Output OVP and Thermal Shutdown

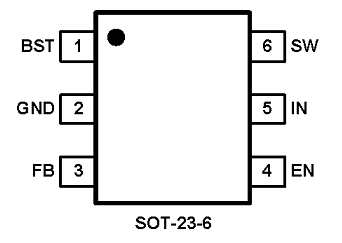

? Available in Green SOT-23-6 Package
? -40℃ to +125℃ Operating Temperature Range
? Low RDS(ON) for Internal Switches (Top/Bottom):
380mΩ/180mΩ
? 4.5-40V Input Voltage Range
? 1A Output Current Capability
? 2MHz Fixed Switching Frequency
? 0.8V±1.0% Reference Voltage
? Low Quiescent Current
? Internal Soft-start Limits the Inrush Current
? Hic-cup Mode Output Short Circuit Protection
? Thermal Shutdown and Auto Recovery

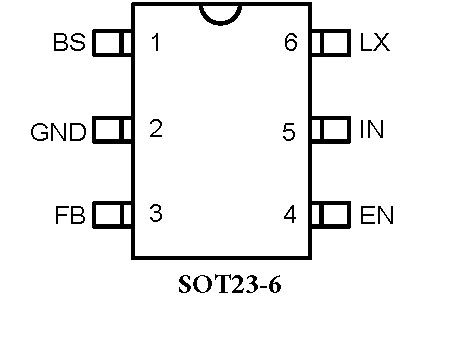

? Compact Package: SOT23-6
