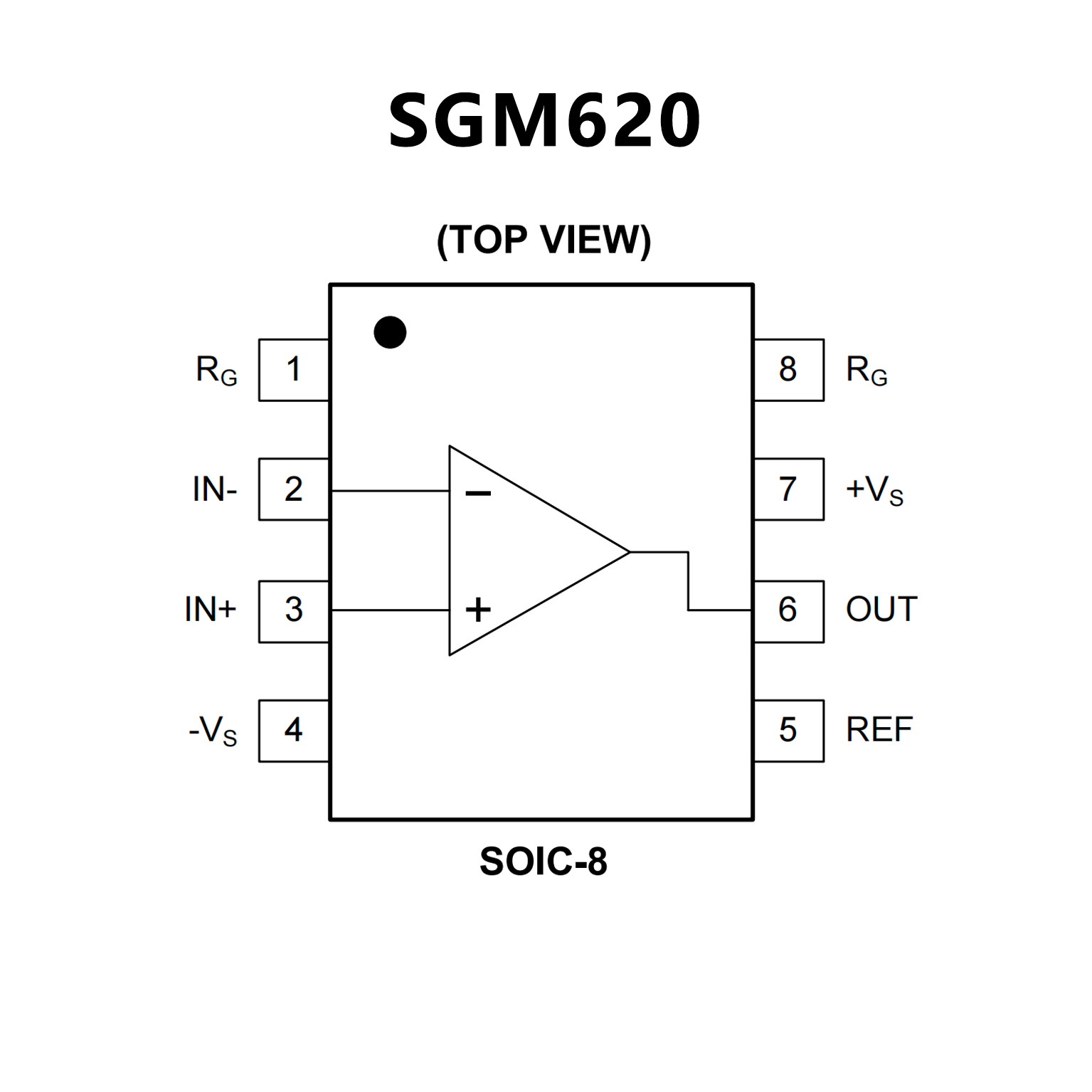

SGM620.pdf? Single External Resistor Gain Set (Set Gain from 1 to 10000)
? Input Offset Voltage: 150μV (MAX)
? Input Bias Current: 15nA (TYP)
? Common Mode Rejection Ratio: 105dB (TYP) (G = 10)
? Input Voltage Noise: 6nV/√Hz at 1kHz
? 0.1Hz to 10Hz Voltage Noise: 0.4μVP-P
? Bandwidth: 140kHz (G = 100)
? Settling Time to 0.01%: 10μs (G = 100)
? Rail-to-Rail Output
? Support Single or Dual Power Supplies: 4.6V to 36V or ±2.3V to ±18V
? Low Power Supply Current: 1.3mA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-8 Package
? Low Power Consumption Is Ideal for Remote-Sensing
and Battery-Powered Applications
? +2.7V Single-Supply Operation
? Low Power Consumption
? 93μA Supply Current
? 8μA Shutdown Current

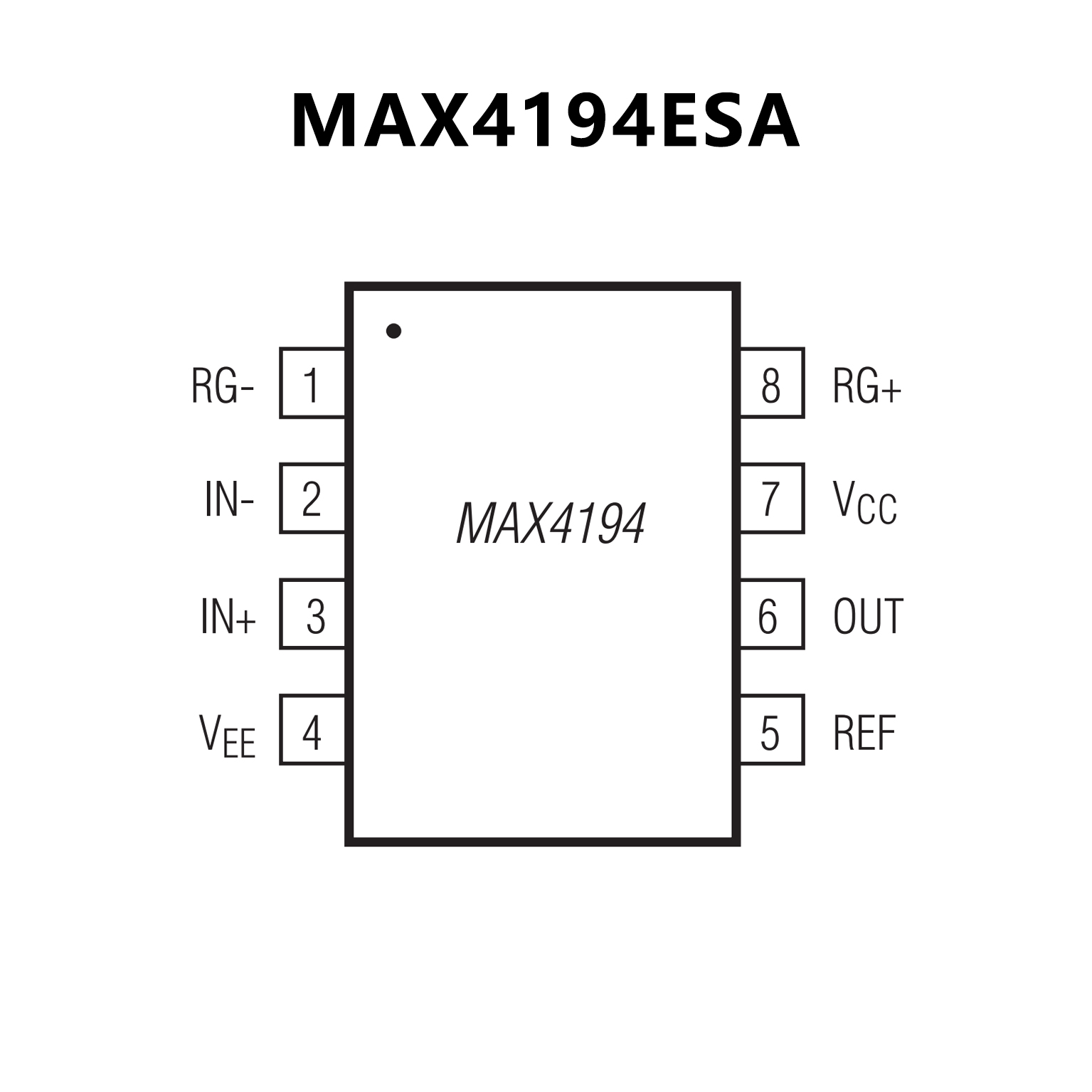

(MAX4195/MAX4196/MAX4197)
? Precision Specifications Maximize Sensor Peformance
? High Common-Mode Rejection: 115dB (G = +10V/V)
? Input Common-Mode Range Extends 200mV Below
GND
? Low 50μV Input Offset Voltage (G ≥ +100V/V)
? Low ±0.01% Gain Error (G = +1V/V)
? 250kHz -3dB Bandwidth (G = +1V/V, MAX4194)
? Rail-to-Rail Outputs
