1MHz,400mA Boost DC/DC Converter, Replace LT1617
SGM6601
SGM6601.pdf
SGM6601.pdfFEATURES
? Input Voltage Range: 1.8V to 5.5V
? Adjustable Output Voltage Range up to 38V
? 400mA Internal Switch Current
? Up to 1MHz Switching Frequency
? 20μA Typical No-Load Quiescent Current
? 0.1μA Typical Shutdown Current
? Internal Soft-Start Function
? -40℃ to +85℃ Operating Temperature Range

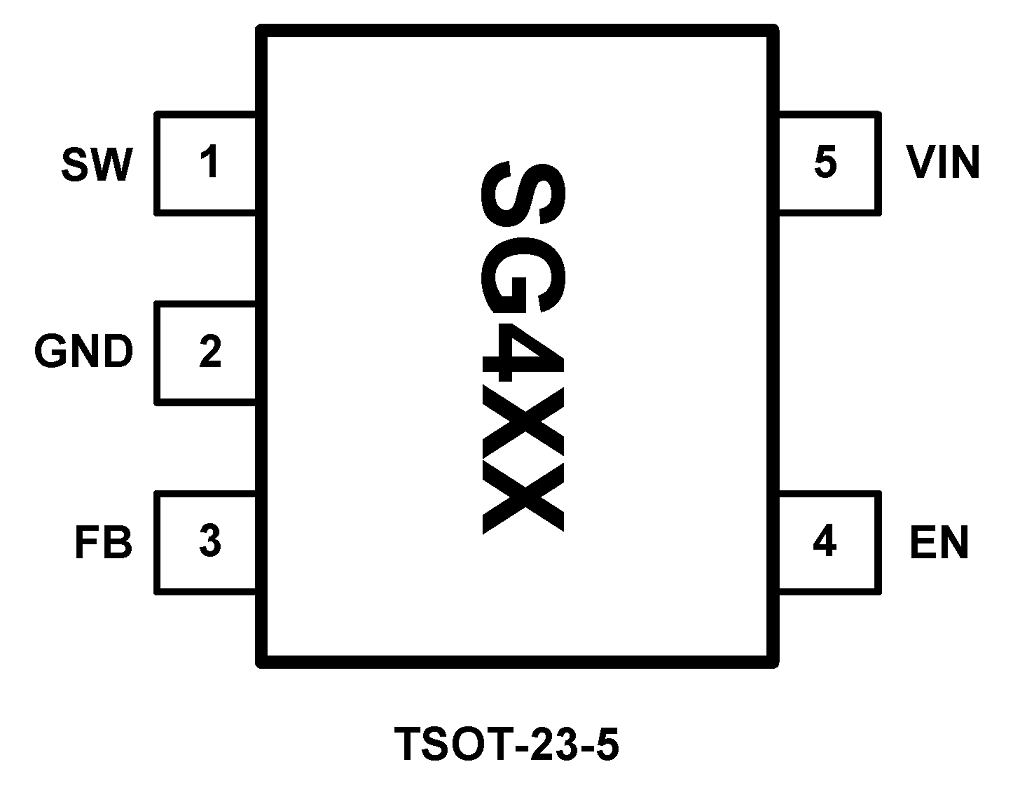

PIN CONFIGUTION
優勢替代
FEATURES
? Low Quiescent Current:
? 20mA in Active Mode
? <1mA in Shutdown Mode
? Operates with VIN as Low as 1V
? Low VCESAT Switch: 250mV at 300mA
? Uses Small Surface Mount Components
? High Output Voltage: Up to –34V
? Tiny 5-Lead SOT-23 Package
PIN CONFIGUTION
