SOT25 Boost DCDC For LED Bias Voltage, SGM6601 Replace MP1540.
SGM6601
SGM6601.pdf
SGM6601.pdfFEATURES
? Input Voltage Range: 1.8V to 5.5V
? Adjustable Output Voltage Range up to 38V
? 400mA Internal Switch Current
? Up to 1MHz Switching Frequency
? 20μA Typical No-Load Quiescent Current
? 0.1μA Typical Shutdown Current
? Internal Soft-Start Function
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TSOT-23-5 and TDFN-2×2-6L
Packages

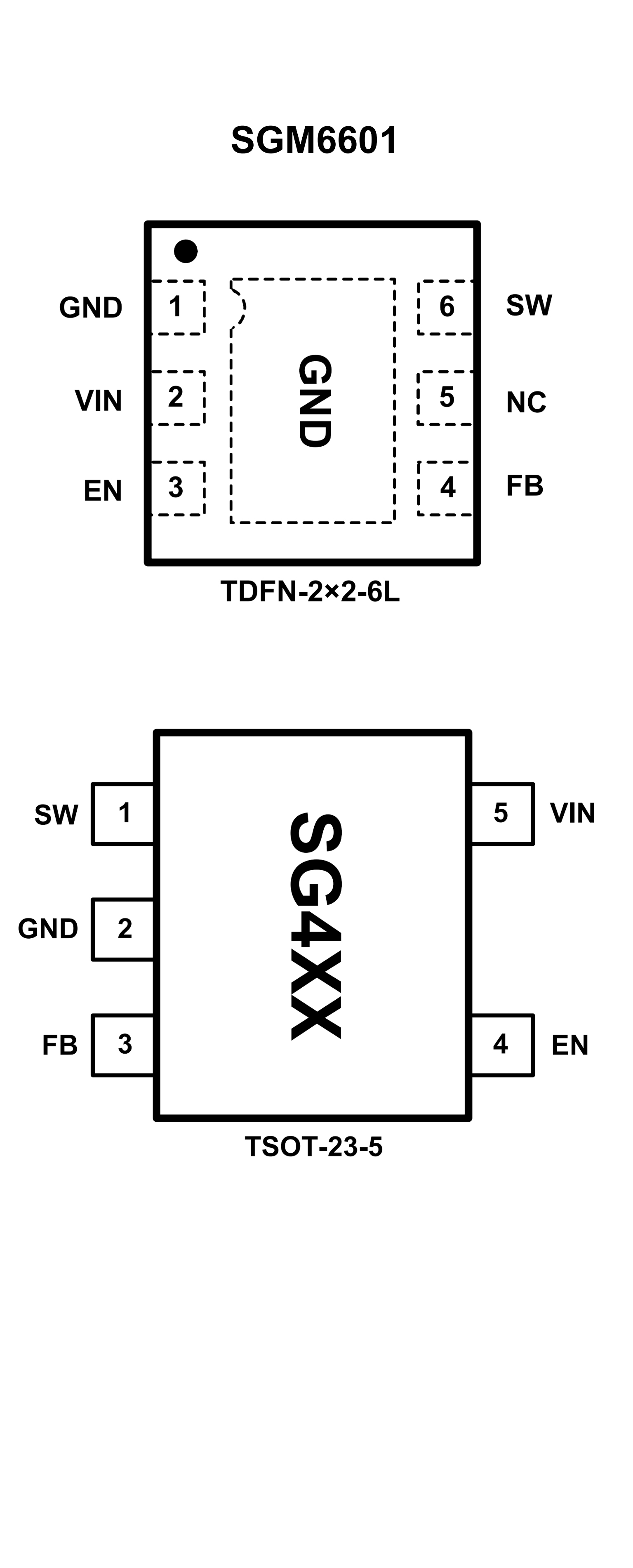

PIN CONFIGUTION
優勢替代
FEATURES
? On Board Power MOSFET
? Uses Tiny Capacitors and Inductors
? 1.3MHz Fixed Switching Frequency
? Internal Soft-Start
? Operates with Input Voltage as Low as
2.5V and Output Voltage as High as 18V
? 12V at 200mA from 5V Input
? UVLO, Thermal Shutdown
? Internal Current Limit
? Available in a TSOT23-5 Package

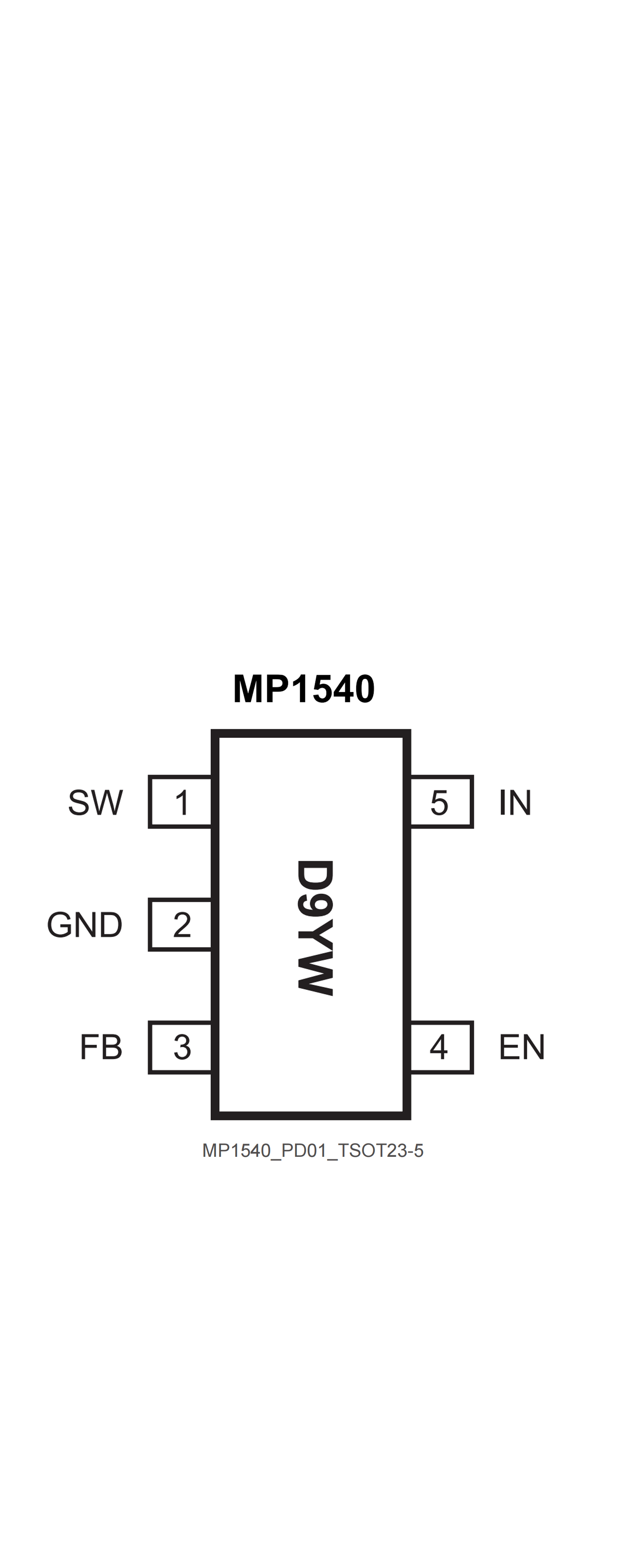

PIN CONFIGUTION
