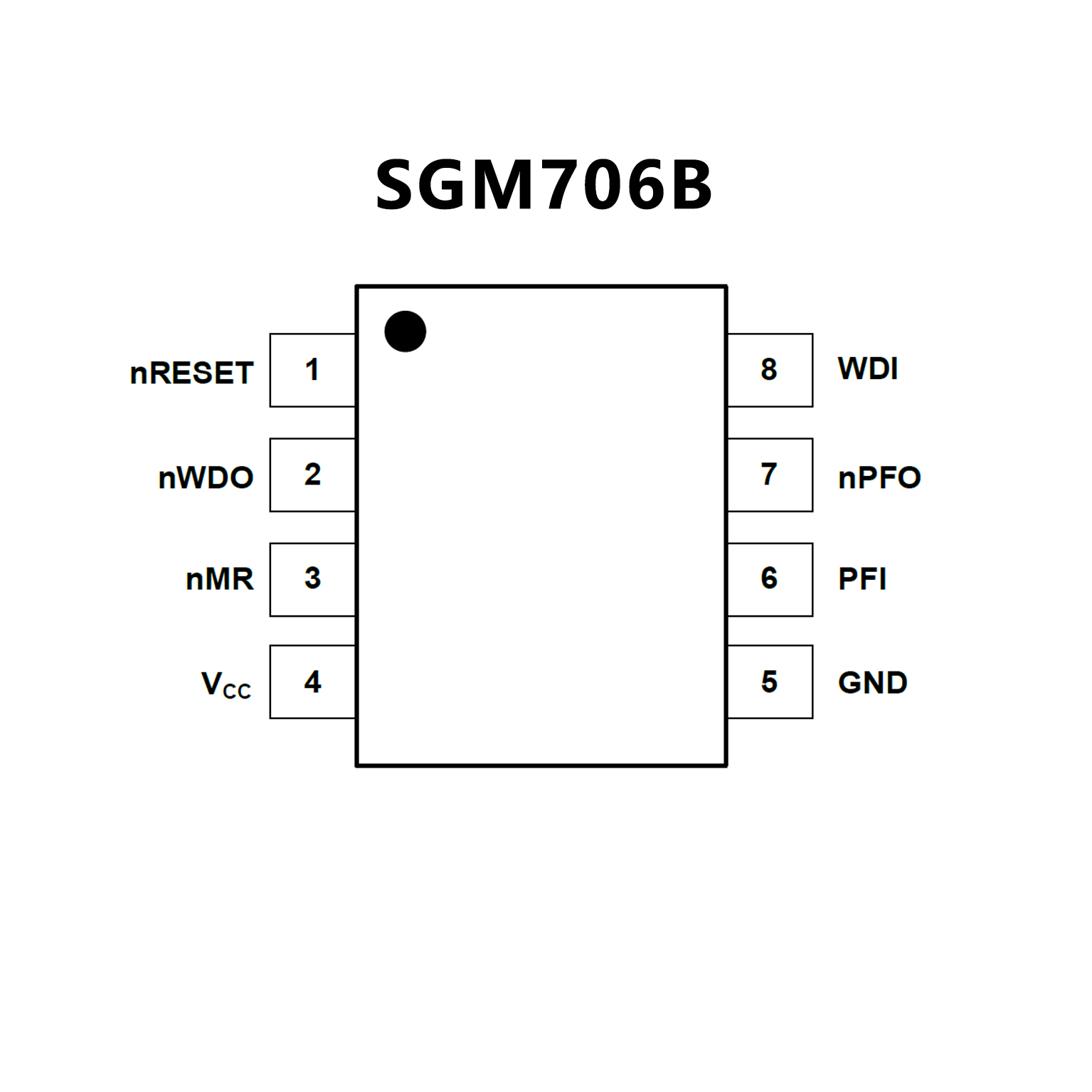

SGM706B.pdf? Ultra-Low Supply Current: < 1μA (TYP)
? Precision Supply-Voltage Monitor
4.63V for SGM706B-L
4.38V for SGM706B-M
4.0V for SGM706B-J
3.08V for SGM706B-T
2.93V for SGM706B-S
2.63V for SGM706B-R
? Guaranteed nRESET Valid at VCC = 1V
? 200ms Reset Pulse Width
? Debounced TTL/CMOS-Compatible
? Manual Reset Input
? Independent Watchdog Timer (1.6s) Timeout
? Voltage Monitor for Power-Fail
or Low-Battery Warning
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
? Supervisory-Function Integration Significantly
Improves System Reliability While Reducing Board Space

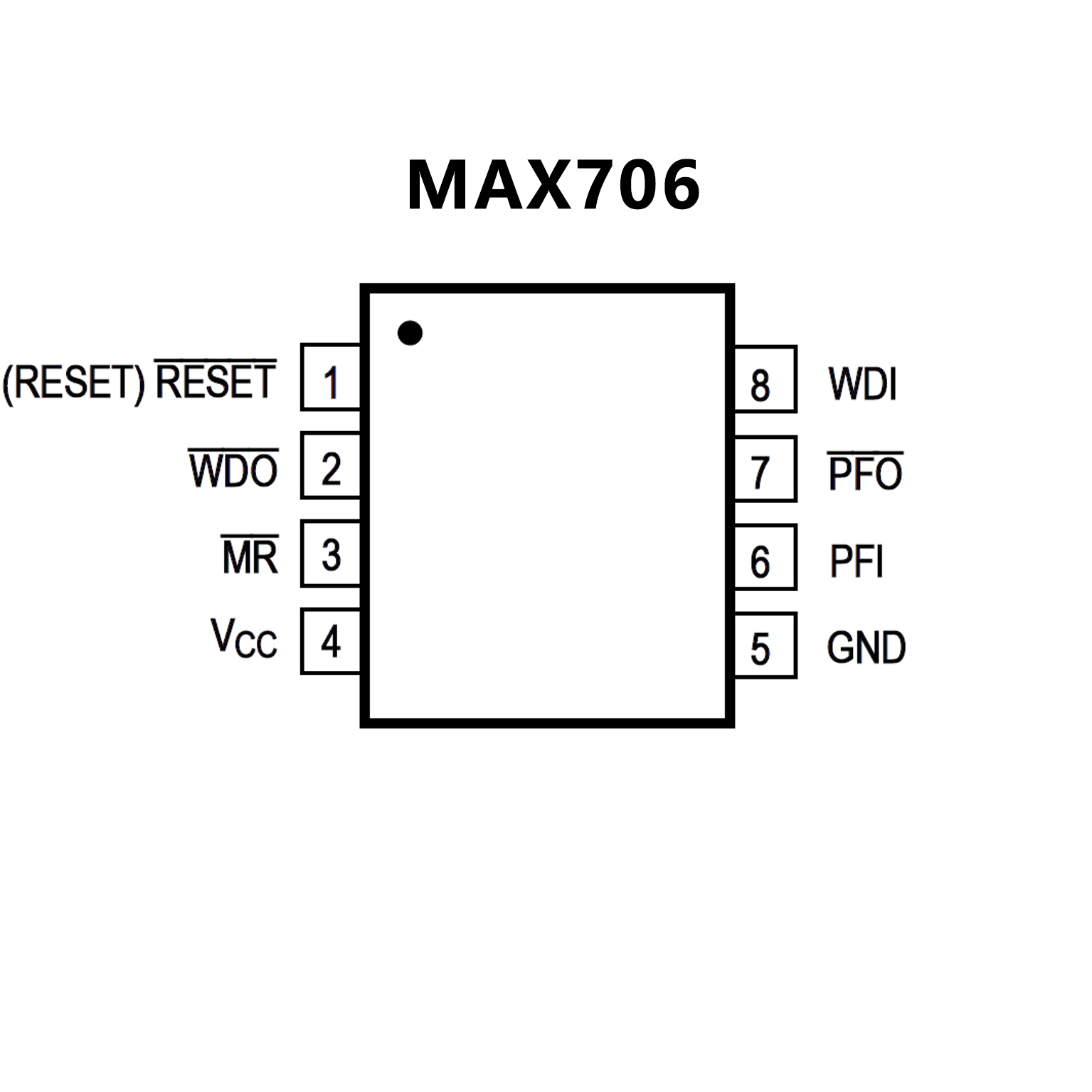

? μMAX Package
? Guaranteed RESET Valid at VCC = 1V
200ms Reset Pulse Width
Debounced TTL/CMOS-Compatible Manual-Reset Input
Active-High Reset Output (MAX707/MAX708/MAX813L)
? Precision-Supply Voltage Monitor
4.65V (MAX705/MAX707/MAX813L)
4.40V (MAX706/MAX708)
? Voltage Monitor for Power-Fail or Low-Battery Warning
