SGM8049-2.pdf? Low Noise: 3.5μVP-P (0.1Hz to 10Hz)
? Wide Supply Voltage Range: 1.8V to 5.5V
? Low Quiescent Current: 2.5μA/Amplifier (TYP)
? Low Offset Voltage: 0.85mV (MAX)
? DC Precision:
CMRR: 100dB
PSRR: 2.5μV/V
AOL: 118dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:

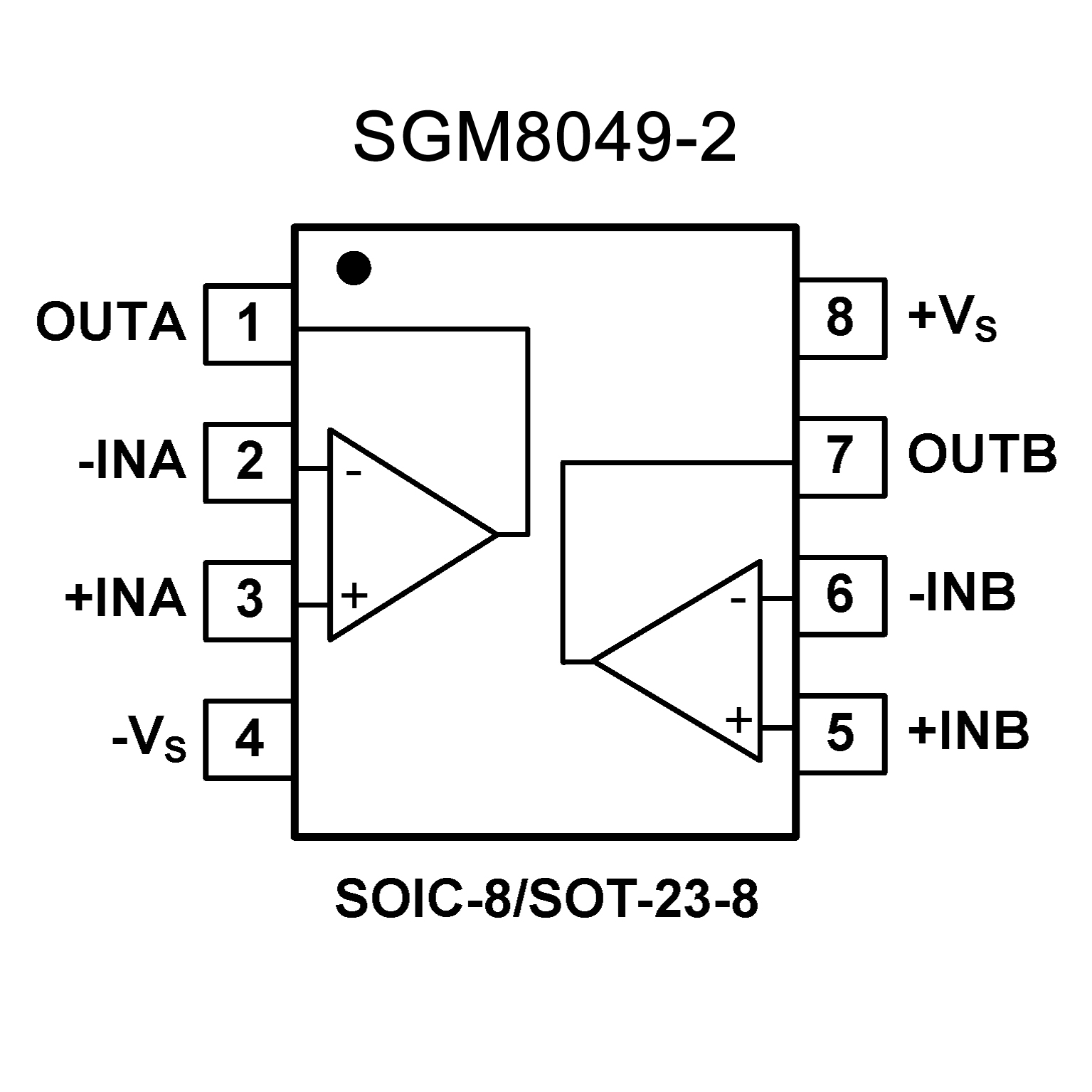

SGM8049-2 Available in Green SOT-23-8 and
SOIC-8 Packages
? Low Quiescent Current:
4.4 μA/amplifier (typical)
? Low Input Offset Voltage:
±1.0 mV (maximum)
? Enhanced EMI Protection:
Electromagnetic Interference Rejection Ratio
(EMIRR) at 1.8 GHz: 97 dB
? Supply Voltage Range: 1.8V to 5.5V
? Gain Bandwidth Product: 90 kHz (typical)
? Rail-to-Rail Input/Output
? Slew Rate: 0.05 V/μs (typical)
? Unity Gain Stable
? No Phase Reversal

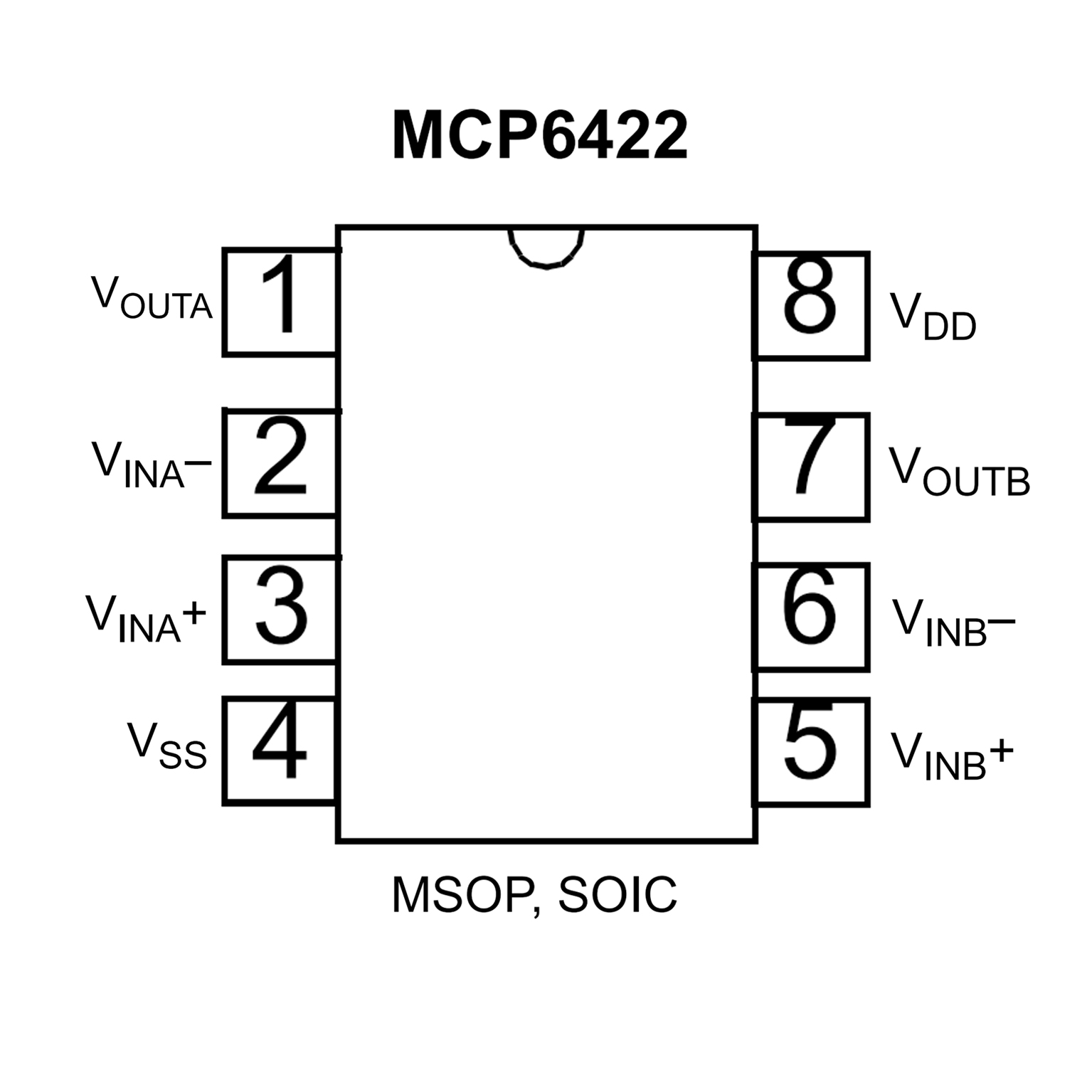

? Small Packages:
Singles in SC70-5, SOT-23-5
Dual in MSOP-8, SOIC-8
Quad in SOIC-14, TSSOP-14
? Extended Temperature Range:
-40°C to +125°C
