SGM8091.pdf? Rail-to-Rail Output
-2mV Typical VOS
? High Speed
-350MHz, -3dB Bandwidth (G = +1)
-265V/μs, Slew Rate
-32ns Settling Time to 0.1% with 2V Step
? Operates on 2.5V to 5.5V Supplies
? Input Voltage Range = -0.2V to +3.8V with VS = 5V
? Excellent Video Specs (RL = 150?, G = +2)
-Gain Flatness 0.1dB to 70MHz
-Diff Gain: 0.004%, Diff Phase: 0.08 degree
? Low Power
-4.3mA/Amplifier Typical Supply Current
? Small Packaging

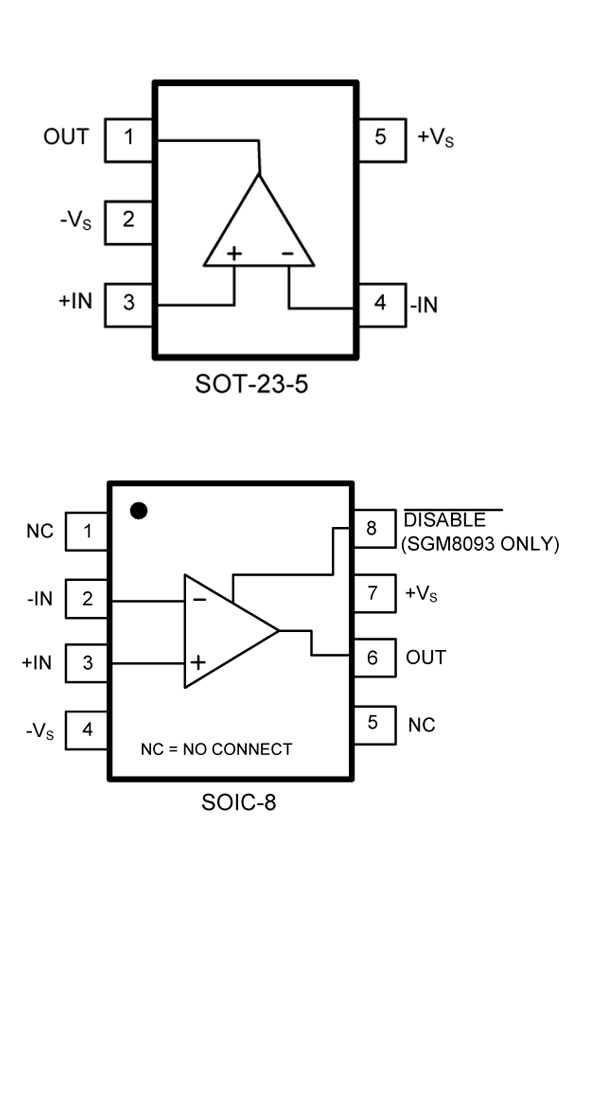

-SGM8091 Available in SOIC-8 and SOT-23-5

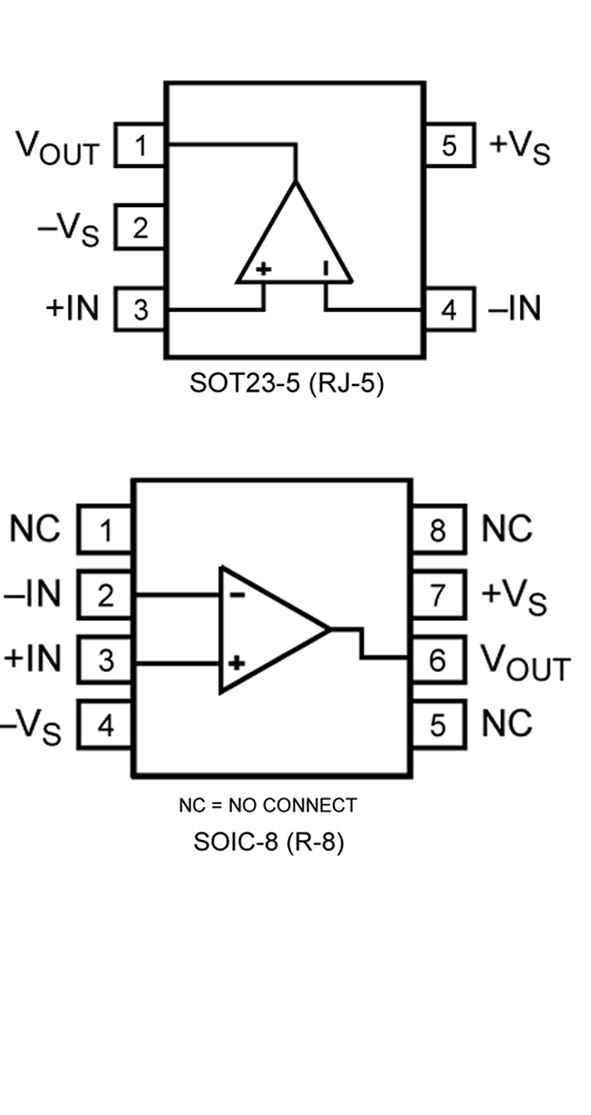

?Low cost single (AD8091) amplifiers
?Fully specified at +3 V, +5 V, and ±5 V supplies
?Single-supply operation
-Output swings to within 25 mV of either rail
?High speed and fast settling on 5 V
-110 MHz, ?3 dB bandwidth (G = +1)
-145 V/μs slew rate
-50 ns settling time to 0.1%
?Good video specifications (G = +2)
-Gain flatness of 0.1 dB to 20 MHz; RL = 150 Ω
-0.03% differential gain error; RL = 1 kΩ
-0.03%differential phase error; RL = 1 kΩ
?Low distortion
-?80 dBc total harmonic @ 1 MHz; RL = 100 Ω
?Outstanding load drive capability
-Drives 45 mA, 0.5 V from supply rails
-Drives 50 pF capacitive load (G = +1)
?Low power of 4.4 mA per amplifier
