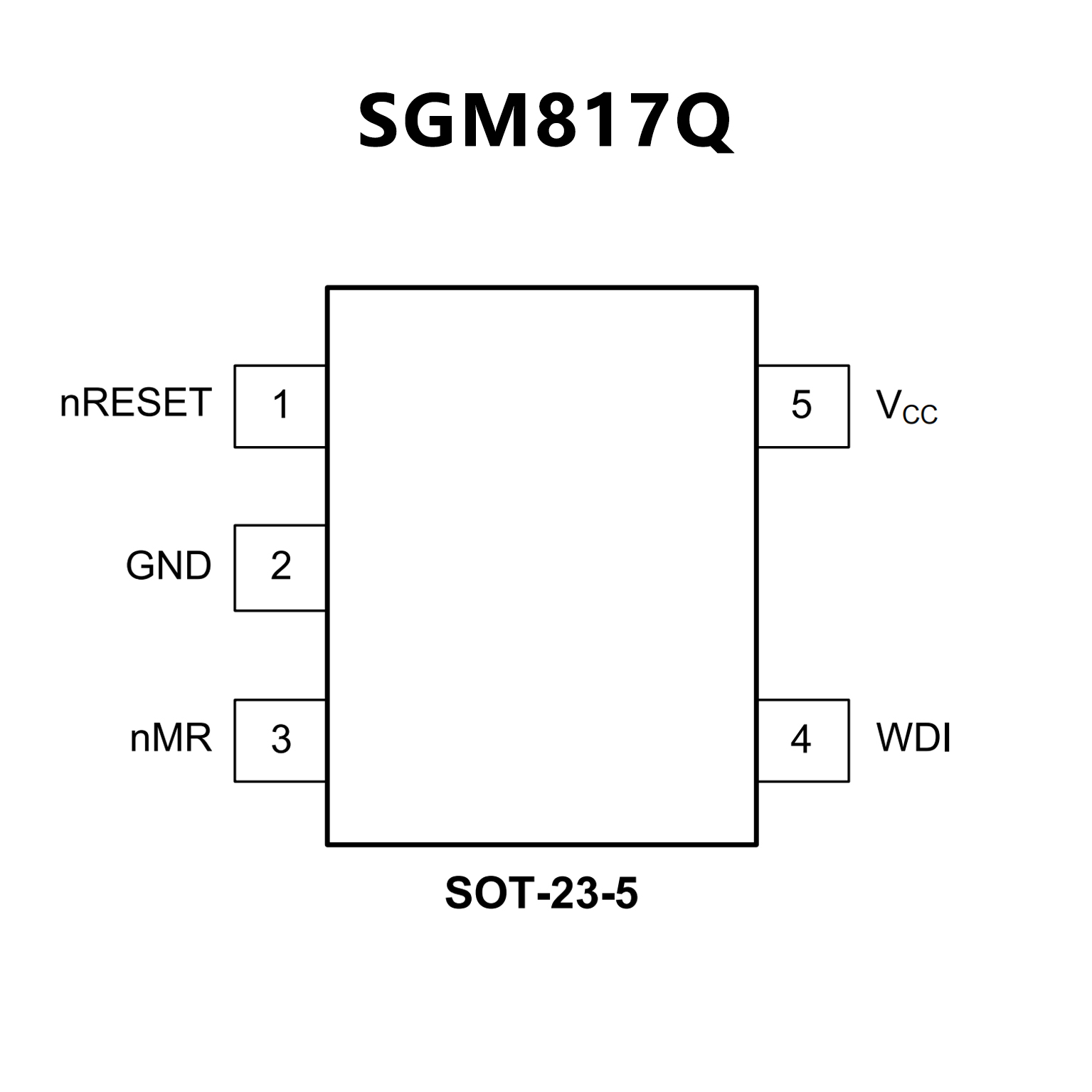

SGM817Q.pdf? Available in a Green SOT-23-5 Package
? Qualified for automotive applications
? AEC-Q100 Qualified With the Following Results:
– Device temperature grade 1: –40°C to 125°C
– Device HBM ESD classification level 2
– Device CDM ESD classification level C4B
? ESD protection exceeds 2000 V Per MIL-STD-
883, Method 3015; using human body model (C =
100 pF, R = 1500 Ω)
? Power-on reset generator with fixed delay time of
200 ms (TPS3823/4/5/8-xx-Q1) or 25 ms
(TPS3820-xx-Q1)
? Manual reset input (TPS3820/3/5/8-xx-Q1)
? Reset output available in active-low
(TPS3820/3/4/5-xx-Q1), Active-High (TPS3824/5-
xx-Q1), and open drain (TPS3828-xx-Q1)
? Supply voltage supervision range:
2.5 V, 3 V, 3.3 V, 5 V
? Watchdog timer (TPS3820/3/4/8-xx-Q1)
? Supply current of 15 μA (Typical)

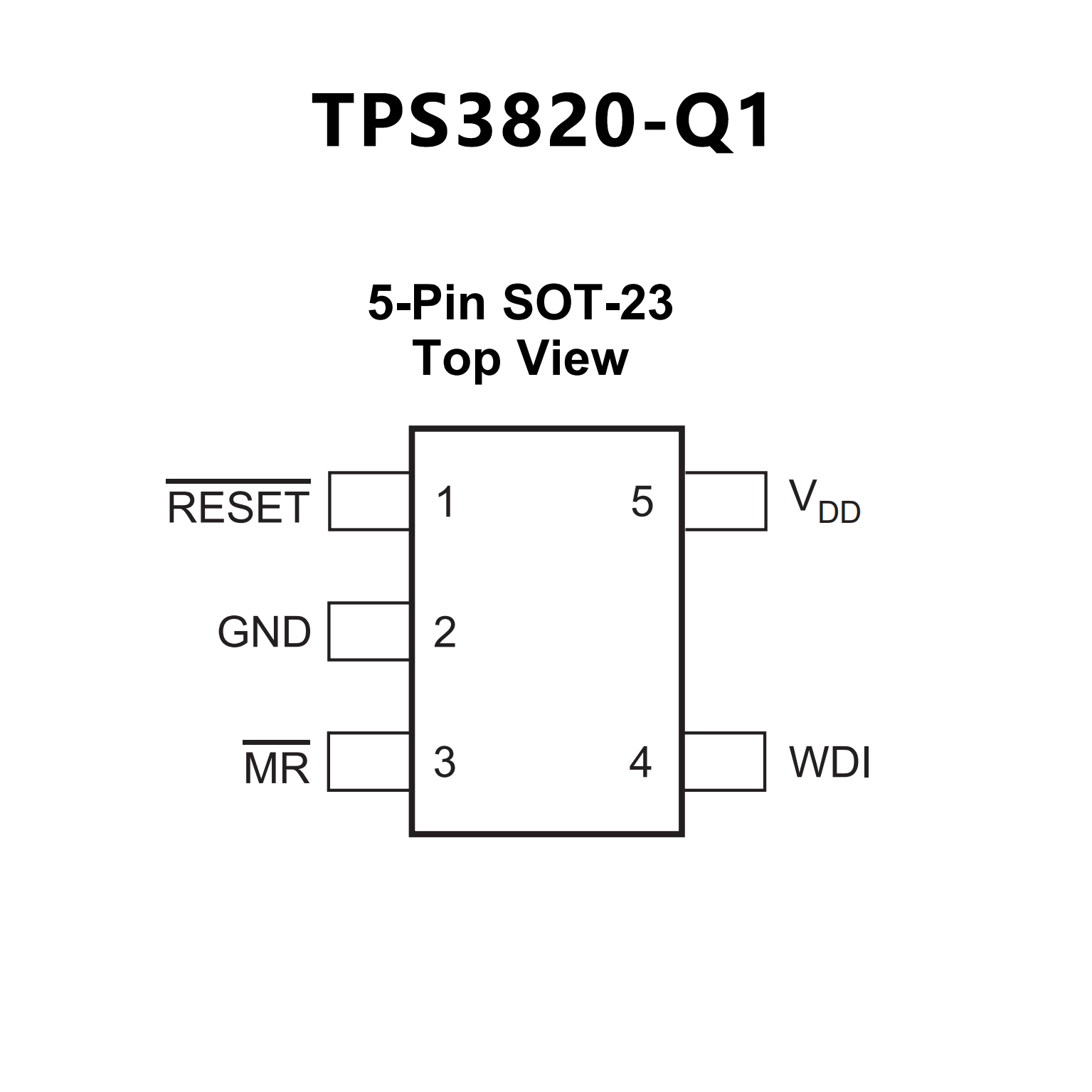

? 5-Pin SOT-23 package
? Temperature range: ?40°C to 125°C
