Micro Power operational Amplifier, SGM8210-1 Replace TLV2371.
SGM8210-1
SGM8210-1.pdf
SGM8210-1.pdfFEATURES
? Low 0.1Hz to 10Hz Noise: 3μVP-P
? Wide Supply Voltage Range: 3.3V to 24V
? Low Power Consumption: 50μA/Amplifier (TYP)
? Low Offset Voltage: 1mV (MAX)
? Input Voltage Noise Density: 25nV/ Hz at 1kHz
? Slew Rate: 0.3V/μs
? Rail-to-Rail Input and Output
? High DC Precision:
CMRR: 115dB
PSRR: 120dB
AOL: 120dB
? -40℃ to +125℃ Operating Temperature Range
? Small Packaging:
SGM8210-1 Available in Green SOT-23-5 and
SC70-5 Packages

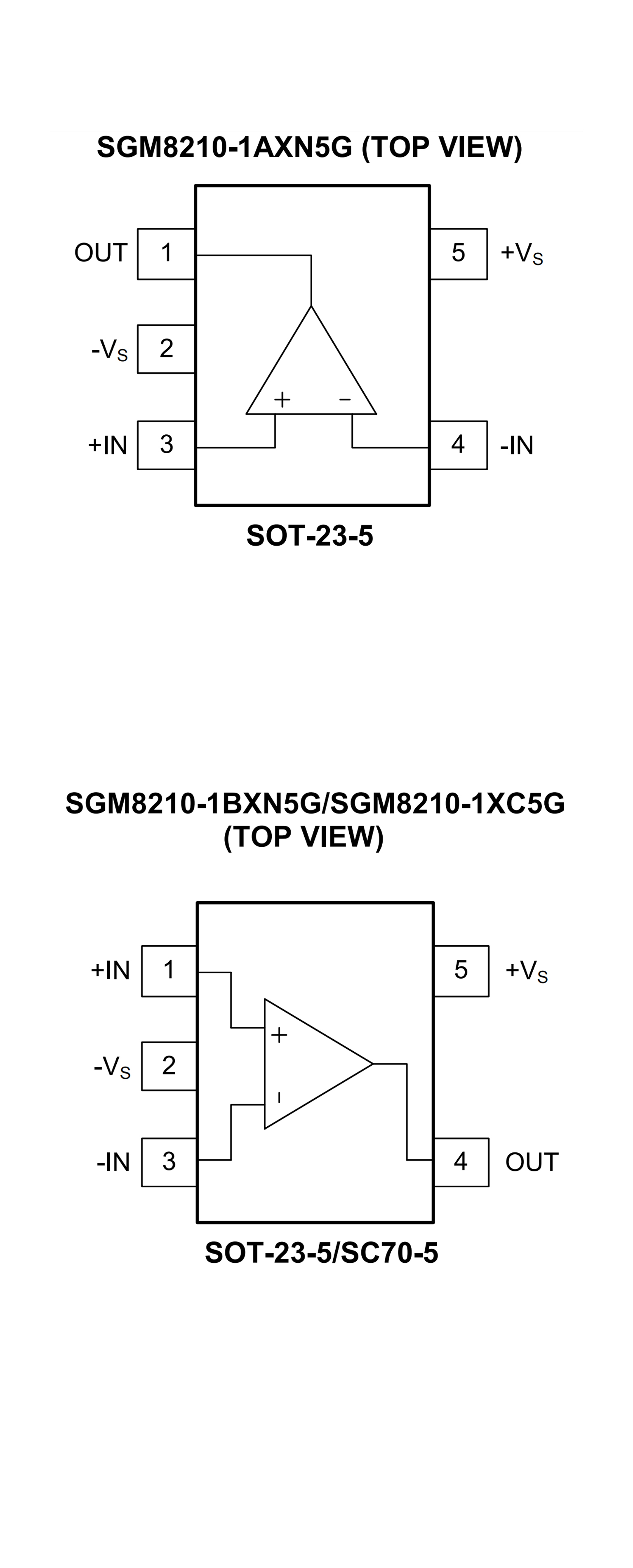

PIN CONFIGUTION
優勢替代
FEATURES
? Rail-To-Rail Input/Output
? Wide Bandwidth . . . 3 MHz
? High Slew Rate . . . 2.4 V/μs
? Supply Voltage Range . . . 2.7 V to 16 V
? Supply Current . . . 550 μA/Channel
? Low Power Shutdown Mode
IDD(SHDN) . . . 25 μA/Channel
? Input Noise Voltage . . . 39 nV/√Hz
? Input Bias Current . . . 1 pA
? Specified Temperature Range
?40°C to 125°C . . . Industrial Grade
? Ultrasmall Packaging
? 5 or 6 Pin SOT-23 (TLV2370/1)
? 8 or 10 Pin MSOP (TLV2372/3)

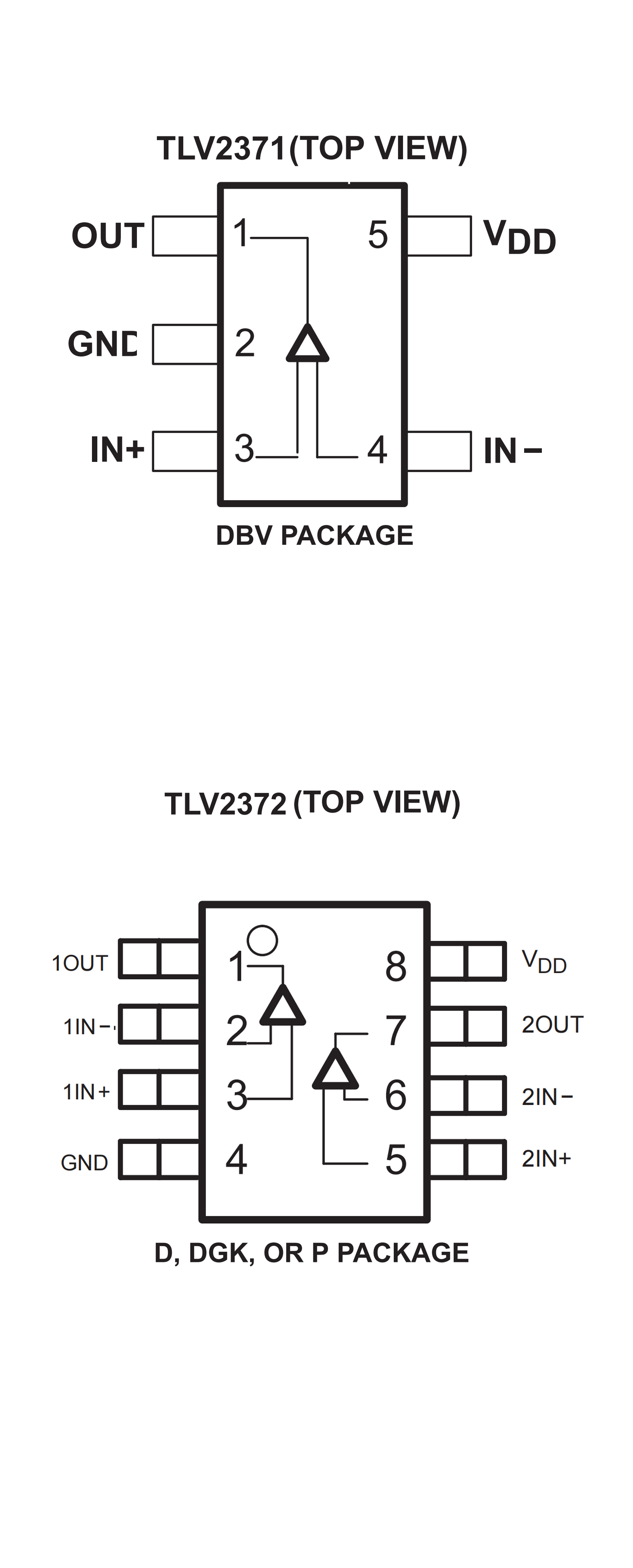

PIN CONFIGUTION
