3 Rail Power Sequencer with Programmable Timing, SGM822 Replace TPK1031.
SGM822XMS8G
SGM822XMS8G.pdf
SGM822XMS8G.pdfFEATURES
? Up to 3-Rail Power Sequence Control
? Low Quiescent Current: 36μA (TYP)
? Input Voltage Range: 2.7V to 5.5V
? Pin-Selected Flag Output Logic
? Capacitor-Programmable
Power-Up/Power-Down Sequencing Delay
? Available in a Green MSOP-8 Package

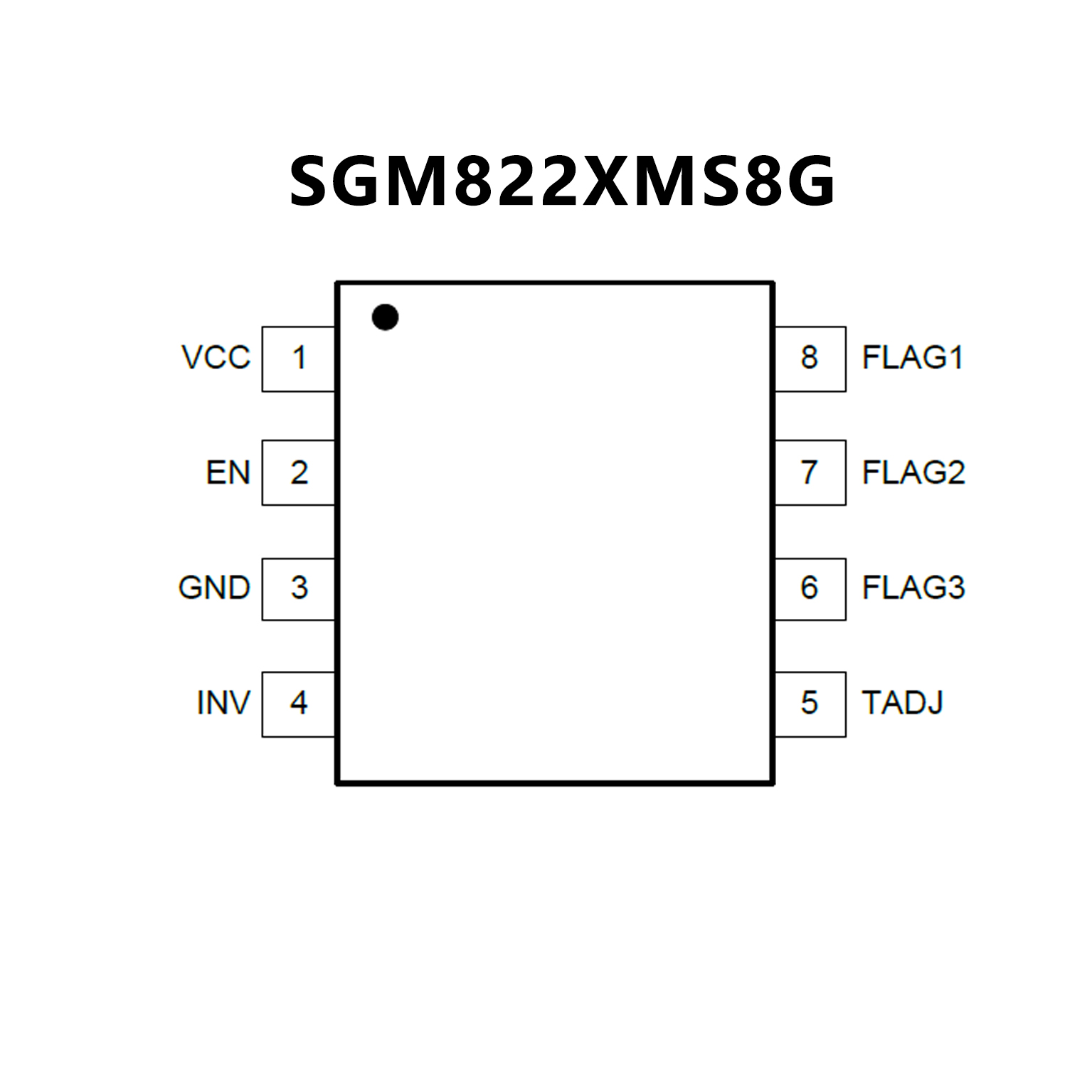

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input Voltage Range: 2.7 V to 5.5V
? Power-Up and Power-Down Sequence Control
? Single Enable Control Signal Input Channel
? Three Power Sequence Channels:
Open-Drain Output
Adjustable Timing Controlled by Capacitor
Support Invert Output
? Support Cascaded Device Output
? Low Power Consumption
? Junction Temperature: –40°C to +125°C
? Small MSOP8 Package

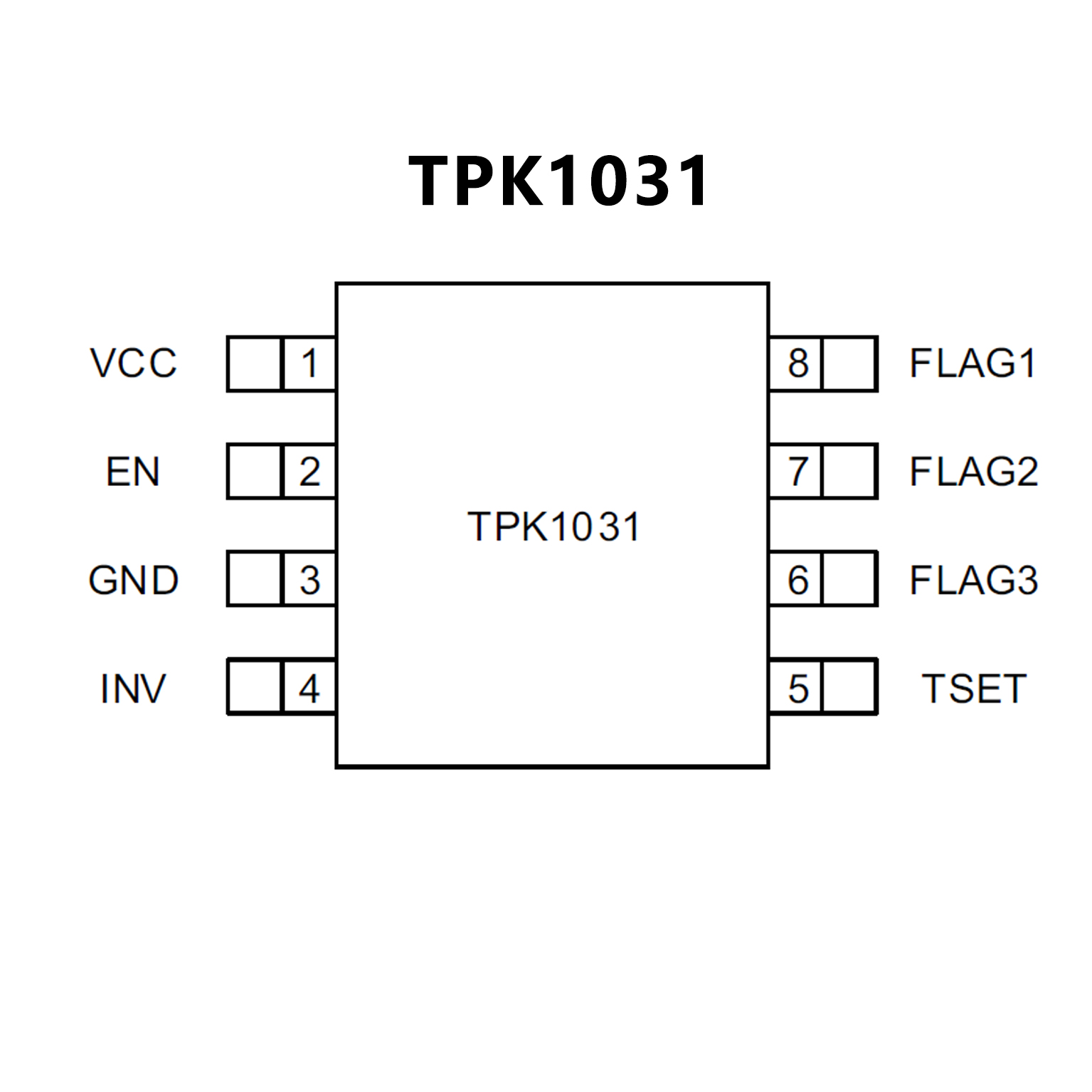

PIN CONFIGUTION
