Low Noise Operational Amplifier, SGM8261-2 Replace OPA2209.
SGM8261-2
SGM8261-2.pdf
SGM8261-2.pdfFEATURES
? Superior Sound Quality
? Low Offset Voltage: ±350μV (MAX)
? Ultra Low Noise: 1.6nV/Hz at 1kHz
? Ultra Low Distortion: 0.00002% at 1kHz
? High Slew Rate: 16V/μs
? Gain-Bandwidth Product: 16MHz (G = +1)
? High Open-Loop Gain: 140dB
? Unity-Gain Stable
? Low Quiescent Current: 3.8mA/Amplifier
? Rail-to-Rail Output
? Support Single or Dual Power Supplies:
3.6V to 36V or ±1.8V to ±18V

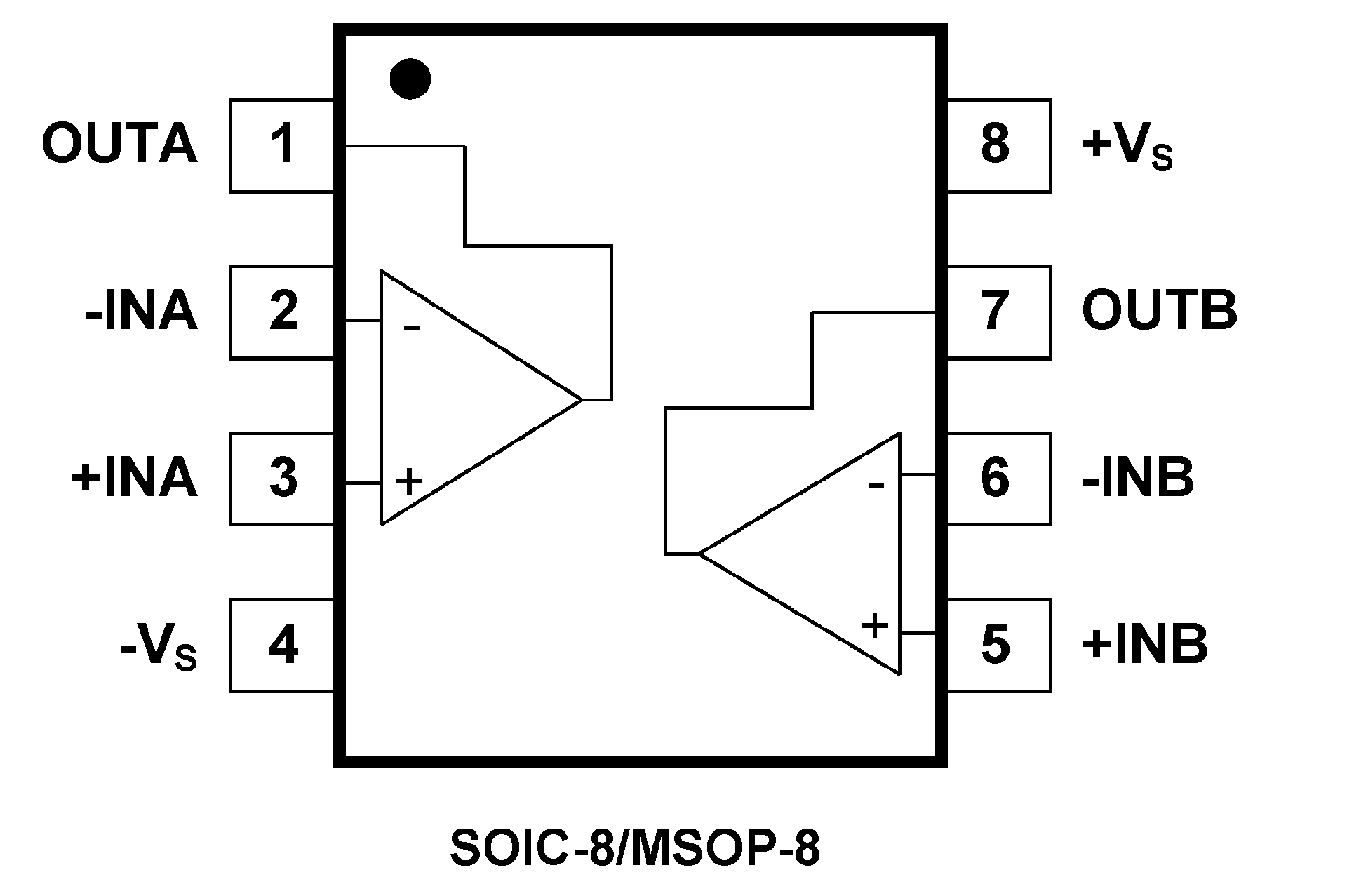

PIN CONFIGUTION
優勢替代
FEATURES
? Low Voltage Noise: 2.2 nV/√Hz at 1 kHz
? 0.1-Hz to 10-Hz Noise: 130 nVPP
? Low Quiescent Current: 2.5 mA/Ch (Maximum)
? Low Offset Voltage: 150 μV (Maximum)
? Gain Bandwidth Product: 18 MHz
? Slew Rate: 6.4 V/μs
? Wide Supply Range: ±2.25V to ±18V, 4.5V to 36V
? Rail-to-Rail Output
? Short-Circuit Current: ±65 mA

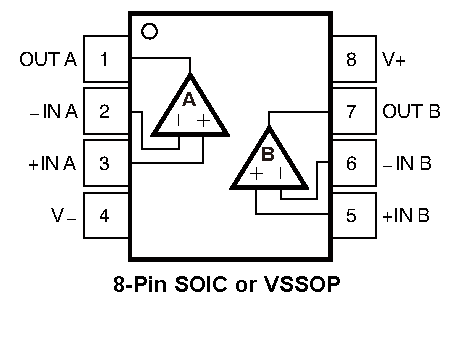

PIN CONFIGUTION
