Low Quiescent Current, Programmable Delay Supervisory Circuit，Replace TPS3806
SGM836
SGM836.pdf
SGM836.pdfFEATURES
? Adjustable Reset Timeout Period: 1.25ms to 10s
? Low Quiescent Current: 0.6μA (TYP)
? High Threshold Accuracy: 1% (TYP)
? Factory-Set Detection Voltages from 0.9V
to 5V and Adjustable Detection Voltage Down to 0.4V
? Manual Reset (nMR) Input
? Open-Drain nRESET Output
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-6 and TDFN-2×2-6AL Packages
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Dual Voltage Detector With Adjustable
Hysteresis 3.3-V/Adjustable and
? 2-V/AdjustableAssured Reset at V.8 V
? Supply Current: 3 μA Typical at VDD = 3.3 V
? Independent Open-Drain Reset Outputs
? Temperature Range: -40°C to +85°C
? 6-Pin SOT-23 Package

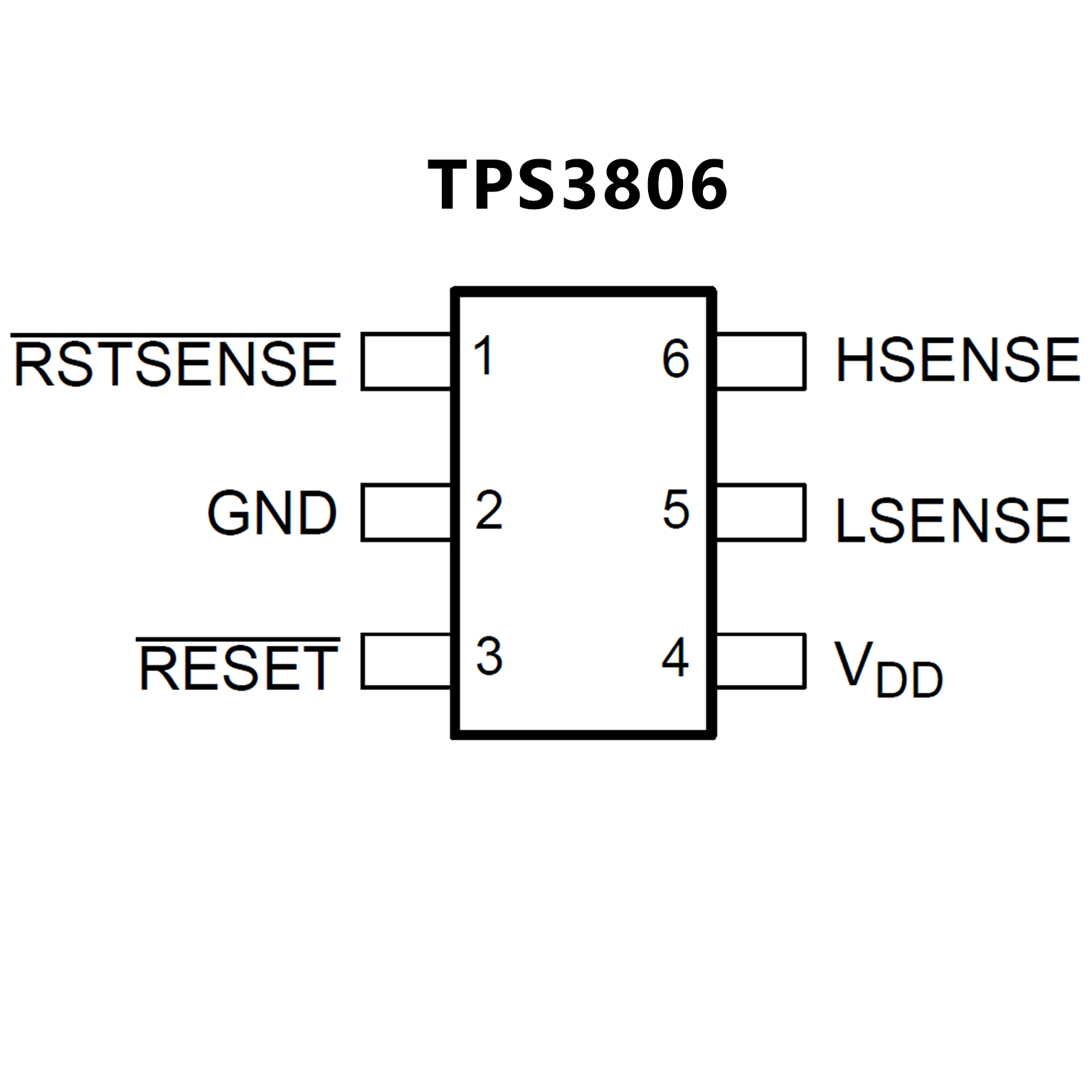

PIN CONFIGUTION
