Micro Power Operational Amplifier, Replace OPA313
SGM8535
SGM8535.pdf
SGM8535.pdfFEATURES
? Rail-to-Rail Output
? Low Input Offset Voltage: 0.6mV (TYP)
? Unity Gain Stable
? Gain Bandwidth Product: 1.5MHz
? Supply Voltage Range: 1.8V to 5.5V
? Low Supply Current
80μA/Amplifier (TYP)
? Small Packaging: SGM8535 Available in SOT-23-5,
SC70-5, SOIC-8 and MSOP-8

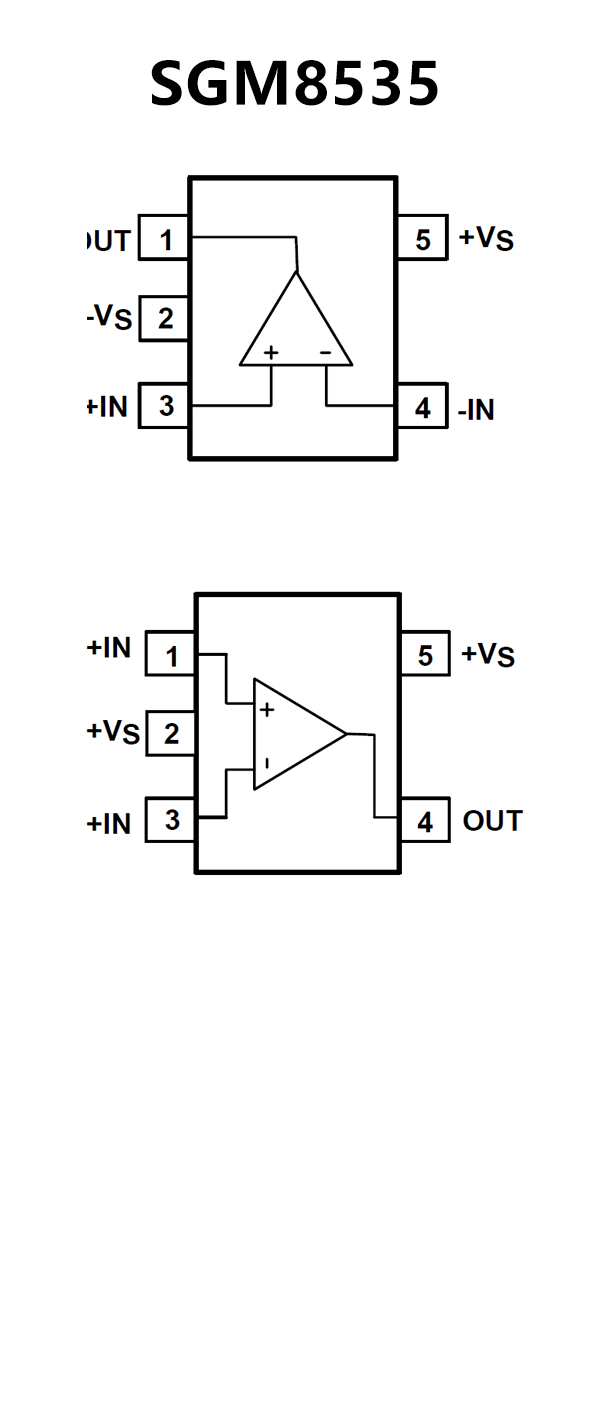

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Low IQ: 50 μA/ch
? Wide Supply Range: 1.8 V to 5.5 V
? Low Noise: 25 nV/√Hz at 1 kHz
? Gain Bandwidth: 1 MHz
? Low Input Bias Current: 0.2 pA
? Low Offset Voltage: 0.5 mV
? Unity-Gain Stable
? Internal RF/EMI Filter
? Extended Temperature Range: –40°C to +125°C
PIN CONFIGUTION
