Micro Power Operational Amplifier, SGM8535 Replace OPA348.
SGM8535
SGM8535.pdf
SGM8535.pdfFEATURES
? Rail-to-Rail Output
? Low Input Offset Voltage: 0.6mV (TYP)
? Unity Gain Stable
? Gain Bandwidth Product: 1.5MHz
? Supply Voltage Range: 1.8V to 5.5V
? Low Supply Current
80μA/Amplifier (TYP)
0.1μA Shutdown Current for SGM8537

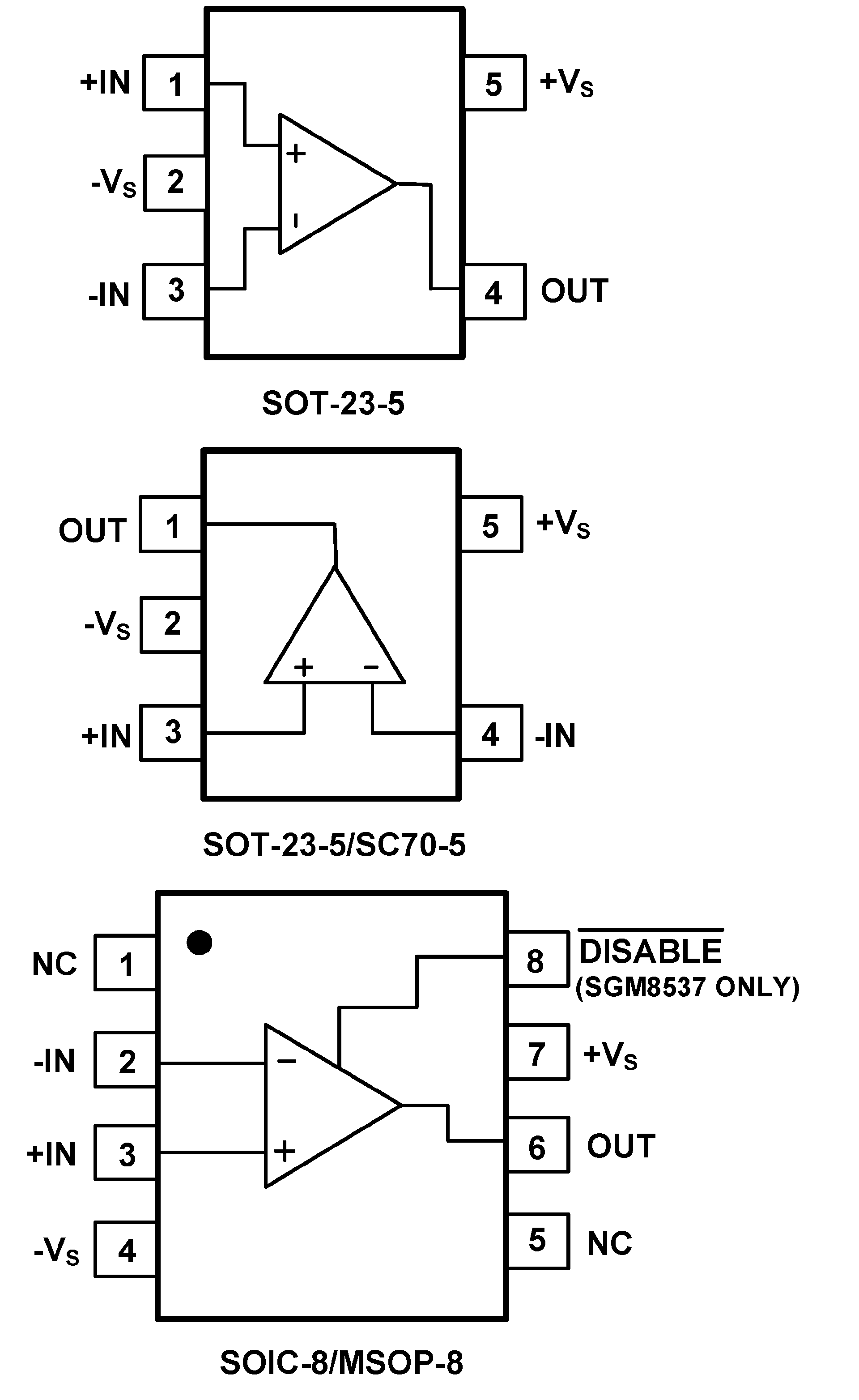

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? LOW IQ: 45μA typical
? LOW COST
? RAIL-TO-RAIL INPUT AND OUTPUT
? SINGLE SUPPLY: +2.1V to +5.5V
? INPUT BIAS CURRENT: 0.5pA
? HIGH SPEED:POWER WITH BANDWIDTH: 1MHz

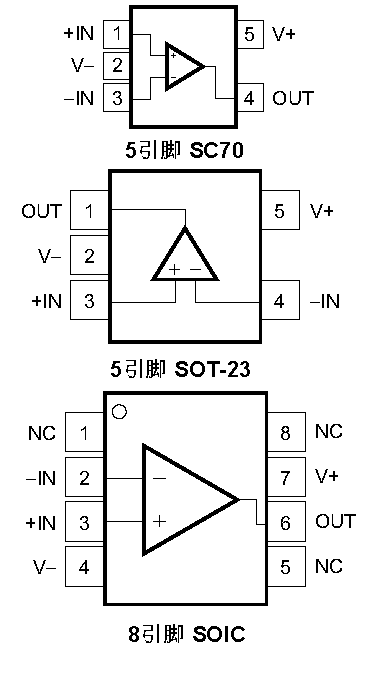

PIN CONFIGUTION
