PAM8302AASCR.pdf
No.10587
? 2.5W Output at 10% THD with a 4Ω Load and 5V Power Supply
? Filterless, Low Quiescent Current and Low EMI
? High Efficiency up to 88%
? Superior Low Noise
? Short Circuit Protection
? Thermal Shutdown
? Few External Components to Save Space and Cost

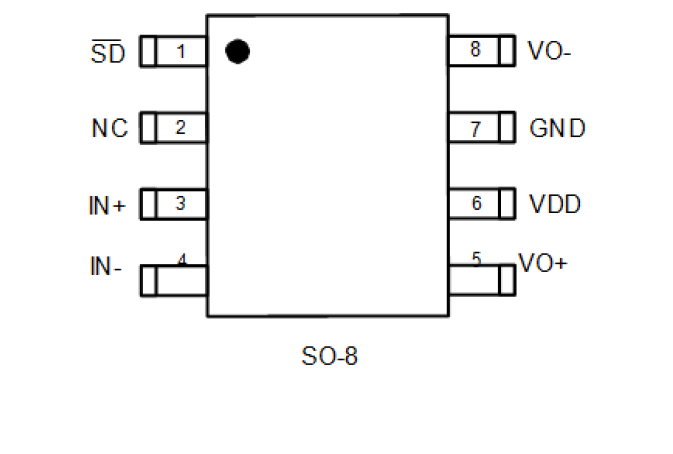

? MSOP-8, SO-8 and U-DFN3030-8 Packages Available

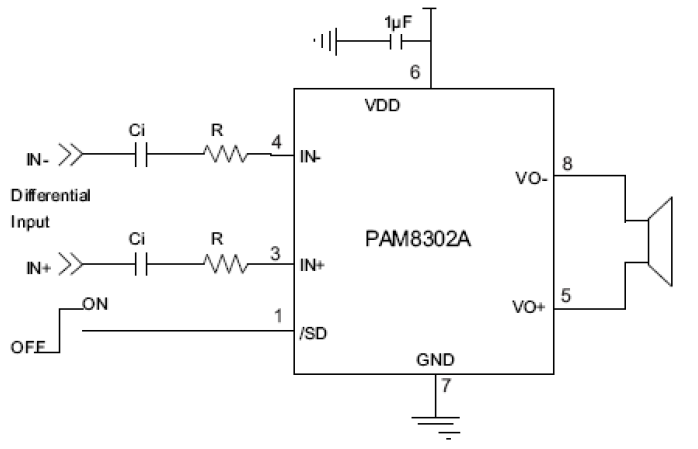

The PAM8302A is a 2.5W Class-D mono audio amplifier. Its low THD+N feature offers high-quality sound reproduction. The new filterless architecture allows the device to drive speakers directly instead of using low-pass output filters thus saving system cost and PCB area. With the same number of external components, the efficiency of the PAM8302A is much better than that of Class-AB cousins. It can optimize battery life thus is ideal for portable applications.
The PAM8302A is available in MSOP-8, SO-8, and U-DFN3030-8 packages.
