1CH H-bridge Motor Driver with Integrated Current Sense and Regulation.
TMI8122-Q1 TMI8122-Q1.pdf

No.14097

FEATURES

AEC-Q100 result certification in progress:

  – Temperature grade 1: – 40°C to +125°C, TA
N-Channel H-bridge Motor Driver:
  – Drives One Bidirectional Brushed DC Motor,
  – Two Unidirectional Brushed DC Motors,
  – or Other Resistive and Inductive Loads
Wide 4.5V to 37V Operating Voltage
10A Peak Current Drive
Integrated Current Sensing and Regulation
PH/EN and PWM Input Control Modes
Cycle-by-cycle or Fixed Off-Time Current
  Regulation
Supports 1.8V, 3.3V, 5V Logic Inputs
Ultra-Low Power Sleep Mode
VM Under Voltage Lockout (UVLO)
Over Current Protection (OCP)
Thermal Shutdown (TSD)
Automatic Fault Recovery and Indicator Pin
Package
  - TMI8122-Q1: HTSSOP16
DESCRIPTION

The TMI8122-Q1 is a motor driver for wide variety of end applications. The device integrates an H-bridge, charge pump regulator, current sensing and regulation, current proportional output, and protection circuitry. The charge pump improves efficiency by allowing for both high and low side N-channels MOSFETs and 100% duty cycle support.
Integrated current sensing allows for the driver to regulate the motor current during start up and high load events. A current limit can be set with an adjustable external voltage reference. Additionally, the device provides an output current proportional to the motor load current. This can be used to detect motor stall or change in load conditions.
A low-power sleep mode is provided to achieve ultra- low quiescent current draw by shutting down most of the internal circuitry. The device is fully protected from faults and short circuits, including undervoltage lockout (UVLO), output over-current protection (OCP), and device thermal shutdown (TSD). Fault conditions are indicated on nFAULT.

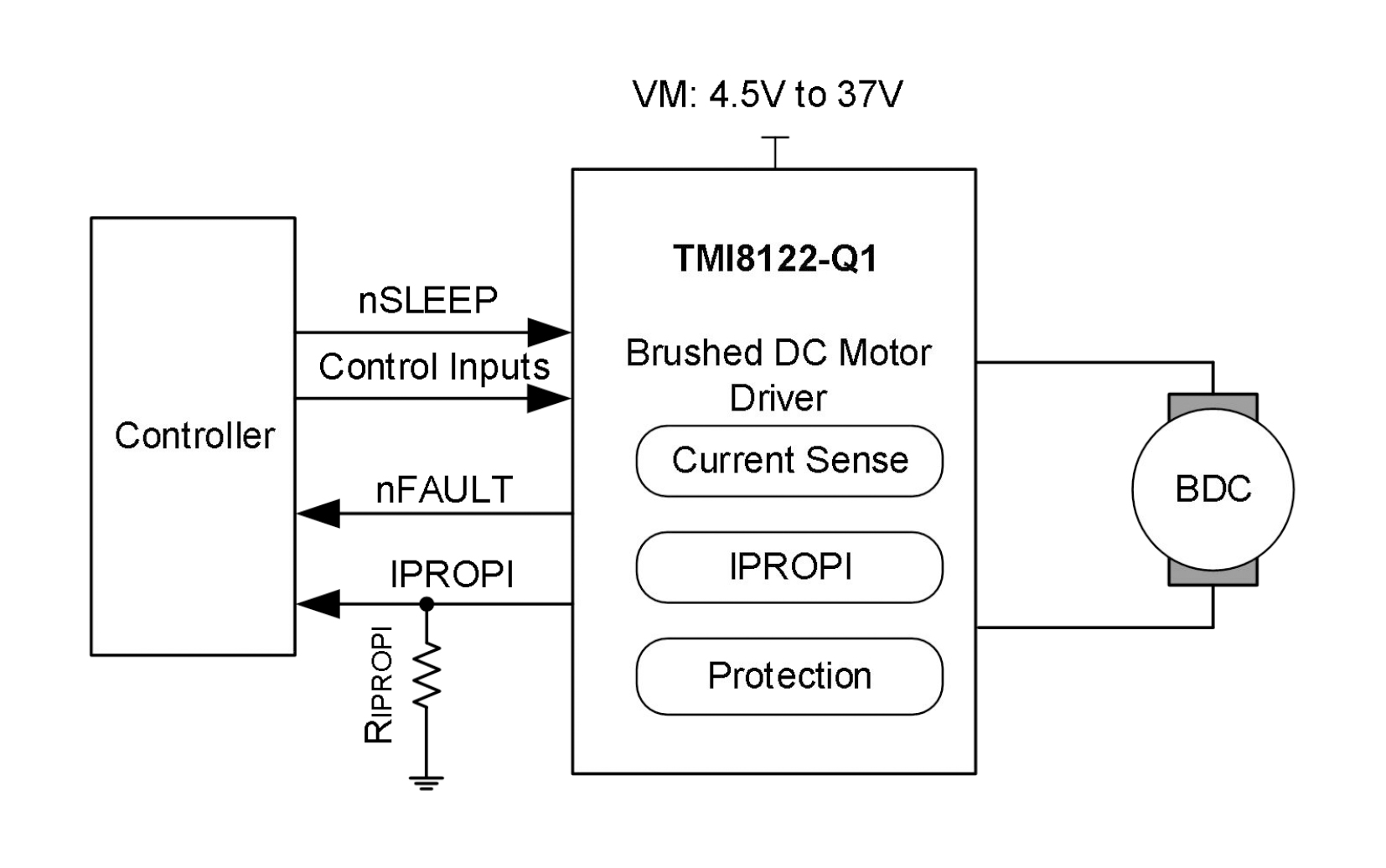

APPLICATION CIRCUIT

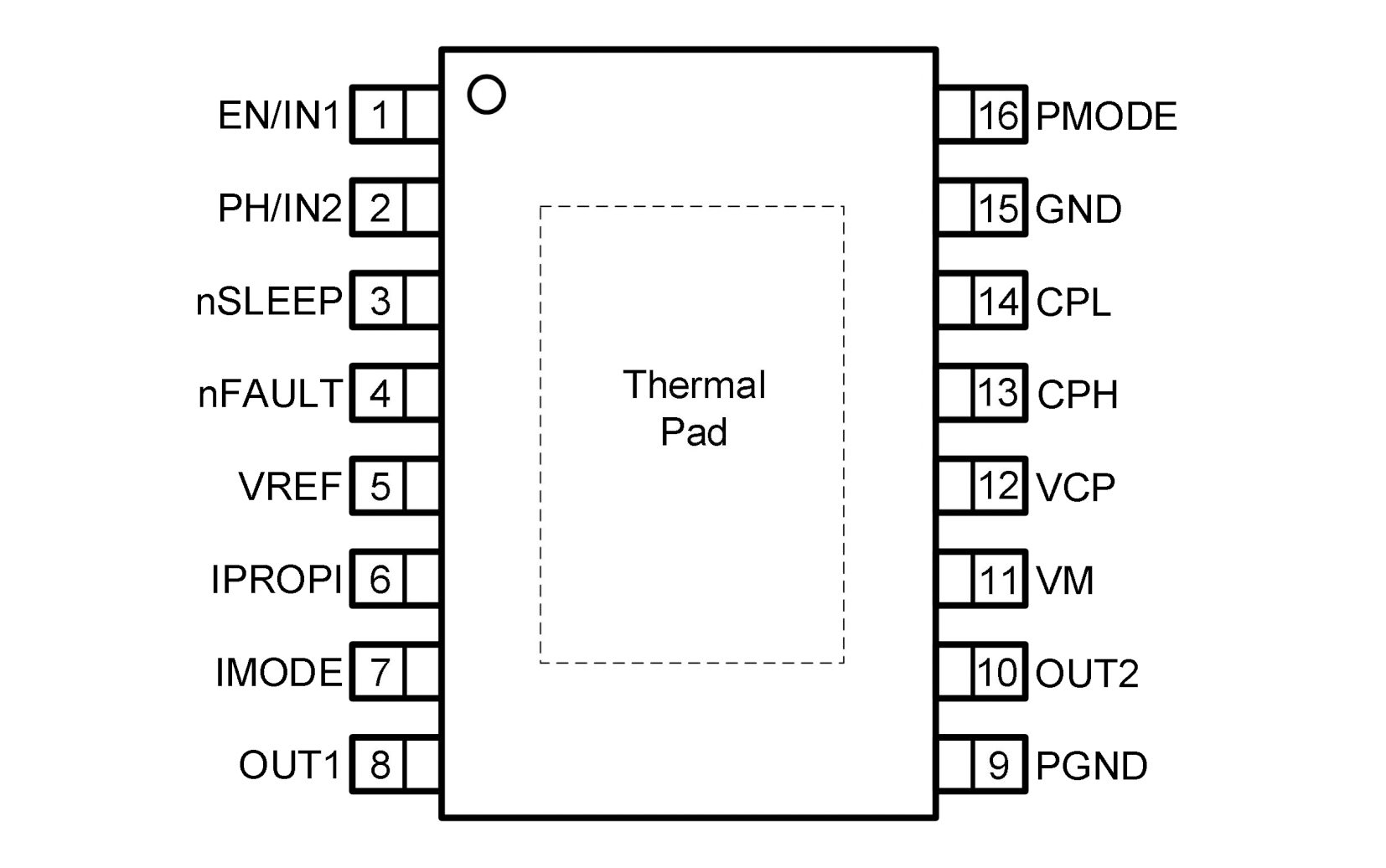

PIN CONFIGUTION
