No.14043
? Guard Ring Die Construction for Transient Protection
? Ideally Suited for Automated Assembly
? Low Power-Loss, High Efficiency
? Surge Overload Rating to 50A Peak
? For Use in Low-Voltage, High-Frequency Inverters,
Free-Wheeling, and Polarity Protection Application
? High-Temperature Soldering: +260°C/10 Second at Terminal
? Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data

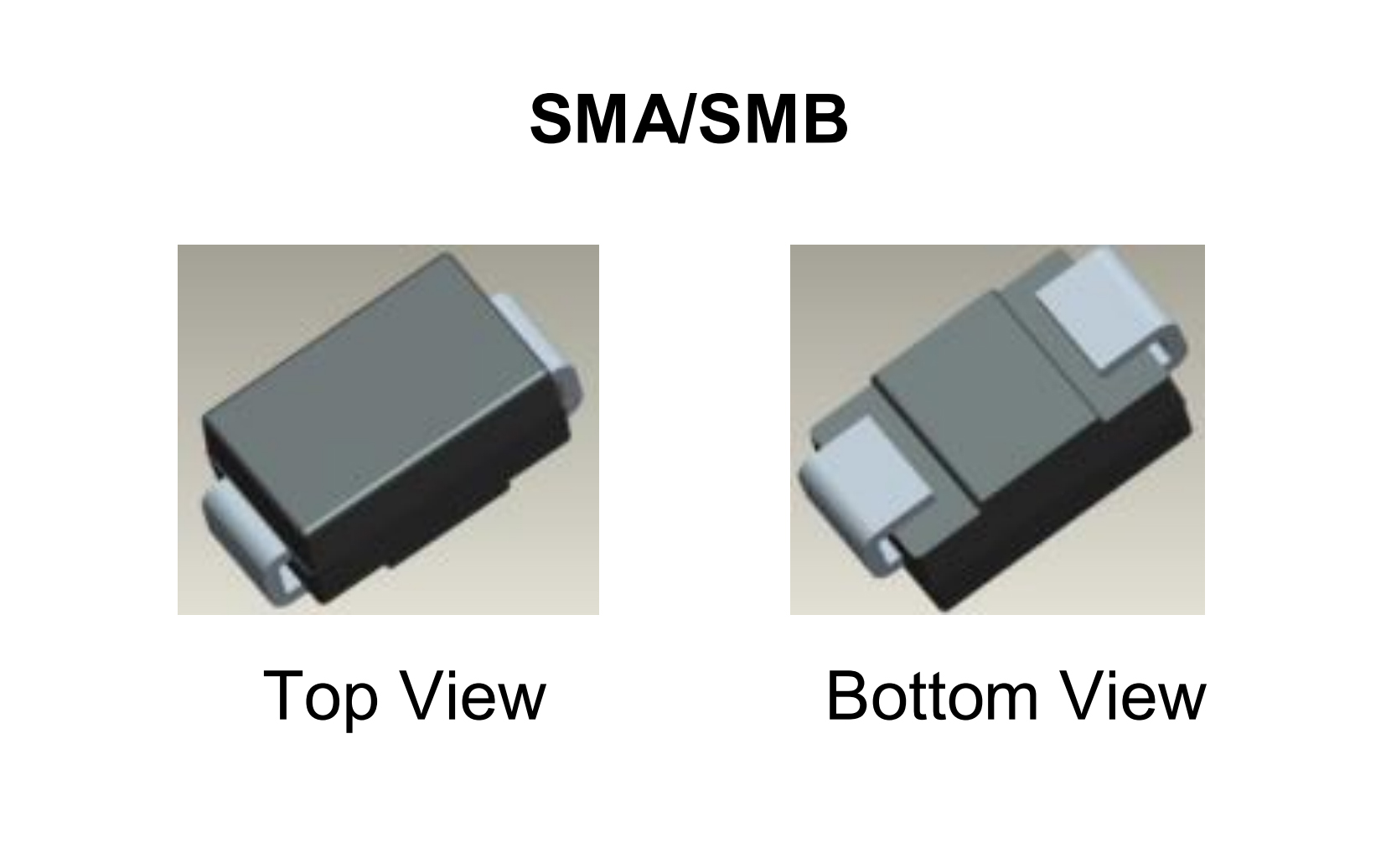

? Case: SMA/SMB
? Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
? Moisture Sensitivity: Level 1 per J-STD-020
? Terminals: Lead Free Plating (Matte Tin Finish). Solderable per
MIL-STD-202, Method 208

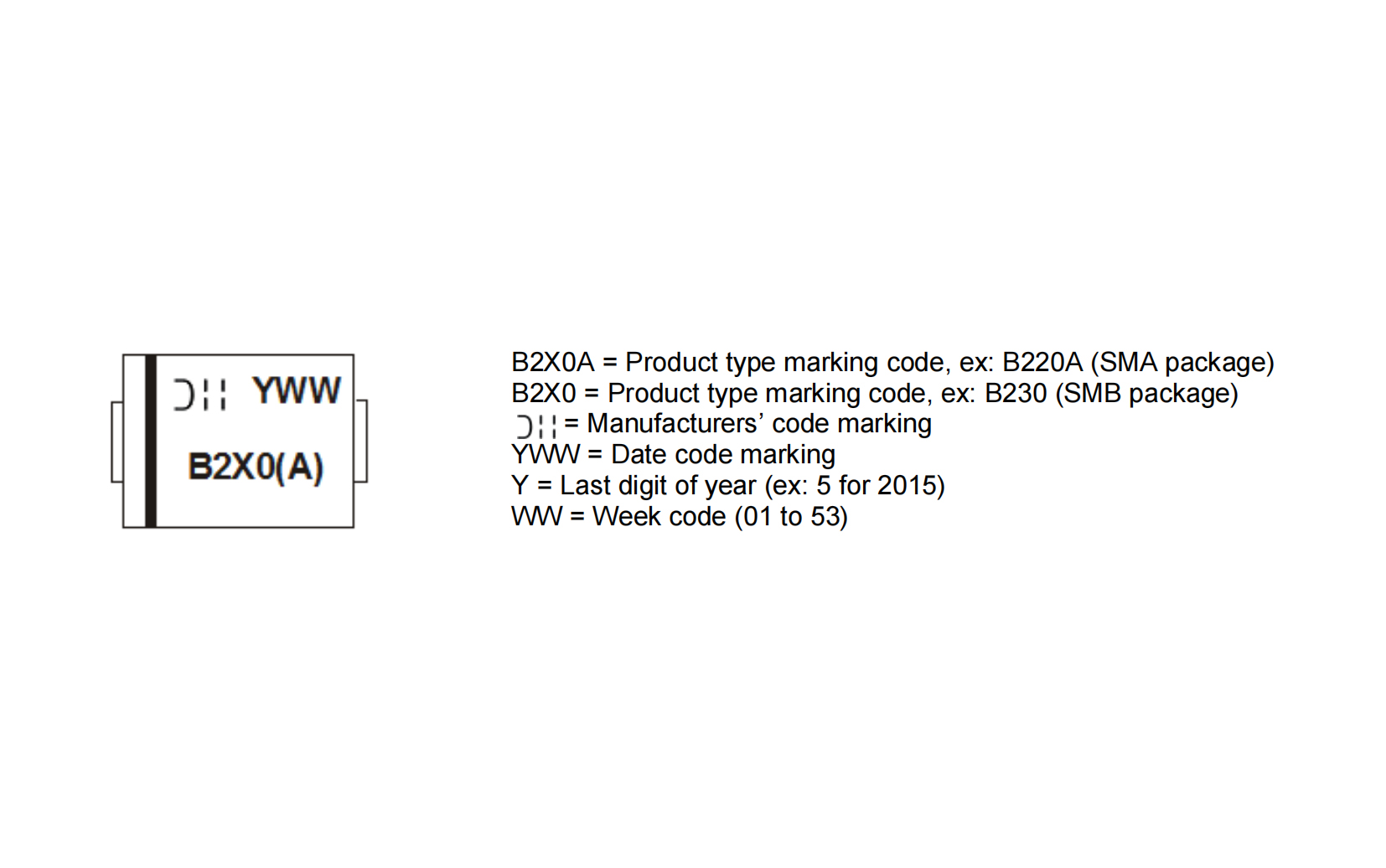

? Polarity: Cathode Band or Cathode Notch
? Weight: SMA 0.064 grams (Approximate)
SMB 0.093 grams (Approximate)
