SURFACE-MOUNT SCHOTTKY BARRIER DIODE.
BAS70-05-7-F
BAS70-05-7-F.pdf
BAS70-05-7-F.pdf
No.14044
FEATURES
? Low Turn-On Voltage
? Fast Switching
? PN Junction Guard Ring for Transient and ESD Protection
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)
? The BAS70-04Q is suitable for automotive applications
requiring specific change control; this part is AEC-Q101
qualified, PPAP capable, and manufactured in IATF 16949
certified facilities.
DESCRIPTION
The 70mA surface-mount Schottky Barrier Diode in SOT23 package,offers low-forward voltage drop and fast switching capability, designed with PN Junction Guard Ring for Transient and ESD Protection.
APPLICATION CIRCUIT

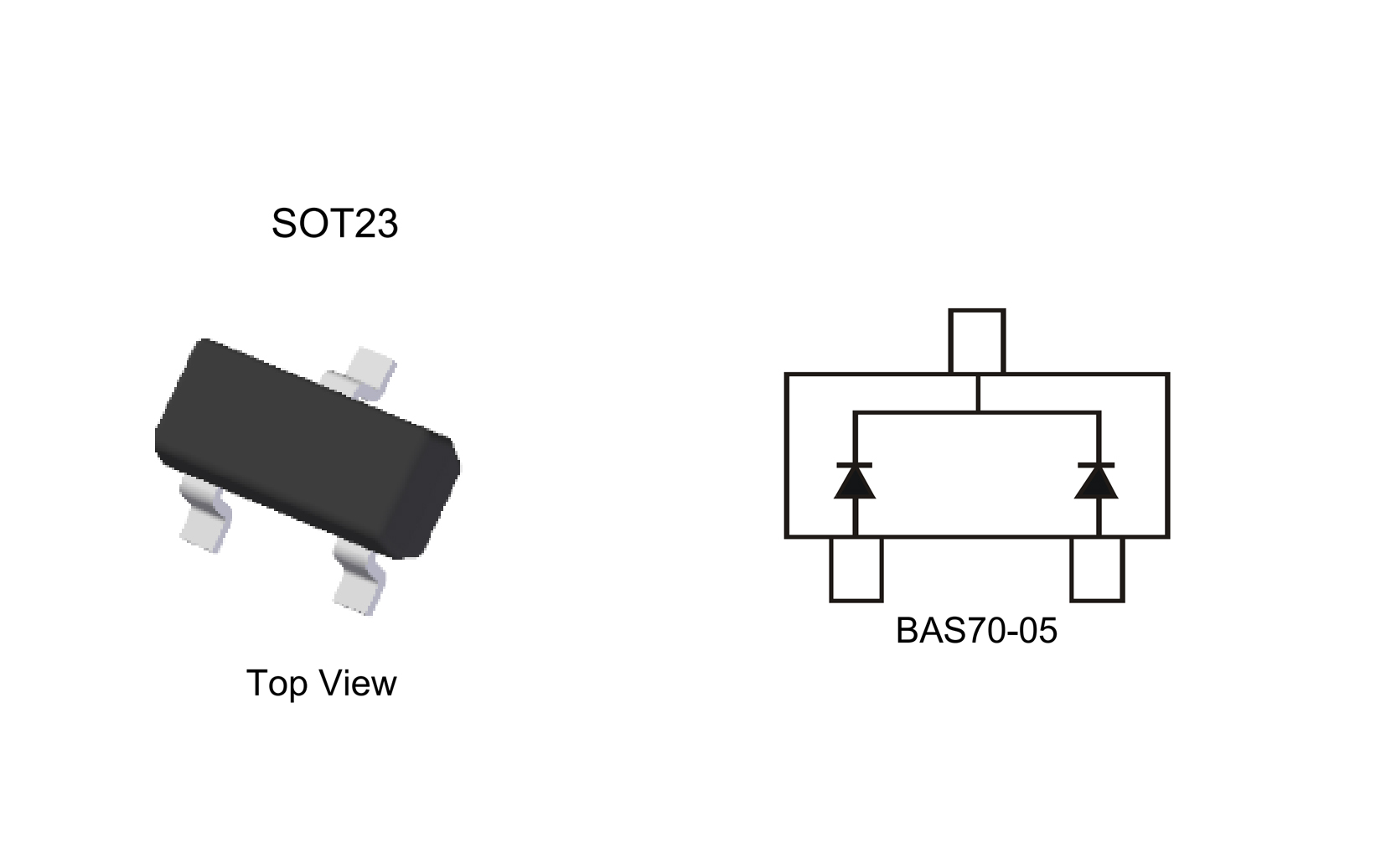

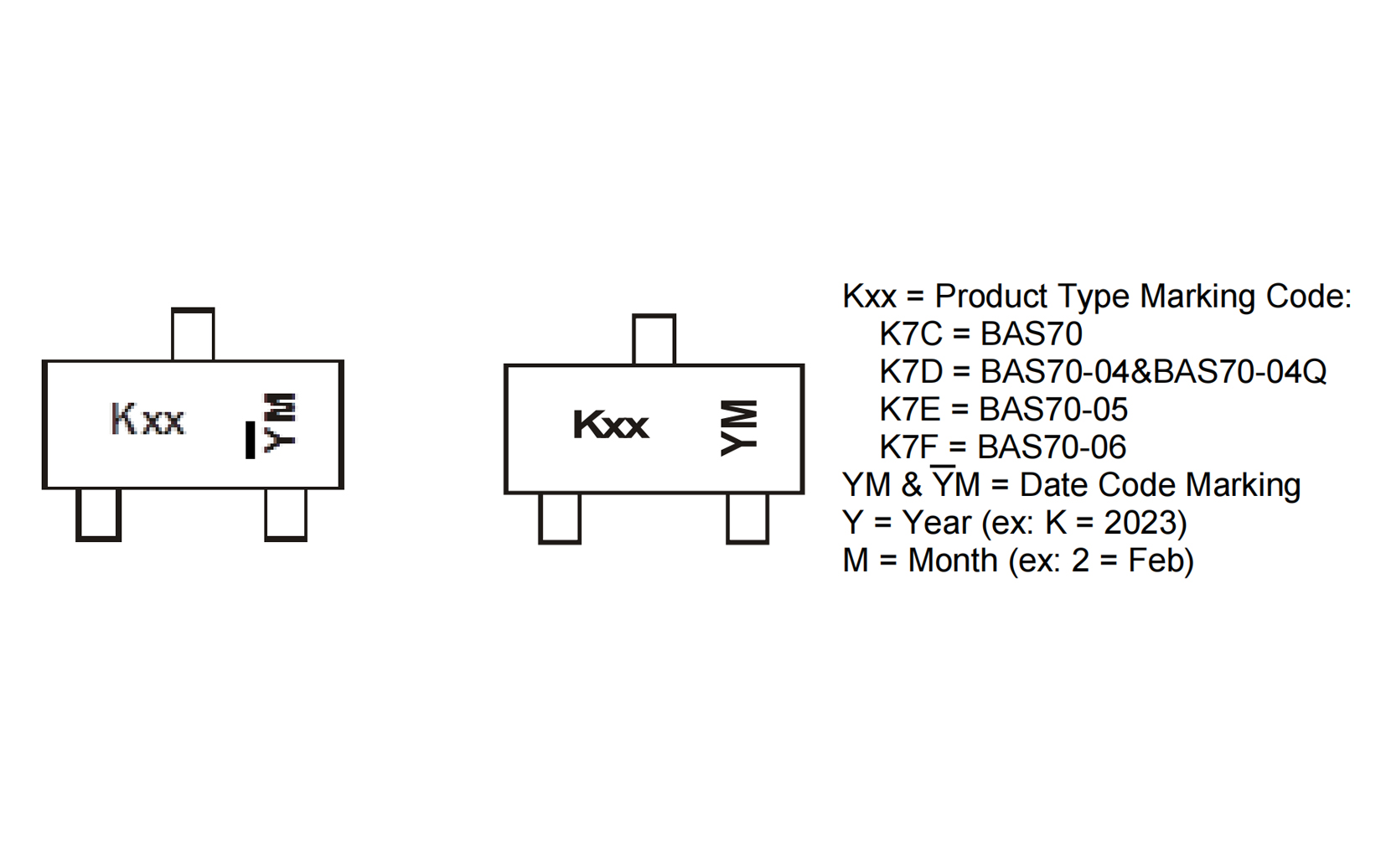

PIN CONFIGUTION
