SGM2581E.pdf
No.10792
? 100mΩ (TYP) High-side N-Channel MOSFET
? Three Current Limit Levels SGM2581E/F/K: 2600 ± 310mA
? Input Voltage Range: 2.5V to 5.5V
? Low 23μA Quiescent Current
? Typical 0.1μA Shutdown Current
? Soft-Start Function
? Thermal Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (FAULT ) with 13ms Filter Eliminates
False Assertions
? Automatic Output Discharge in Shutdown Mode

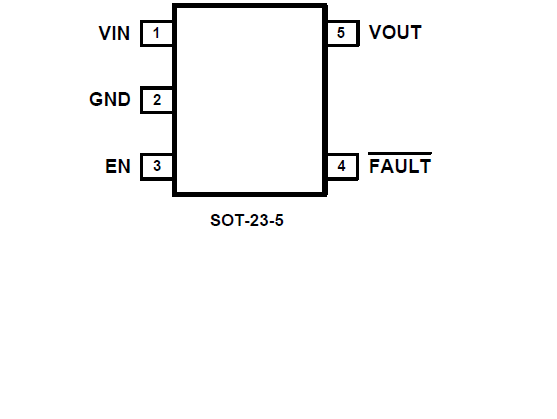

? Available in the Green SOT-23-5 Package

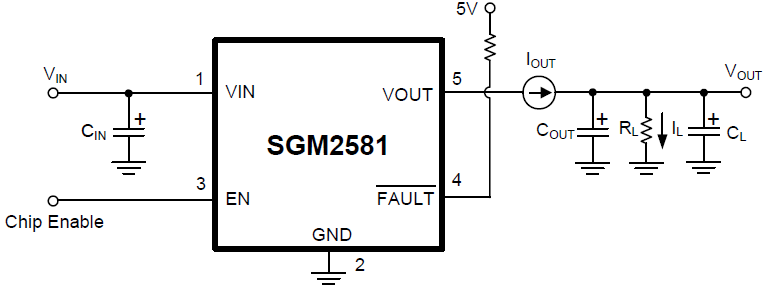

The SGM2581 is an integrated 100mΩ (TYP) power switch for self-powered and bus-powered Universal Series Bus (USB) applications. The SGM2581 is internally current limited and has thermal shutdown that protects device and load from over-current damage. Thermal shutdown shuts off the output MOSFET and asserts the FAULT output if the die temperature exceeds 150℃ until the die temperature drops to 130℃.
This device employs soft-start circuit that minimizesinrush current in applications where highly capacitive loads are employed. An open drain FAULT flag asserts low during overcurrent and thermal conditions after a 13ms blanking time to prevent false reporting. SGM2581 is available in the Green SOT-23-5 package. It is rated over the -40℃ to +85℃ temperature range.
